TSD-17 (TX6 + 6IP) | Master Kit Torque Screwdriver | SLOKY

THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
TSD-17 (TX6 + 6IP)
QTY:
1

Features

  • Let CLICK Tell You When the Torque is Reached!
  • Quick release! Simply pull the bit outward to change new bit.Perfect positioning in the bits.
  • A Secure hold, you’ll never second-guess; a precision torque tool is only as good as its results.
  • With proper testing equipment and system, we can ensure you never have to question our products accuracy and quality.
  • User friendly for CNC cutting tool of machining, turning and milling.

Specification

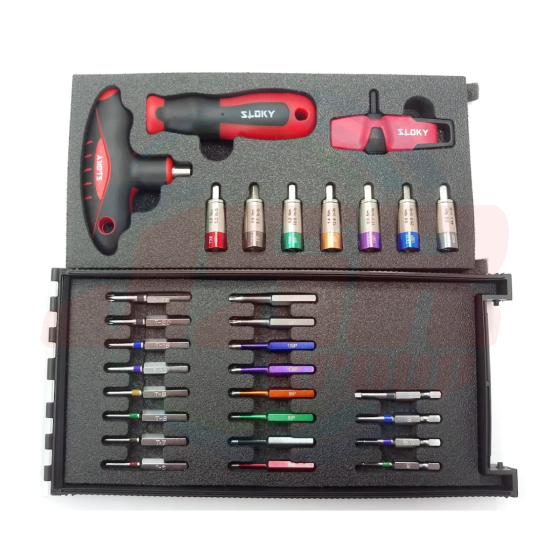

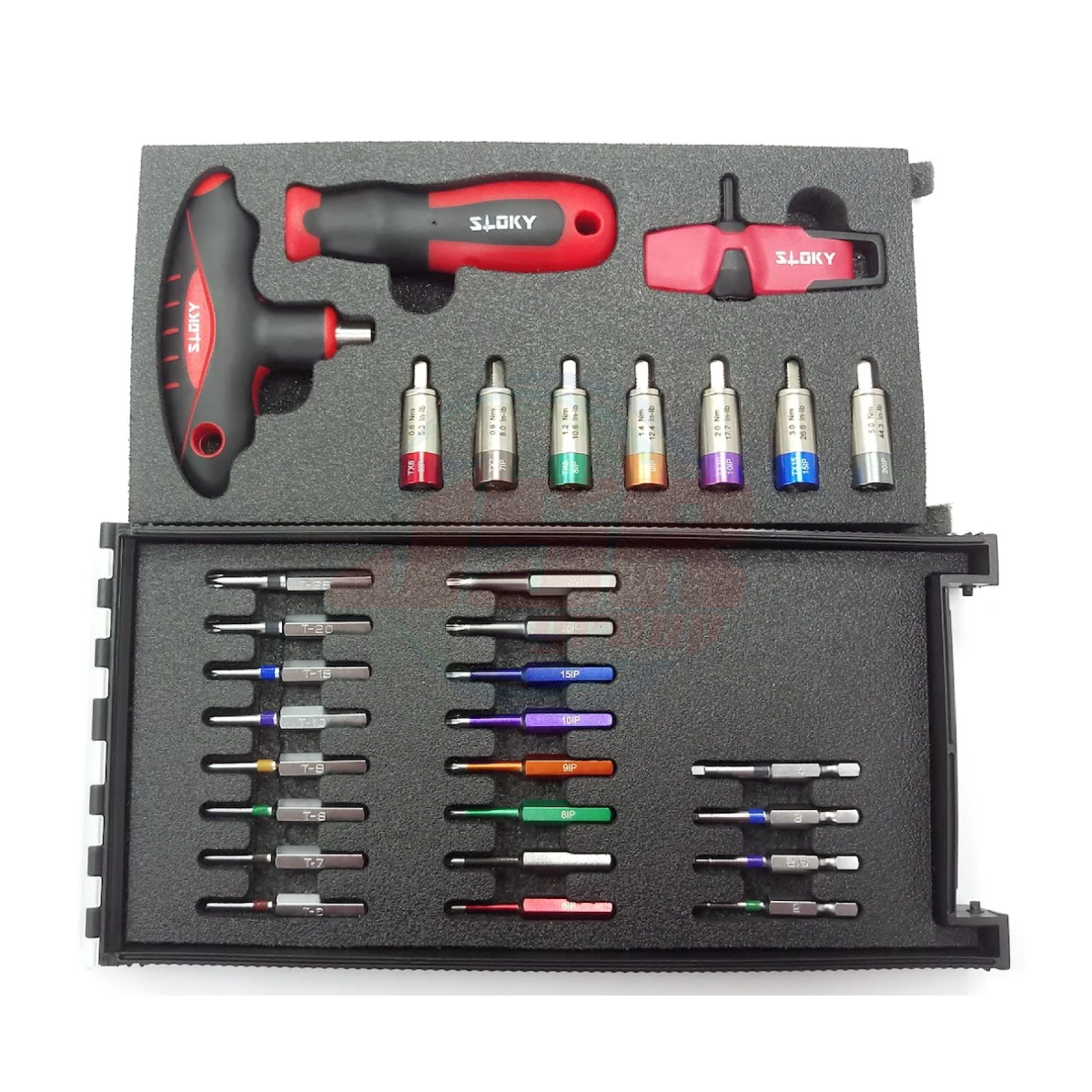

  • TSD-17 contains a Universal, Slim-Flit and T flying handles, 7pcs of torque adapters, 20pcs of 50mm Torx/Torx Plus bits/Hex. The sizes are TX6, TX7, TX8, TX9, TX10, TX15, TX20 and TX25 for Torx, and 6IP, 7IP, 8IP, 9IP, 10IP,15IP, 20IP and 25IP for Torx Plus. The corresponding torques are 0.6, 0.9, 1.2, 1.4, 2.0, 3.0, 5.0 and 5.5Nm, which equal to 5.3, 8.0, 10.6, 12.4, 17.7, and 26.6 In-lb. (Torques are the same for both Torx and Torx Plus systems) The T-type Universal Handle is 2 3/4" X 3/4" X 1 1/2" (L X W X H) and the small soft grip HD handle is 4" in length and 1 1/4" in diameter. The torque adapters which have the industrial standard preset torque are magnetized and color coded. The high alloy steel bits are also magnetized and color coded with the hardness of 58-60 HRC.
TSD-17 (TX6 + 6IP) | Master Kit Torque Screwdriver | SLOKY
TSD-17 (TX6 + 6IP) | Master Kit Torque Screwdriver | SLOKY

Instructions

Universal Handle Instructions

      Large support areas for thumb and index fi nger on the ergonomically shaped handles. The transmission of high torques is thus quite simple. Cylindrical handle shaft for quick turning of screws. User friendly for CNC cutting tool of machining, turning and milling.

ข้อมูลเพิ่มเติม
แบรนด์สินค้า SLOKY
code No. TSD-17
Nm 0.6
Kgfcm 6.1
ln-lb 5.3
size TX6 + 6IP
N.W. 737g



Parts No. Contents
Handle Adapter Bit
Nm Kgfcm In-lb 50mm
TSD-17

TRF

SRBJ-4

TRJ



0.6 6.1 5.3 TX6 + 6IP
0.9 9.2 8.0  TX7 + 7IP
 1.2 12.0 10.6 TX8 + 8IP +H2.0
1.4 14.0 12.4 TX9 + 9IP
2.0 20.4 17.7 TX10+10IP+H2.5
3.0 30.6 26.6 TX15+15IP+H3.0
5.0 51.0 44.3 TX20/25+20/25IP+H4.0
