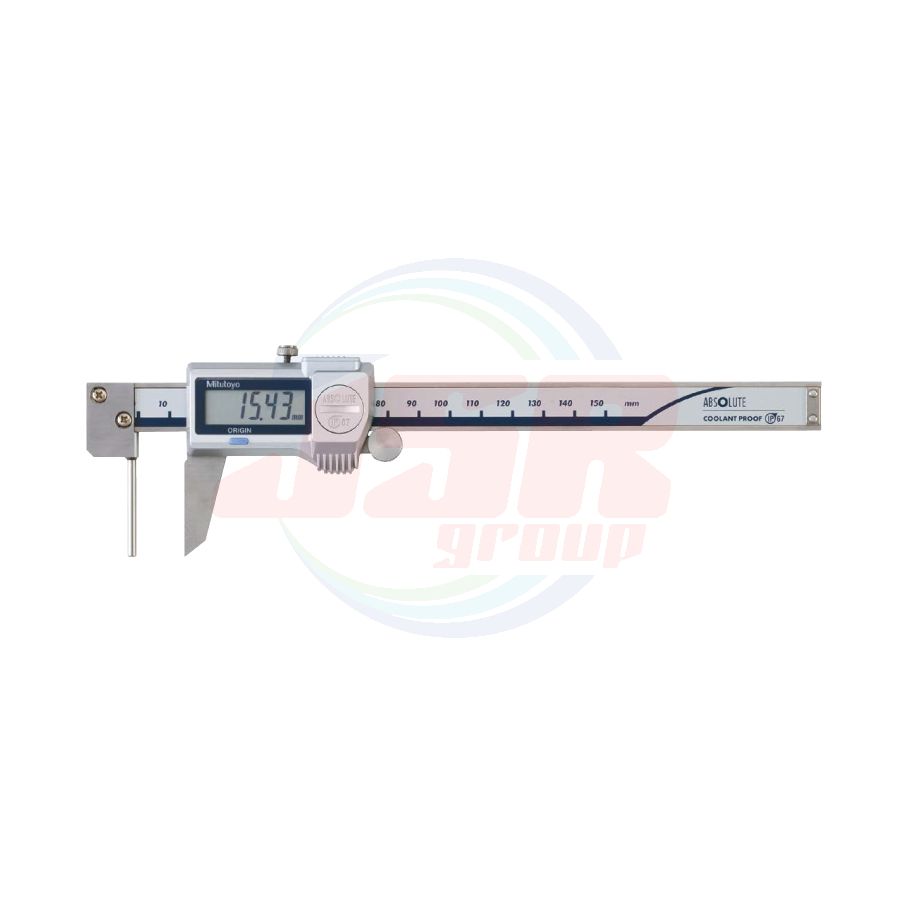

Tube Thickness Caliper SERIES 573 — ABSOLUTE Digimatic Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 11,744.32
พร้อมส่ง
SKU
TUBE-THICKNESS-CALIPER

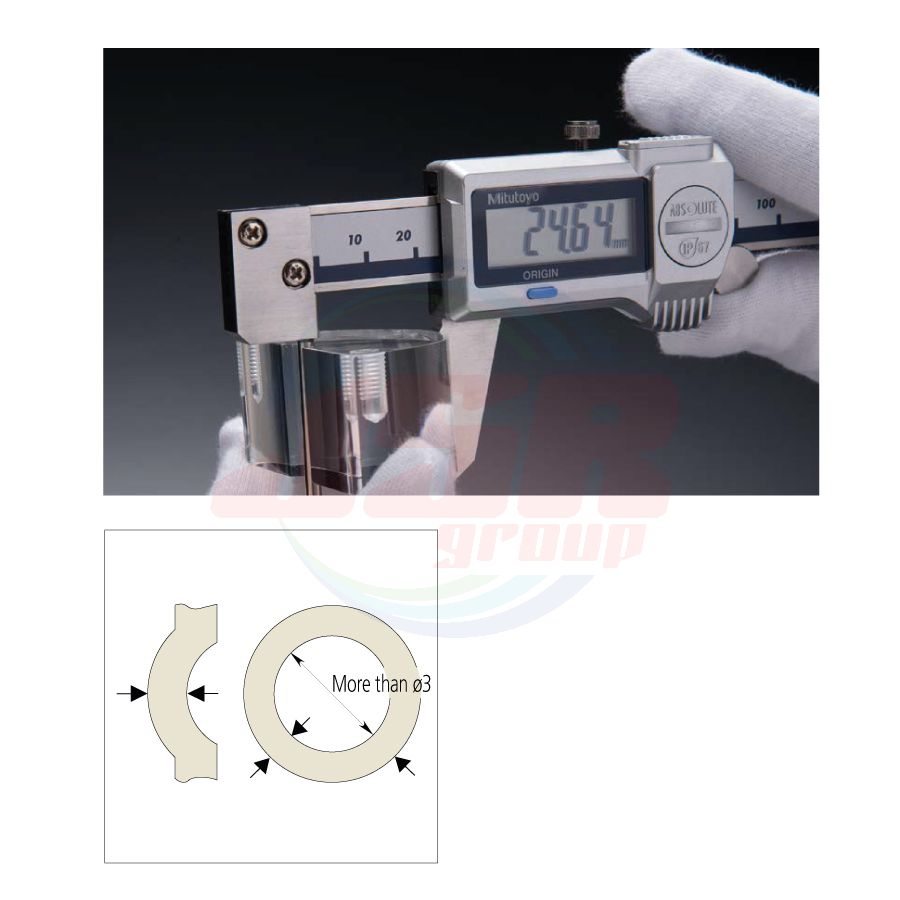

• The beam-mounted jaw is a round bar that facilitates measurements of tube wall thickness.
• Data output function allows integration into statistical process control and measurement systems.
SPECIFICATIONS
Metric ___ Digimatic model
| Order No. | Range (mm) | Resolution (mm) | Maximum permissible error (mm)*² | |
| E MPE | S MPE | |||
| 573-661-20 | 0 - 150 | 0.01 | ±0.05 | - |
| 573-662-20*¹ | 0 - 150 | |||
Inch / Metric ___ Digimatic model
| Order No. | Range | Resolution | Maximum permissible error*³ | |
| E MPE | S MPE | |||
| 573-761-20 | 0 - 6 in/ 0 - 150 mm |
0.0005 in/ 0.01 mm | ±0.002 in/ ±0.05 mm |
- |
• Dust / Water protection level: IP67 (IEC 60529)*3
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 5 years under normal use
• Position detection method: ABSOLUTE electromagnetic induction linear encoder
• Response speed: Unlimited
*1 Without thumb roller
*2 The Partial Surface Contact Error (E MPE) and Shift Error (S MPE) are terms defined by ISO 13385-1:2019.
*3 Rustproofing shall be applied after use if caliper was in contact with coolant.
| แบรนด์สินค้า | MITUTOYO |
|---|
