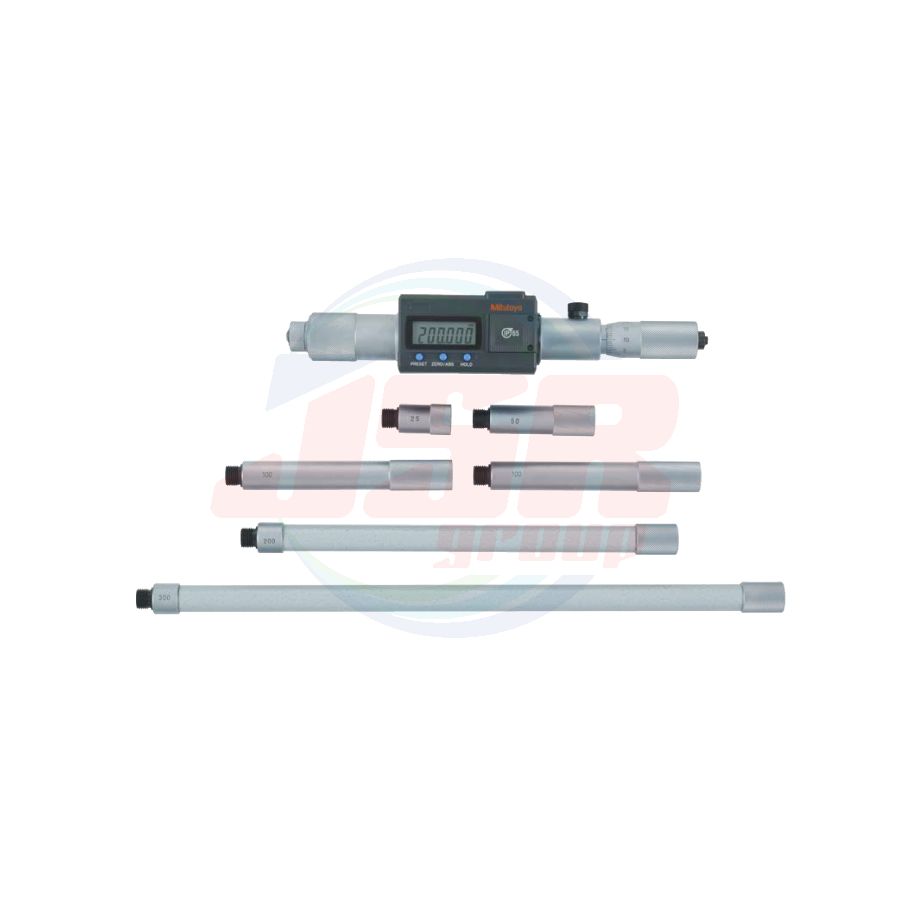

Tubular Inside Micrometers SERIES 337 — Extension-Rod Type | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 21,645.03
พร้อมส่ง
SKU
IMZ-MJ
• Wide range of inside measurements possible by combining extension rods and anvils with the micrometer head.
• A reference gage is necessary for reference point setting.
• Two types of measuring faces are available: with or without carbide tip. (The SERIES 337 is only available with carbide tip)
• An optional reference gage, such as Gauge Block Accessory Set, CERA inside Micro Checker or a setting ring (nominal size 300 mm or less), is required for accurately setting the micrometer before measuring.
SPECIFICATIONS
Metric
| Order No. | Range (mm) | Resolution (mm) |
Spindle feed error* (μm) |
Micrometer head stroke (mm) |
Extension rods | Display unit (mm) |
|
| Qty | Size (mm) | ||||||
| 337-101 | 200 - 225 | 0.001 | 3 | 25 | - | - | 200 - 225 |
| 337-301 | 200 - 1000 | 6 | 25, 50, 100 (2 pcs.), 200, 300 | ||||
| 337-302 | 200 - 1500 | 7 | 25, 50, 100, 200, 300 (3 pcs.) | ||||
Inch / Metric
| Order No. | Range (in) | Resolution | Spindle feed error* (in) |
Micrometer head stroke (in) |
Extension rods | Display unit (in) |
|
| Qty | Size (in) | ||||||
| 337-102 | 8 - 9 | 0.0001 in/ 0.001 mm |
0.00015 | 1 | - | - | 8 - 9 |
| 337-303 | 8 - 40 | 6 | 1, 2, 4 (2 pcs.), 8, 12 | ||||
| 337-304 | 8 - 60 | 7 | 1, 2, 4, 8, 12 (3 pcs.) | ||||
• Power source: SR44 battery (1 pc.), 938882 included as standard (for operational checks)
• Battery life: Approx. 1.2 years under normal use
• Position detection method: Electromagnetic induction-type rotary encoder
* "Spindle feed error” refers to the difference between the maximum and minimum indication error values within the measuring range of the micrometer head
| แบรนด์สินค้า | MITUTOYO |
|---|---|
| Digital/Analog | Digital |
