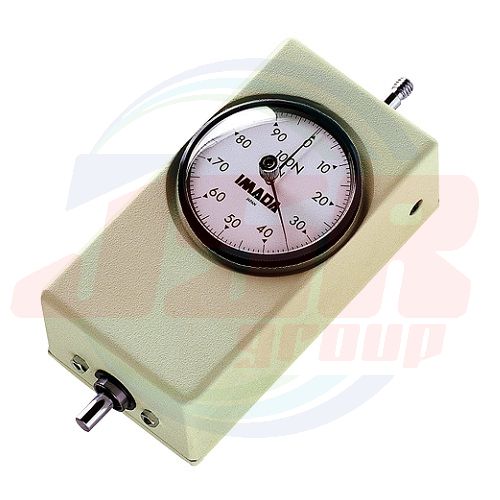

UK Series (lbf unit) | Built-in Use Model Mechanical Force Gauge | IMADA

Feature

• Easy handling with less risk of malfunctions or glitches caused by external circumstances such as noise or static electricity due to the rugged mechanical construction
• Ideal for integration into facilities due to the compact design
• Selectable from 2 types to meet your measurement needs: UKT series (for tension) and UKK series (for compression)
• Shows real time value and peak value simultaneously with memory pointer
• Assists accurate measurement with tare ring to adjust zero

Specifications

* It is not suitable for breaking test with large impact or test with continues vibration due to its spring structures.

* 1 120 lines for 30N, 300N, 3K, 30K, 30lb.

* 2 The weight is depending on the range.

Standard tension attachments for UKT
Small hook A-1(S-1)	Flat tip A-2(S-2)	Conical tip A-3(S-3)	Chisel tip A-4(S-4)

* Force gauges with capacities from 100N or less come with aluminum made attachments (A-type), 200N to 1000N come  with steel made attachments (S-type).

Standard compression attachments for UKK
Notched tip A-5(S-5)	Extension shaft A-6(S-6)	Large hook A-7(S-7)	Y hook A-8(S-8)

* Force gauges with capacities from 100N or less come with aluminum made attachments (A-type), 200N to 1000N come  with steel made attachments (S-type).

Model lists (N unit)
Model		Capacity	Resolution	Thread	Standard attachments
					UKT	UKK
UKT-5lb	UKK-5lb	5lbf	0.05lbf	M6	A-1, A-6 A-7, A-8	A-2～A-6
UKT-10lb	UKK-10lb	10lbf	0.1lbf
UKT-20lb	UKK-20lb	20lbf	0.2lbf
UKT-30lb	UKK-30lb	30lbf	0.25lbf		S-1, S-6 S-7, S-8	S-2～S-6
UKT-50lb	UKK-50lb	50lbf	0.5lbf

* International models are not able to sell in Japan due to the Measurement Act.
