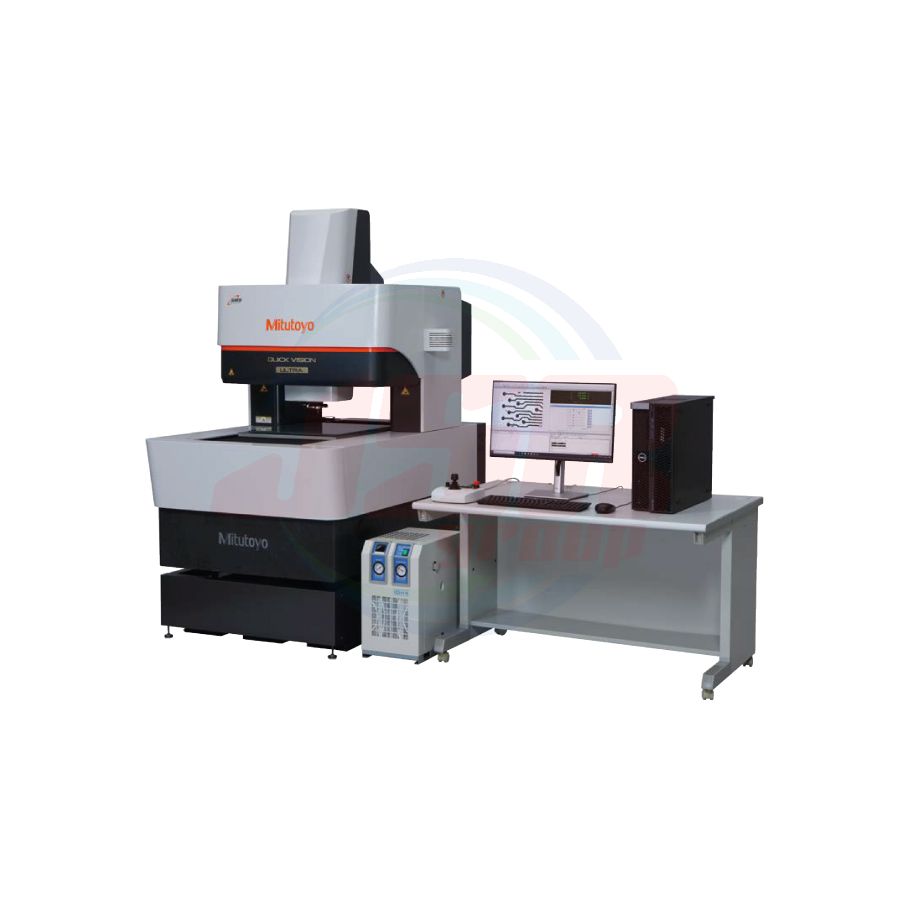

QV ULTRA
Ultra-high Accuracy CNC Vision Measuring System
• Ultra-high accuracy CNC vision measuring machine with measuring accuracy of EUX/ EUY, MPE (0.35 + 1.3L/1000) μm.
• Our proprietary high-resolution (0.01 μm) and high-accuracy low-expansion glass scales are used on the X, Y and Z axes.
• The main unit utilizes a highly rigid moving Y axis table with a fixed bridge. The base is made of high stability granite.
SPECIFICATIONS
| Model name | QV ULTRA | |||
| Model code | QV-U404P1L-E | QV-U404T1L-E | ||
| Main unit | ||||
| Measuring range (X×Y×Z) | 400×400×200 | |||
| External dimensions (W×D×H) (Including dedicated stand) [mm] |
1172×1736×1910 | |||
| Stage glass (W×D) [mm] | 493×551 | |||
| Main unit mass (Including dedicated stand) [kg] | 2150 | |||
| Vision measuring accuracy [µm]*1 |
Vision | EUX / EUY, MPE | ① (0.35 + 1.3L / 1000) / ② (0.35 + 1.8L / 1000) | |
| EUXY, MPE | ① (0.5 + 2L / 1000) / ②(0.5 + 2.5L / 1000) | |||
| EUZ, MPE | ① (1.5 + 2L / 1000) / ② (1.5 + 3.5L / 1000) | |||
| Optical magnification | 5x objective (QV-HR5x or QV-5x) and middle magnification | |||
| Resolution of scale [µm] | 0.01 | |||
| Operating temperature | Ambient temperature*² | ① 20±2 °C / ② 19 to 24 °C | ||
| Temperature variation | 0.5 ˚C/ 1H and 1 ˚C/ 24H | |||
| Maximum stage loading [kg]*³ | 40 | |||
| Imaging device | B&W CMOS digital camera | |||
| Illumination unit | Stage light | White LED | ||
| Coaxial light | White LED | |||
| PRL | White LED | |||
| Observation unit*⁴ | Programmable power turret 1x, 2x, 6x, (12x)*⁵ | |||
| Tracking Auto Focus device | – | ✓ | ||
| Air supply | Pressure | 0.4 MPa*⁶ | ||
| Required air flow rate | 300 L/min (ANR) | |||
| Thermal compensation function | Automatic | |||
*1 L: arbitrary measuring length (unit: mm)
*2 The guaranteed accuracy depends on ambient temperature.
*3 An excessively biased or concentrated load is excluded.
*4 Programmable power turret 1x, 2x, 4x, 6x model is available by special order. Digital magnification function allows 8x and 12x in addition to 1x, 2x, 4x, 6x. 6 steps of magnification are available in total.
*5 The value in parenthesis is for digital magnification change.
*6 Air supply pressure to be in range 0.5 to 0.9 MPa.
