Various back covers | MITUTOYO

เป็นคนแรกที่รีวิวสินค้านี้

ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 95.33

*ราคายังไม่รวม VAT

พร้อมส่ง

SKU

BACK-COVER

QTY:

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

Selection table for various back covers

• If the back cover of water-proof model is replaced, the water resistance will not be guaranteed.
• When mounting a back cover to lightweight type Series (297*AB), separately prepare 4 fixing screws (546666 Self-tapping screw only for plastic). Do not apply a tightening torque of more than 20 N·cm in order to avoid stripping the screw threads.

Dial Indicators

Metric

	Bezel diameter	31 mm	36 mm	40 mm	40 mm (W/D proof models	55.6/57 mm	55.6 mm (W/D proof models	57 mm (W/D proof models)	78/92 mm
Back Covers	Lug-on-Center Back	190561	137905	101210	101210	101040		21AZB230	100691
	Flat Back	191559	137906	101211	136872	101039	192910	21AZB231	100836
	Magnetic Back	—				900928			900929
	Back with Offset Lug	—				101167			-
	Back with Post	—		193172		101169			-
	Back with Screw Mount	—		193173 (M6×1)		136023 (M6×1)			-
	Adjustable Back	—		136025 (M6×1)		136026 (M6×1)			-
	Back with Adjustable Bracket	—				901963			-

Digimatic Indicators

	Series /model	•ID-FNX Series (12.7 mm models) •ID-CNX Series (12.7 mm models) •ID-CAX Series •ID-SX Series	•ID-FNX Series (25.4, 50.8 mm models)* •ID-CNX Series (25.4, 50.8 mm models)*	•ID-CJX Series •ID-SPX Series
	Type	ISO/JIS	ISO / JIS	SO / JIS
Back Covers	Lug-on-Center Back	101040	101040	21AZB230
	Flat Back	101039	—	21AZB231
	Magnetic Back	900928
	Back with Offset Lug	101167
	Back with Post	101169
	Back with Screw Mount	136023 (M6×1)	136023 (M6×1)	136023 (M6×1)
	Adjustable Back	136026 (M6×1)	136026 (M6×1)	136026 (M6×1)
	Back with Adjustable Bracket	901963

* For the ID-CNX, ID-FNX Series (25.4, 50.8 mm/1, 2 inch models), attach the back covers as shown below.

More Information

ข้อมูลเพิ่มเติม
แบรนด์สินค้า	MITUTOYO

Dimension

Description

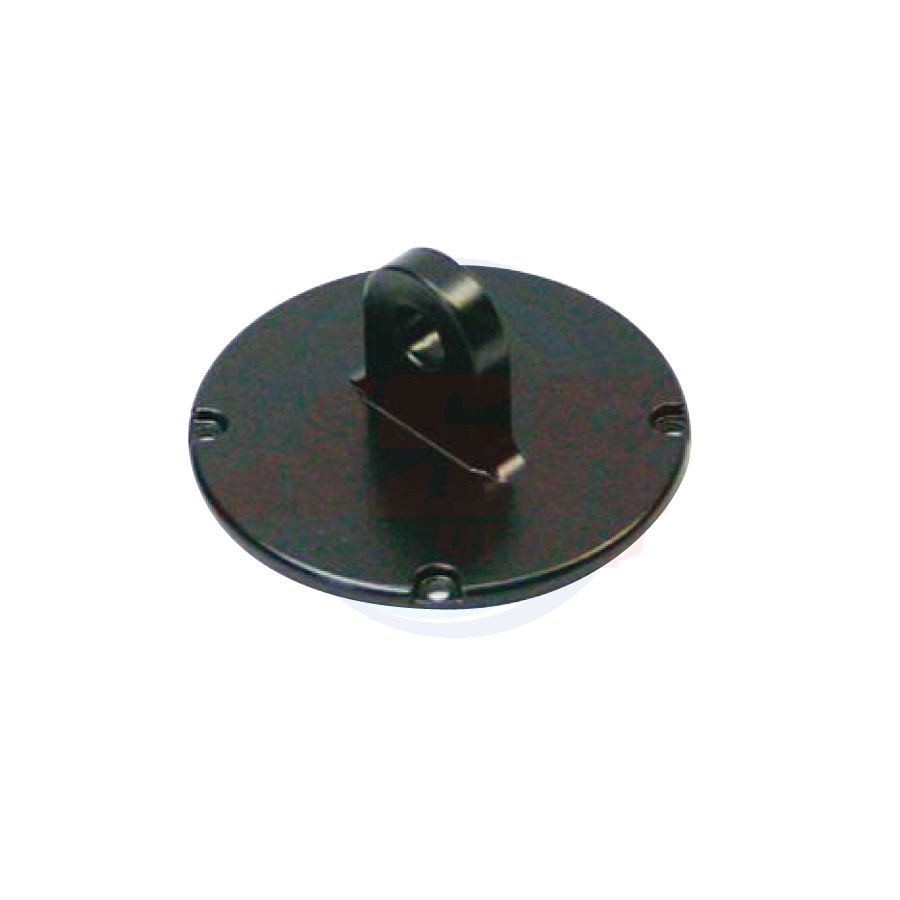

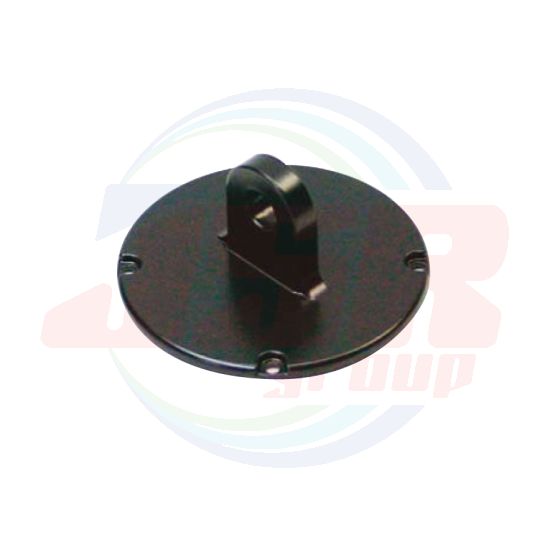

Lug-on-Center Back Clamped by securing the lug section

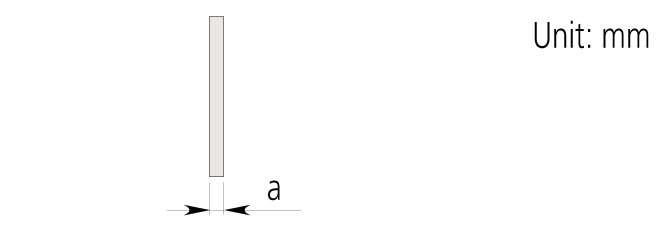

Flat Back Cannot be clamped by means of the back cover.

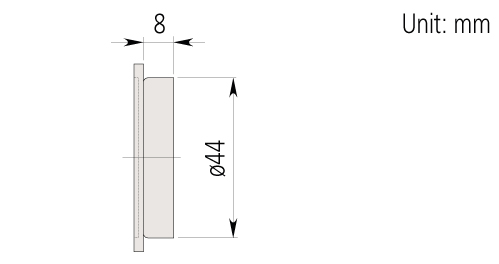

Magnetic Back (Magnetic force: 10 N) Can be easily attached to the flat surfaces of iron plates or machine tools with a magnet.

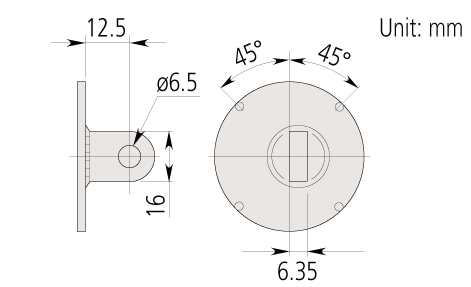

Back with Offset Lug One side of the lug section is on the center line.

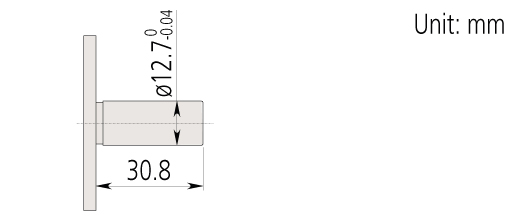

Back with Post Used by clamping the ø12.7 pillar section.

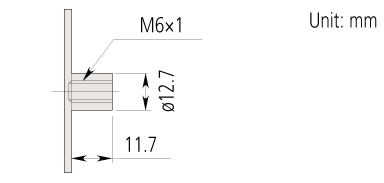

Back with Screw Mount Clamped with a screw with its thread as a guide.

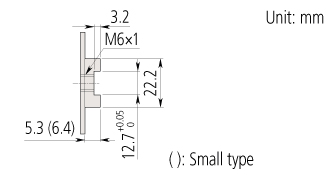

Adjustable Back Can be slid with the groove as a guide. Clamped with a screw.

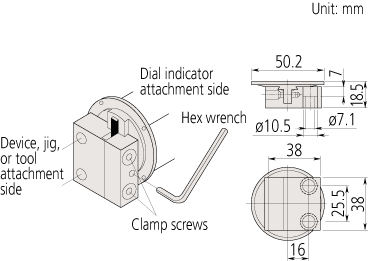

Back with Adjustable Bracket Can be attached to a device, jig, or tool and easily fine-tuned vertically with a hex wrench. (Travel range: Approx. 20 mm) Attachment procedure 1. Attach only the back cover with rack to the dial indicator. 2. Attach the main unit to a device, jig, or tool with M6 hexagon socket head cap screws. 3. Insert the back cover with rack into the main unit. 4. Use the supplied hex wrench (3/32”) to finetune and fix with clamp screws.
