Vernier Height Gage SERIES 506, 514 — Standard Height Gage with Adjustable Main Scale | MITUTOYO
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 6,349.38
พร้อมส่ง
SKU
1MIT-HS

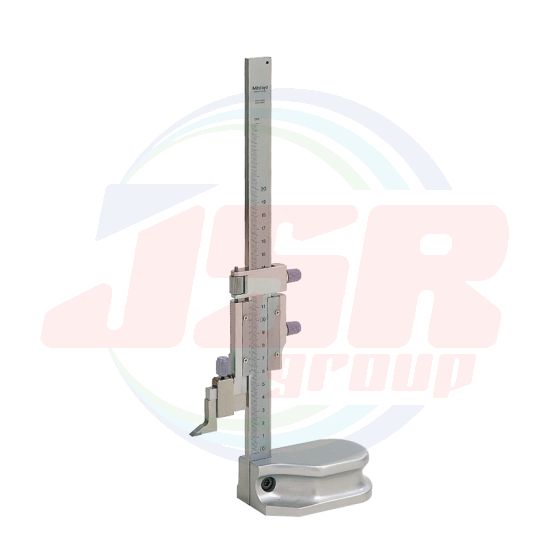

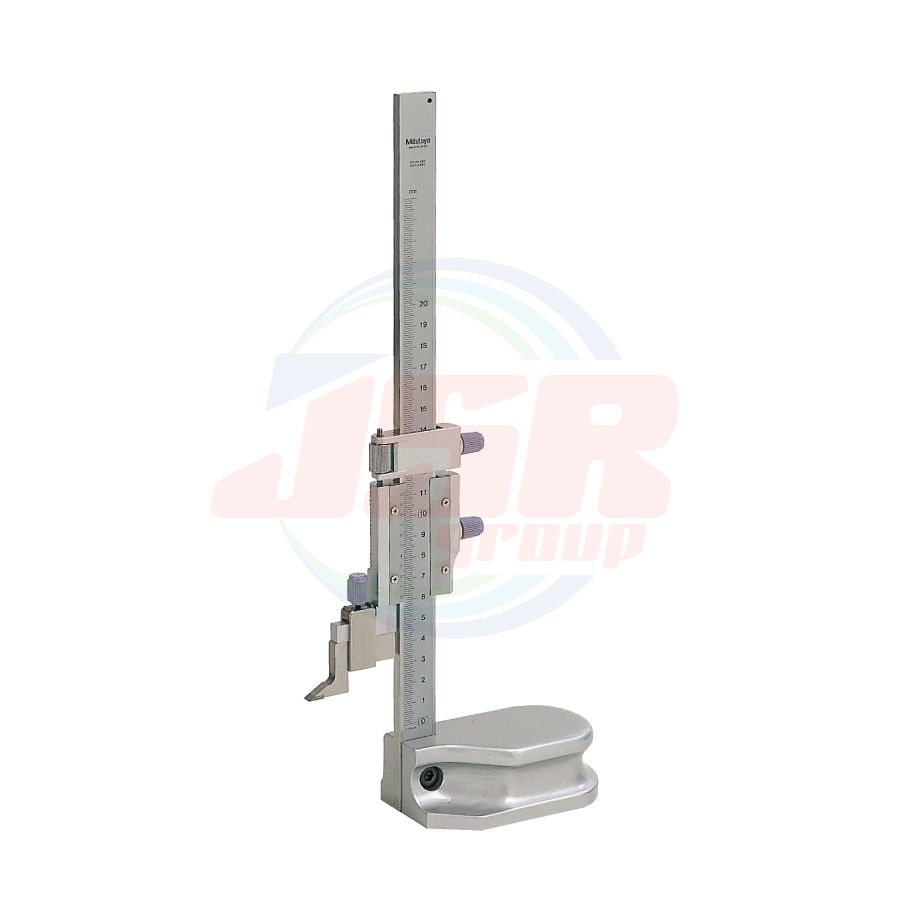

• Standard Vernier height gage. Fits comfortably in the hand and moves easily on the surface plate.
• Scriber is provided as a standard accessory.
• When installing a dial indicator or dial test indicator on 506-207, ensure that the overall system can keep a good weight balance to ensure reliable measurement.
• The main scale slides and clamps within the column for quick and convenient zerosetting. (only for the 514 Series)
SPECIFICATIONS
Metric
| Order No. | Range (mm) |
Minimum reading (mm) |
Scale adjustment (mm) |
Fine feed (mm) |
Maximum permissible error E MPE (mm)* |
Height (mm) |
Mass (kg) |
| 506-207 | 0 - 200 | 0.02 | - | 4 | ±0.03 | 341 | 1.4 |
| 514-102 | 0 - 300 | 15 | ±0.04 | 525 | 3.1 | ||
| 514-104 | 0 - 450 | ±0.05 | 675 | 3.4 | |||
| 514-106 | 0 - 600 | 7 | 870 | 7.4 | |||
| 514-108 | 0 - 1000 | 25 | 6 | ±0.07 | 1340 | 20 |
Inch / Metric
| Order No. | Range (in) |
Minimum reading | Scale adjustment (in) |
Fine feed (in) |
Maximum permissible error E MPE (in)* |
Height (mm) |
Mass (kg) |
| 506-208 | 0 - 8 | 0.001 in/0.02 mm | - | 0.16 | ±0.001 | 341 | 1.4 |
| 514-103 | 0 - 12 | 0.6 | ±0.002 | 525 | 3.1 | ||
| 514-105 | 0 - 18 | 675 | 3.4 | ||||
| 514-107 | 0 - 24 | 0.27 | 870 | 7.4 | |||
| 514-109 | 0 - 40 | 1 | 0.24 | ±0.003 | 1340 | 20 |
• Reading magnifier (optional): 514-102, 104, 106: 07GZA003, 514-108: 07GZA015
* Maximum permissible error, E MPE is the term (notation) used in JIS B 7517: 2018, revised based on ISO/TR 14253-6: 2012.
| แบรนด์สินค้า | MITUTOYO |
|---|

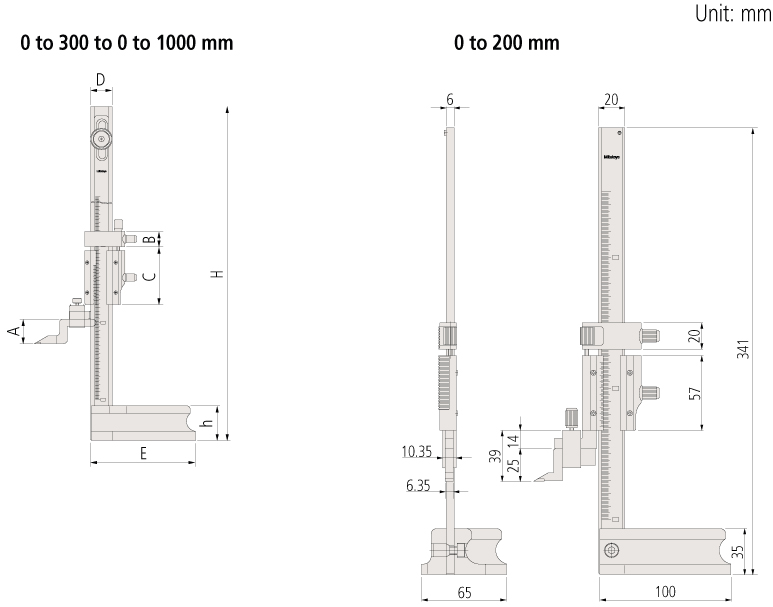

| Range (mm) | A | B | C | D | E | H | h |
| 0 - 300 | 32 | 20 | 70 | 28 | 135 | 525 | 45 |
| 0 - 450 | 675 | ||||||
| 0 - 600 | 24 | 85 | 35 | 180 | 870 | 54 | |
| 0 - 1000 | 42 | 30 | 110 | 45 | 250 | 1340 | 65 |
