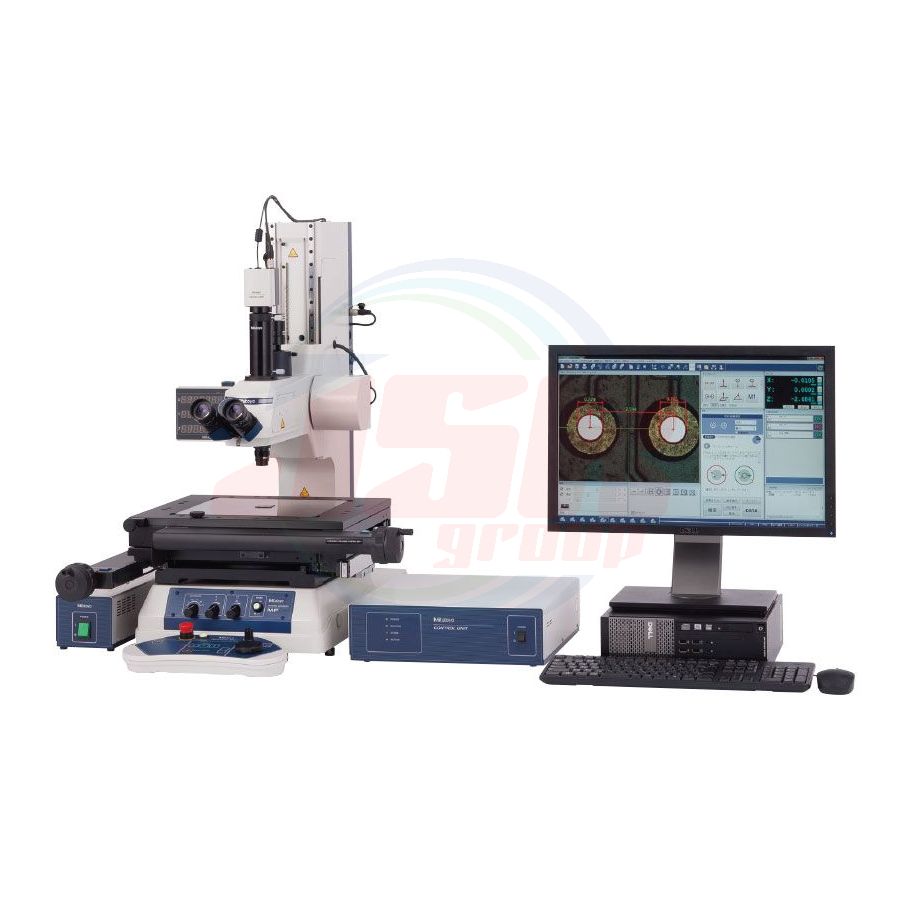

Vision Unit | Image System Retrofit for Microscopes | MITUTOYO

Greatly Improved Workability by Data Processing Plus Image Measurement

Improved measurement reproducibility and efficiency

The vision unit allows anyone to perform quicker and more repeatable detection of an edge with just one click, resulting in much better reproducibility of dimension measurement among a group of operators. Also, using the vision unit eliminates the need for burdensome workpiece orientating and measuring-point detection with cross-hairs, thus allowing quicker inspection of dimensions.

More User-friendly Manual Measurement Environments Available

Wide-field measurement

Upsizing of the image sensor has made the view approximately 40% wider than previously in both the X and Y directions, thus allowing concurrent observation of the whole extent of many more target areas than before.

Digital zoom function

A normal 0.4X display image can be magnified to a 1X or 2X image by merely clicking the corresponding menu icon.
The image can be measured in fine detail using the digital zoom display.

Auto-brightness control function (exclusive to MF/MF-U Series)

The light intensity of transmitted/reflected illumination used on a microscope can now be controlled via software. There is no hassle adjusting the illumination during repeat measurements, since the level is reproduced according to the setting selected during creation of the part program. Even in the measurement of a workpiece that requires variations in illumination, consistently accurate edge detection is ensured. This enhances the efficiency of repeated measurements. This function can be used even when an external lighting system, such as a ring fiber or an LED ring (either one is optional), is connected.
Note: Only for Measuring Microscopes MF/MF-U Series
