VUPO (Long shank, for Metric Threads) | Z-PRO Coated Spiral Pointed Taps | YAMAWA

ราคาต่ำสุด THB 0.00 THB 0.00

พร้อมส่ง

SKU

YAM-VUPO Long shank, for Metric Threads

Product Features

Durability is improved by premium powder HSS and special coating.
Chip ejection efficiency is improved and cutting resistance is reduced by the unique cutting edge shape, achieving a good internal thread and long tool life.

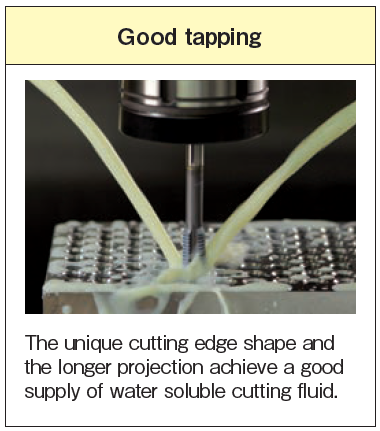

Proper tool projection length is secured, achieving a good supply of water soluble cutting fluid.
This is most suitable for tapping with water soluble cutting fluid.

Tapping Data
Tapping Conditions [M10×1.5]

Workpiece Material	SUS304
Tapping Speed	10m/min
Machinery Type	Machining center, vertical type
Tapping Fluid	Water soluble cutting fluid

Tapping Data
Tapping Conditions [M10×1.5]

Workpiece Material	SUS304
Tapping Length	20mm（2D）
Tapping Speed	20m/min
Machinery Type	Machining center, vertical type
Tapping Fluid	Water soluble cutting fluid

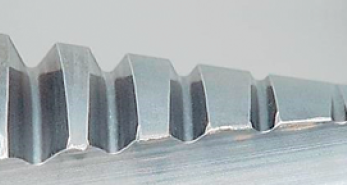

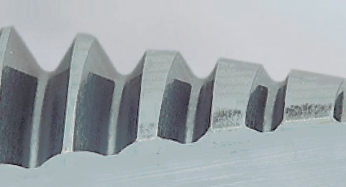

	VUPO	Competitor's tap
After Tapping of 560 Holes

Compatible with a wide range of work materials
This is compatible with a wide range of steel work materials, including general structural steel, carbon steel, and alloy steel.

Specification

Tapping Speeds depending on Materials

For long shank type, the recommended cutting speed is 30% less than the above.

Segment：1E

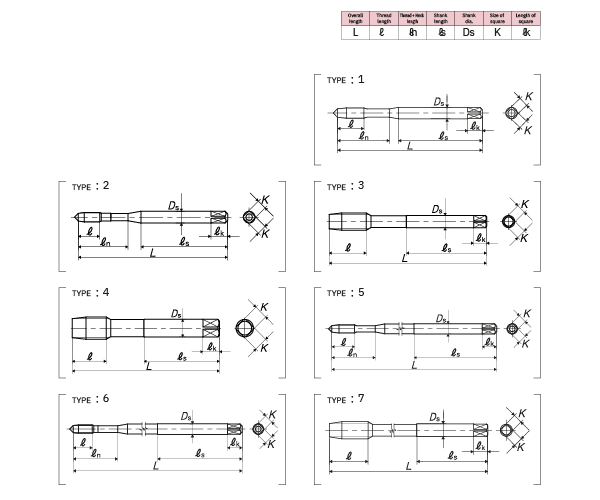

Size	Class	Code	Chamfer	L (mm)	ℓ (mm)	ℓn (mm)	ℓs (mm)	Ds (mm)	K (mm)	ℓk (mm)	No. of flutes	TYPE
Long shank, for Metric Threads
M3×0.5	P2	2102101035	5P	100	9	18	32	4	3.2	6	3	5
M3×0.35	P2	2102101036	5P	100	6.5	18	32	4	3.2	6	3	6
M4×0.7	P3	2102101042	5P	100	11	21	36	5	4	7	3	5
M4×0.5	P2	2102101043	5P	100	9	21	36	5	4	7	3	6
M5×0.8	P3	2102101049	5P	100	13	25	40	5.5	4.5	7	3	5
M5×0.5	P2	2102101051	5P	100	9	25	40	5.5	4.5	7	3	6
M6×1	P3	2102101055	5P	100	15	30	45	6	4.5	7	3	5
M6×0.75	P2	2102101056	5P	100	15	30	45	6	4.5	7	3	5
M6×0.5	P2	2102101057	5P	100	9	30	45	6	4.5	7	3	6
M8×1.25	P3	2102101064	5P	150	19	-	46	6.2	5	8	3	7
M8×1	P3	2102101065	5P	150	19	-	46	6.2	5	8	3	7
M10×1.5	P3	2102101078	5P	150	23	-	51	7	5.5	8	3	7
M10×1.25	P3	2102101079	5P	150	23	-	51	7	5.5	8	3	7
M10×1	P3	2102101080	5P	150	23	-	51	7	5.5	8	3	7
M12×1.75	P4	2102101088	5P	150	26	-	56	8.5	6.5	9	3	7
M12×1.5	P3	2102101089	5P	150	26	-	56	8.5	6.5	9	3	7
M12×1.25	P4	2102101090	5P	150	26	-	56	8.5	6.5	9	3	7
M14×2	P4	2102101100	5P	150	26	-	56	10.5	8	11	3	7
M14×1.5	P3	2102101102	5P	150	26	-	56	10.5	8	11	3	7
M16×2	P4	2102101114	5P	150	26	-	56	12.5	10	13	3	7
M16×1.5	P3	2102101116	5P	150	26	-	56	12.5	10	13	3	7
