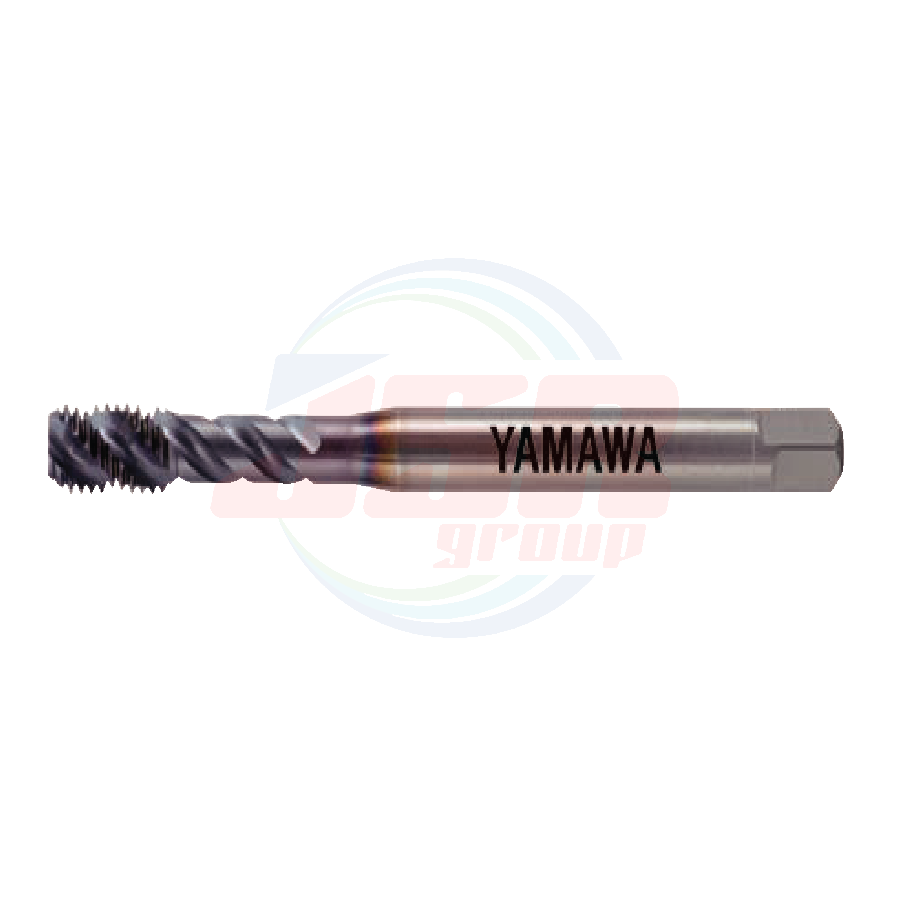

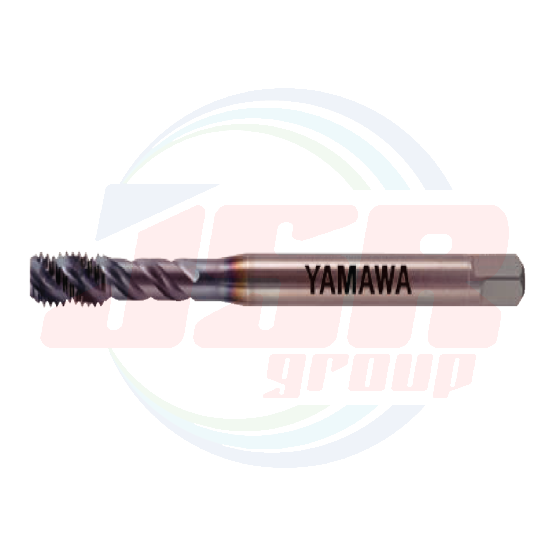

VUSP4×0.7-1.5P (1103101042) | Z-PRO Coated Spiral Fluted Taps 1.5P| YAMAWA
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
1103101042
QTY:
10
- The chamfer length is 1.5 pitches, making it ideal for machining blind holes where there is little room between the bored hole depth and the full thread length.
- Durability is improved by premium powder HSS and special coating.
- Chip ejection efficiency is improved and cutting resistance is reduced by the unique cutting edge shape, achieving a good internal thread and long tool life.
- Proper tool projection length is secured, preventing chips from interfering with the holder.
- This is most suitable for tapping with water soluble cutting fluid.
| File PDF |
| แบรนด์สินค้า | YAMAWA |
|---|---|
| Order No. | VUSP4X0.7-1.5P (1103101042) |
| Model | VUSP 1.5P |
| Size | M4X0.7 |
| Class | P2 |
| Chamfer | 1.5P |
| Overall length (L) | 63 |
| Thread length (ℓ) | 7 |
| Thread + Neck length (ℓn) | 21 |
| Shank length (ℓs) | 36 |
| Shank dia. (Ds) | 5 |
| Size of Square (K) | 4 |
| Length of square (ℓk) | 7 |
