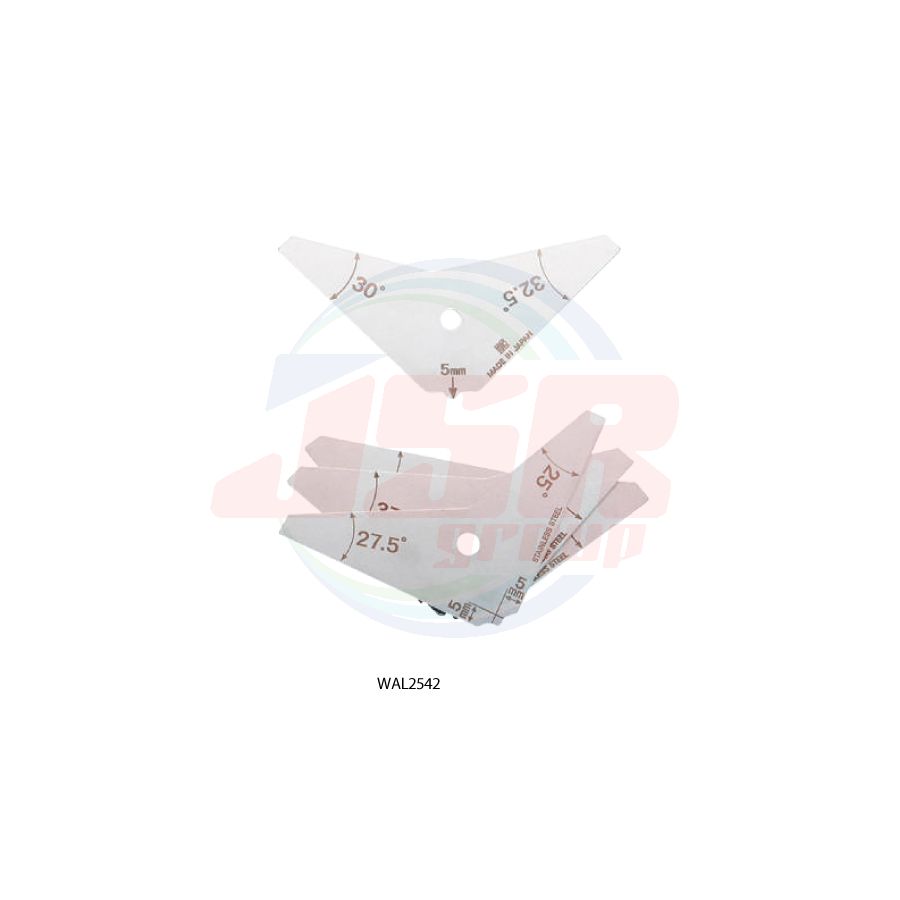

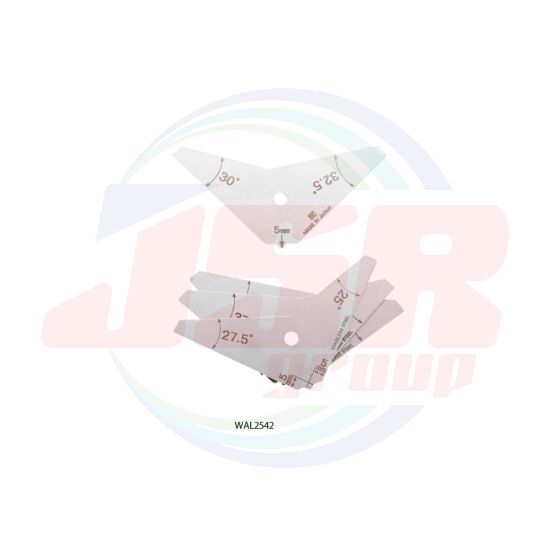

ANGLE LIMIT GAUGE
Essential for welding process.
This is a limit gauge for measuring joint gap angle and butt joint gap angle.
USE

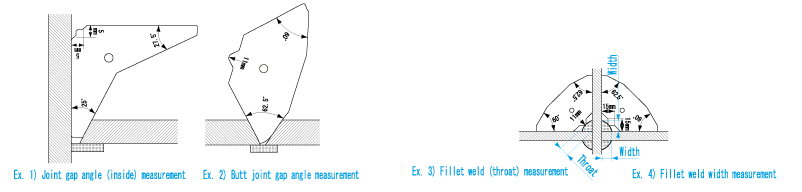

● For measuring bevel angle of T-joint（ interior angle）, bevel angle of facing joint
（interior angle）, leg length（ height）, and throat thickness of fillet weld
MATERIAL
●Stainless steel
FEATURES
● I ndication of size limit for easy judgement（ angle step by 2.5°, throat thickness step by 1mm）
● The leg length is the allowable limit dimension at the measured throat thickness dimension
● The most frequently used dimensions are selected as the gauge sizes
● Provided with plastic case and ball chain
| Model No. | WAL2542 | WAL4562 | |||||||
| Blank No. | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | |
| Outline Dimension （mm） |
Overall width | 92 | 92 | ||||||
| Overall height | 46 | 45 | 44 | 43 | 43 | 44 | 45 | 46 | |
| Plate thickness | 1.5 | 1.5 | |||||||
| Material/ Finish | SUS304 /barrel semi-gloss finish | SUS304/ barrel semi-gloss finish | |||||||
| Measurement Value Indication |
Angle degree （Both side) |
25° | 30° | 35° | 40° | 45° | 50° | 55° | 60° |
| 27.5° | 32.5° | 37.5° | 42.5° | 47.5° | 52.5° | 57.5° | 62.5° | ||
| Throat thickness（ Front） | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | |
| Leg Length（Back） | 5 | 7 | 8 | 10 | 11 | 13 | 14 | 15 | |
| Accuracy | Fillet weld･Reinforcement±0.1mm/ Angle ±1° | Fillet weld･Reinforcement±0.1mm/ Angle ±1° | |||||||
| Order No. | Model No. | Weight |
| 007550 | WAL2542 | 100g |
| 007551 | WAL4562 | 120g |
