Wedge MISCELLANEOUS NON-SPARKING | EGA MASTER
ราคาต่ำสุด
THB 0.00
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
EGA-pbhk
QTY:
0

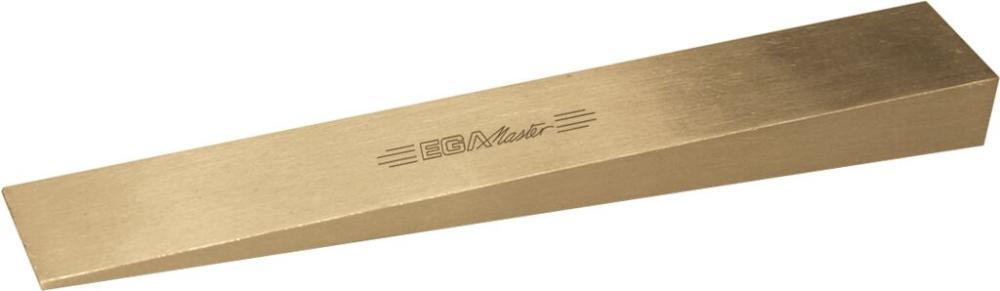

EGA Master’s non-sparking wedges are the ideal solution for applications in potentially explosive environments, providing maximum safety.
1.The wedge is a mechanism that allows the distribution of force (or energy) in different directions. These generated forces are used to separate objects (cutting tools), to create friction, or to keep the wedge fixed to the objects it is in contact with (doorstop, fork, nail...).
2. The hardness is 311-408 Brinell (Cu-Be) and 241-311 Brinell (Al-Bron).

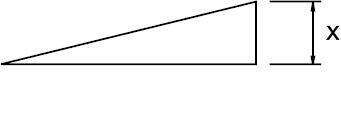

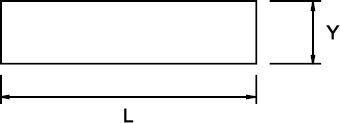

| code | MAT. | L(mm) | Y | X | g |
| 78967 | Cu-Be | 80 | 13 | 6-0 | 50 |
| 78968 | Al-Bron | ||||
| 70452 | Cu-Be | 100 | 50 | 10-0 | 200 |
| 71493 | Al-Bron | ||||
| 70453 | Cu-Be | 135 | 18-0 | 500 | |
| 71494 | Al-Bron | ||||
| 70454 | Cu-Be | 150 | 25 | 8-0 | 100 |
| 71495 | Al-Bron | ||||
| 70455 | Cu-Be | 13-0 | 200 | ||
| 71496 | Al-Bron | ||||
| 70456 | Cu-Be | 40 | 8-0 | ||
| 71497 | Al-Bron | ||||
| 70457 | Cu-Be | 50 | 13-0 | 400 | |
| 71498 | Al-Bron | ||||
| 70458 | Cu-Be | 180 | 13 | 6-0 | 300 |
| 71499 | Al-Bron | ||||
| 70459 | Cu-Be | 32 | 13-0 | ||
| 71500 | Al-Bron | ||||
| 70460 | Cu-Be | 50 | 19-0 | 700 | |
| 71501 | Al-Bron | ||||
| 70461 | Cu-Be | 200 | 20 | 30-0 | 500 |
| 71502 | Al-Bron | ||||
| 70377 | Cu-Be | 30 | 20-0 | 600 | |
| 36216 | Al-Bron | ||||
| 70462 | Cu-Be | 30-0 | 800 | ||
| 71503 | Al-Bron | ||||
| 70463 | Cu-Be | 40 | 40-0 | 1300 | |
| 71504 | Al-Bron | ||||
| 70464 | Cu-Be | 50 | 12-0 | 500 | |
| 71505 | Al-Bron | ||||
| 70465 | Cu-Be | 230 | 40 | 20-0 | 800 |
| 71506 | Al-Bron | ||||
| 70466 | Cu-Be | 250 | 30-0 | 1300 | |
| 71507 | Al-Bron | ||||
| 79934 | Cu-Be | 50 | 40-0 | 2100 | |
| 79935 | Al-Bron | ||||
| 70467 | Cu-Be | 300 | 2500 | ||
| 71508 | Al-Bron | ||||
| 79936 | Cu-Be | 50-0 | 3100 | ||
| 79937 | Al-Bron |
| แบรนด์สินค้า | EGA MASTER |
|---|
