WGA-65 (007518) | ANGLE GAUGE | SK NIIGATASEIKI

ANGLE GAUGE

Specialized for angle measurement of grooves with minimum reading 0.5°

USE
● Butt angle measurement and gap angle measurement
MATERIAL
● Stainless steel
FEATURES

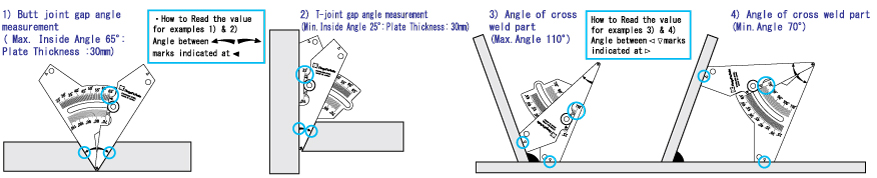

● Measurement of butt joint gap angle
● Sharpened tip enables measurement for root gap of 0mm, or when sheet thickness is less than 15mm
● Minimum reading 0.5°, large graduation for easy reading
●T-joint gap angle can be measured avoiding weld buildup
●Non-reflective satin finish for better legibility
● Solid and convenient carrying（ provided with plastic carrying case）

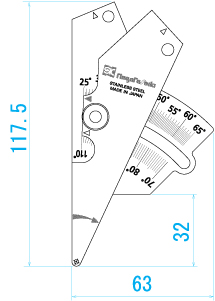

SPECIFICATIONS
●Bevel angle: 25～65°（ minimum graduation: 0.5°）
● Angle of cross weld part: 70〜110°
