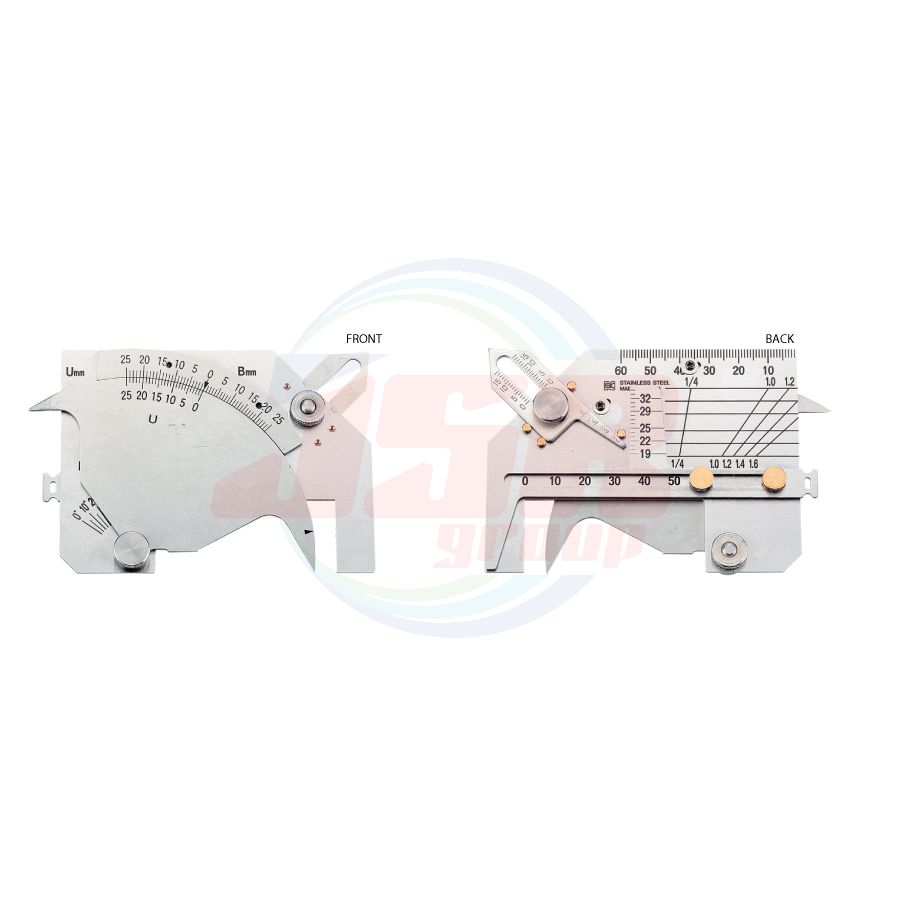

WGU-9M (007515) | WELDING GAUGE | SK NIIGATASEIKI

WELDING GAUGE

Essential for welding process. A wide variety of welding measurements in one gauge.

USE
● For a wide variety of welding measurements
   Undercut depth / Groove angle / Inconsistent level
   Height of fillet weld & bead weld / Throat thickness of fillet
   Root opening / Plate thickness / External diameter of circular
   workpiece / Width of bead weld
MATERIAL
●Stainless steel
FEATURES

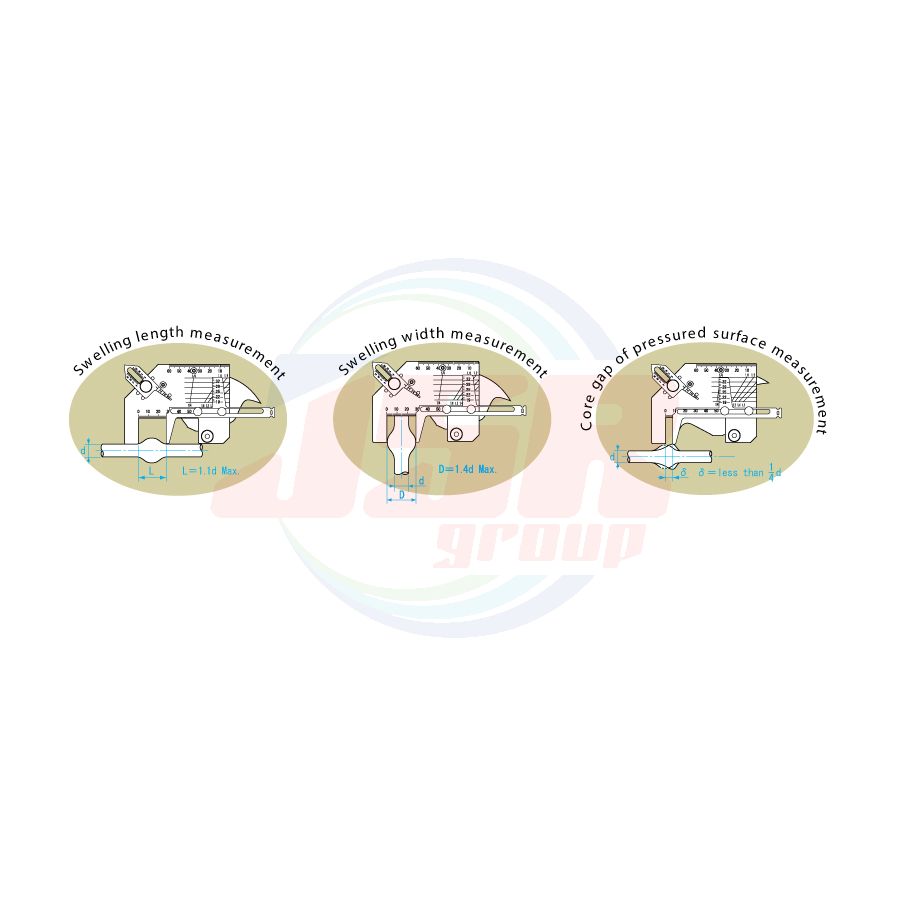

● Additional functions for measurement of
   - external diameter of circular workpiece
   - swelling of pressure welded reinforcing iron
   - width of bead weld

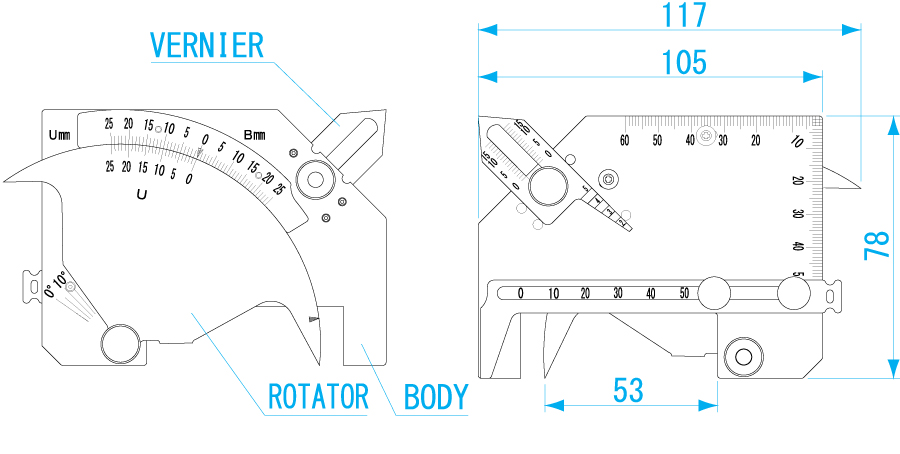

● Bead stride width: 53mm
● Bevel angle range: 0-70°
● Higher accuracy undercut measurement function
●With a vinyl case for easy carrying
