• High-precision glass scales manufactured under Mitutoyo’s leading-edge Linear Scale production technology. They are available in various types and sizes to suit to your application.
• Ideal for checking magnification accuracy of profile projectors and microscopes, and the table feeding accuracy of measuring equipment.

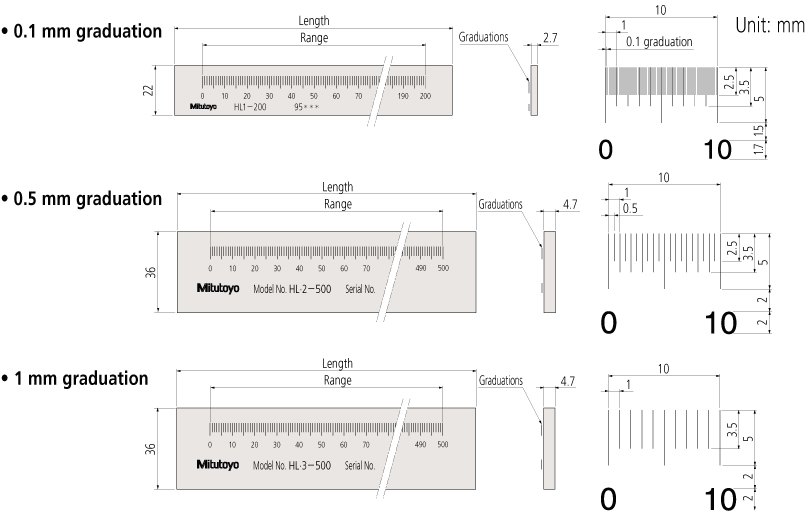

SPECIFICATIONS
Metric
Order No. | Range (mm) |
Graduation (mm) |
Length (mm) |
Inspection pitch (mm) |
Graduation thickness (μm) |
Mass (kg) |
182-511-10 | 50 | 0.1 | 75 | 5 | 20 | 0.23 |
182-512-10 | 100 | 125 | 10 | 0.24 | ||
182-513-10 | 150 | 175 | 0.25 | |||
182-514-10 | 200 | 225 | 0.26 | |||
182-521-10 | 100 | 0.5 | 130 | 50 | 0.27 | |
182-522-10 | 200 | 230 | 20 | 0.2 | ||
182-523-10 | 300 | 330 | 0.57 | |||
182-524-10 | 400 | 430 | 0.71 | |||
182-525-10 | 500 | 530 | 0.86 | |||
182-531-10 | 250 | 1 | 280 | 25 | 100 | 0.55 |
182-532-10 | 500 | 530 | 1.22 | |||
182-533-10 | 750 | 780 | 0.23 | |||
182-534-10 | 1000 | 1030 | 1.54 |
• Material: Soda-lime glass
• Thermal expansion coefficient: 8.5×10-6/K
• Accuracy (at 20 °C): (1.5 + 2L/1000) µm, L=Measured length (mm)
Note: An inspection certificate produced by a standard scale automatic calibration system is supplied as standard.
