WRL1118 (007561) | ANGLE LIMIT GAUGE | SK NIIGATASEIKI
THB 0.00
ราคารวม VAT แล้ว
พร้อมส่ง
SKU
007561
QTY:
10
ROOT LIMIT GAUGE
Essential for welding process.

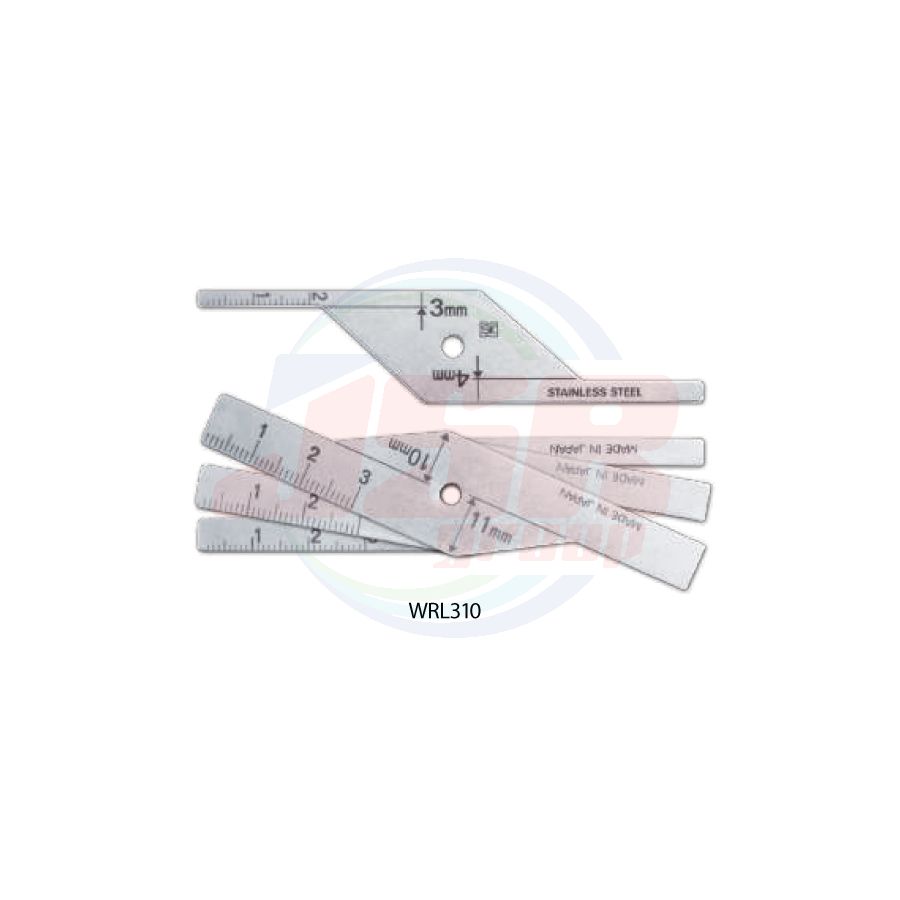

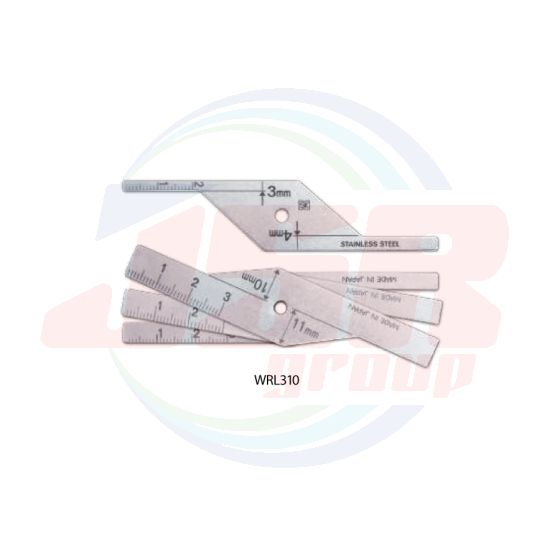

Limit gauge for measuring root gap of T-joint, facing joint and so on
USE
●Use for measuring root gap of T-joint or facing joint, leg length（ height） of fillet weld and excess weld and height of facing joint
MATERIAL
●Stainless steel
FEATURES
●Measure with 1mm interval
●The measurement result of root thickness will be indicated on the scale
●The most frequently used dimensions are selected as the gauge sizes
●Provided with plastic case and ball chain
| Model No. | WRL310 | WRL1118 | |||||||
| Blank No. | 1 | 2 | 3 | 4 | 1 | 2 | 3 | 4 | |
| Outline Dimension （mm） |
Overall width | 90 | 90 | ||||||
| Overall height | 20 | 20 | |||||||
| Plate thickness | 2 | 2 | |||||||
| Material/ Finish | SUS304/ barrel semi-gloss finish | SUS304/ barrel semi-gloss finish | |||||||
| Measurement Value Indication |
Root gap （ Front） |
3•4 | 5•6 | 7•8 | 9•10 | 11•12 | 13•14 | 15•16 | 17•18 |
| Leg length･height （Back） |
16•17 | 14•15 | 12•13 | 10•11 | 8•9 | 6•7 | 4•5 | 2•3 | |
| Root side（Front） | 20 | 20 | |||||||
| Plate thickness | 30 | 30 | |||||||
| Accuracy | ±0.1mm | ±0.1mm | |||||||
| Order No. | Model No. | Weight |
| 007560 | WRL310 | 60g |
| 007561 | WRL1118 | 90g |
| แบรนด์สินค้า | NIIGATA SEIKI (SK) |
|---|
