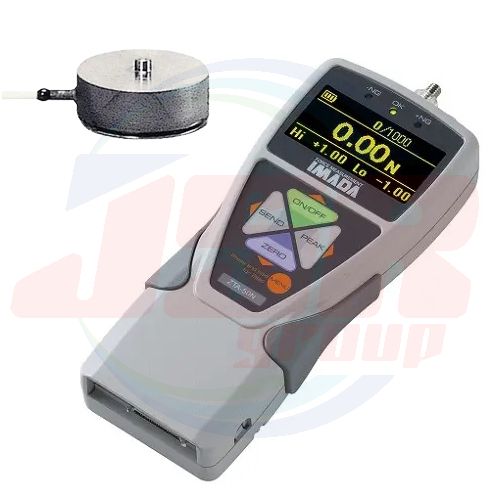

Standard separated sensor type digital force gauge is with an externally mounted sensor, and is ideal for incorporation into facility or for measurement in special environments. Various specifications and shapes of load cells are available, such as compact, waterproof, wide temperature, or pen type. The selected load cell and indicator are calibrated and shipped as a set, so there is no need for equivalent input calibration, and you can use it with confidence in accuracy. Some functions require connection to separately-sold products.
Feature
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force
- Ideal for integration into facilities or measuring under special circumstances due to separated sensor
- Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices
- Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time graphing also possible
- Next Series (Firmware Ver.5 or later) equips extended functions such as firmware updates and various software downloads from IMADA download site
Specifications
| Model | ZTA |
| Feature | Standard model with the same benefit in performance as ZTA series but reduced functionality. |
| Accuracy | Depending on load cells |
| Unit of measurement (*1) | N, kgf, lbf (*2) |
| Display | 4-digit Organic EL |
| Display update | 16/sec |
| Sampling rate | 2000 data / sec at maximum (*3) |
| Battery | 6.5 hours (2 hours charge) (*4) |
| Safe overload rating | Approx. 200% F.S. |
| Operating environment | Temperature: 0 to + 40 degree Celsius Humidity: 20 to 80%RH |
| Function | Customized display (header and footer), Peak hold (tension and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping , Time display, Setting lock |
| 1st /2nd peak, Displacement detection at force peak, Displacement 0 reset at selected force | |
| Output | USB, RS232C, +/- 2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
| Sub comparator 2 steps (output of low or high judgement) | |
| Overload warning | Approx. 110% F.S. (Warning message and alarm) |
| External connecting switch | Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching |
| Weight | Indicator: Approx.490g (Load cell: Please refer to each load cell’s specifications) |
| Dimensions | Please refer to dimensions. |
| Accessory(*6) | AC adapter, Inspection certificate, CD driver (Including data logging software), Attachments (only for ZTA/S-DPU-2N to 500N), USB cable, Carrying case. |
| Adapter for USB memory stick (*5) |
*1 These are the specifications for international model. Please note that the international model has different units of measures from Japanese domestic model.
*2 [N indication] The indication of 2N and 5N models is mN or N. The indication of 1000N, 25000N and 5000N model is N or kN. [kgf indication] The indication of 2N and 5 N models is gf. [lbf indication] The indication of 2N and 5N models is ozf.
*3 When you save data in USB memory stick, the sampling rate is selectable among 1, 50 and 100/sec.
*4 The battery is more consumed when connected to USB flash drive or a linear scale.
*5 USB memory stick is not included.
LM Models
|
Model |
Capacity | Display | Resolution |
| ZTA-LM-10N | 10N(1kgf) | 10.00N(1.000kgf) | 0.01N(0.001kgf) |
| ZTA-LM-20N | 20N(2kgf) | 20.00N(2.000kgf) | 0.01N(0.001kgf) |
| ZTA-LM-50N | 50N(5kgf) | 50.00N(5.000kgf) | 0.01N(0.001kgf) |
| ZTA-LM-100N | 100N(10kgf) | 100.0N(10.00kgf) | 0.1N(0.01kgf) |
| ZTA-LM-200N | 200N(20kgf) | 200.0N(20.00kgf) | 0.1N(0.01kgf) |
| ZTA-LM-500N | 500N(50kgf) | 500.0N(50.00kgf) | 0.1N(0.01kgf) |
| ZTA-LM-1000N | 1000N(100kgf) | 1000N/1.000kN(100.0kgf) | 1N/0.001kN(0.1kgf) |
| ZTA-LM-2000N | 2000N(200kgf) | 2000N/2.000kN(200.0kgf) | 1N/0.001kN(0.1kgf) |
| ZTA-LM-5000N | 5000N(500kgf) | 5000N/5.000kN(500.0kgf) | 1N/0.001kN(0.1kgf) |
| ZTA-LM-10kN | 10kN(1000kgf) | 10.00kN(1000kgf) | 0.01kN(1kgf) |
| ZTA-LM-20kN | 20kN(2000kgf) | 20.00kN(2000kgf) | 0.01kN(1kgf) |
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | ZTA-LM |
