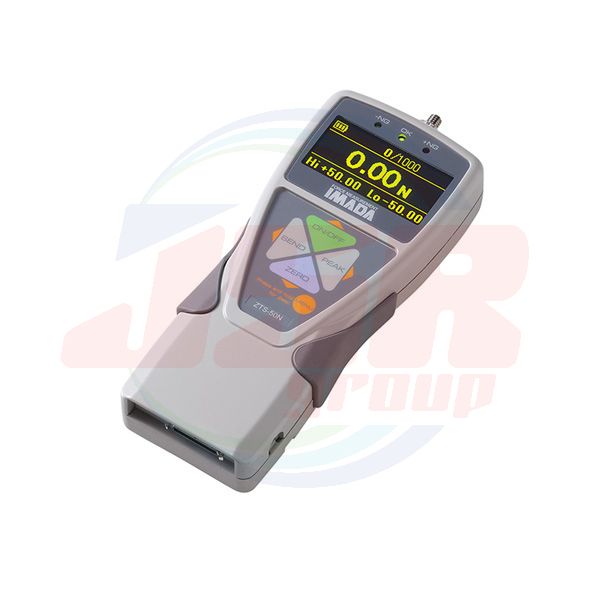

ZTS-5N | Standard Model Digital Force Gauge | IMADA
ราคาพิเศษ
THB 0.00
ราคาปรกติ
THB 26,738.32
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
ZTS-5N
QTY:
4
Standard type digital force gauge has capacity of 1000N and is easy-to-operate and functional, with 2000Hz high-speed sampling for accurate peak measurement and smooth curve when graphing data. The included software enables data management via PC, and graphing software for detailed data analysis. Several external output methods are available for connection to various devices. Next Series digital force gauges with firmware Ver.5 or later has improved measurement stability with less noise, and optional functions and software can be downloaded from the dedicated website (IMADA Connected) functions require connection to separately-sold products.
Feature
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force

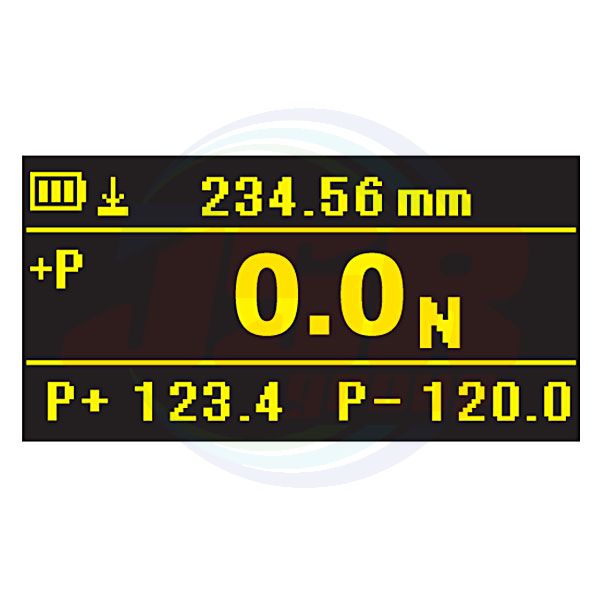

- Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
- Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices
- Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time graphing also possible
- Next Series (Firmware Ver.5 or later) equips extended functions such as firmware updates and various software downloads from IMADA download site
Specifications
| Model | ZTS |
| Feature | Standard Model with high functionality and usability. |
| Accuracy | +/-0.2%F.S.+/-1digit |
| Measurement Unit | N, kgf, lbf (*1) |
| Display | 4-digit Organic EL |
| Display update | 16 / sec |
| Sampling Rate | 2000 data / sec at maximum |
| Battery | 6.5 hours (2 hours for re-charging) |
| Safe overload rating | Approx.200%F.S. |
| Operating environment | Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Function | Customized display (header and footer), Peak hold (tension
and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, Setting lock |
| Output | USB, RS232C / ±2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
| Overload warning | Approx.110%F.S. (Warning message and alarm) |
| External connecting switch | Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching |
| Weight | From 2N to 1000N Model: Approx.490g (*2) 2500N, 5000N: Approx.1100g (*2) |
| Dimensions | Please refer to dimensions. |
| Accessory | AC adapter, Inspection certificate, CD
driver (including data logging software), Attachments (The set of attachments varies according to range.), Handles (only for 2500N/5000N range), USB cable, Carrying case. |
(*1) The measurement Unit: mN displayed for models of 5N or less, and kN displayed for models of 1000N or more.
In addition, possible to display the unit kg (g: 5N or less range) as a conversion
value.
(*2) The Weight differs according to the Model range.
| Model | Capacity | Display | Resolution | Measuring shaft | Included nut |
| ZTS-5N | 5N | 5.000N | 0.001N (1mN) | M6 P1.0 (Coarse thread) Thread length: 11.6mm |
Hexagon nut Material: Resin Height: 5mm |
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | ZTS-5N |
