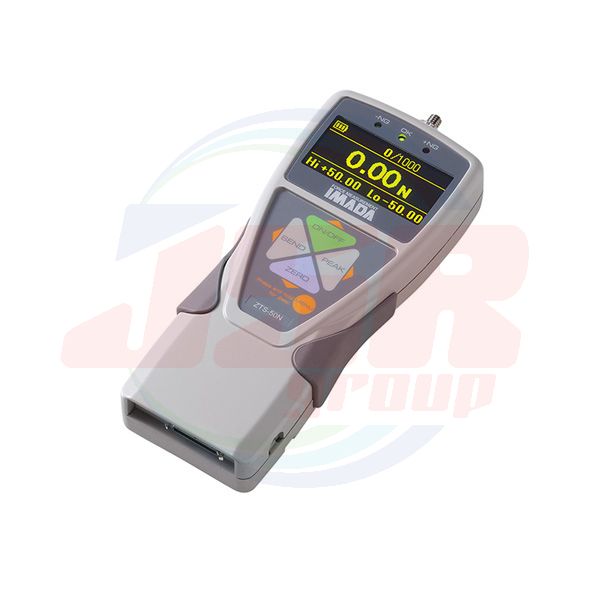

ZTS series | Standard Model Digital Force Gauge | IMADA
ราคาต่ำสุด
THB 0.00
THB 0.00
ราคาปรกติ
THB 30,612.70
พร้อมส่ง
SKU
IMA-ZTS-series
High functionality type digital force gauge has capacity of 1000N and is equipped with additional functions to ZTS series, such as input/output of displacement and data saving to USB. Next series digital force gauges with firmware Ver.5 or later offers improved measurement stability with less noise, and optional functions and software can be downloaded from the dedicated website (IMADA Connected). Some functions require connection to separately-sold products.
Feature
- High sampling rate (2000Hz) for accurate results, capturing small changes and accurate peak values by following rapid changes of force

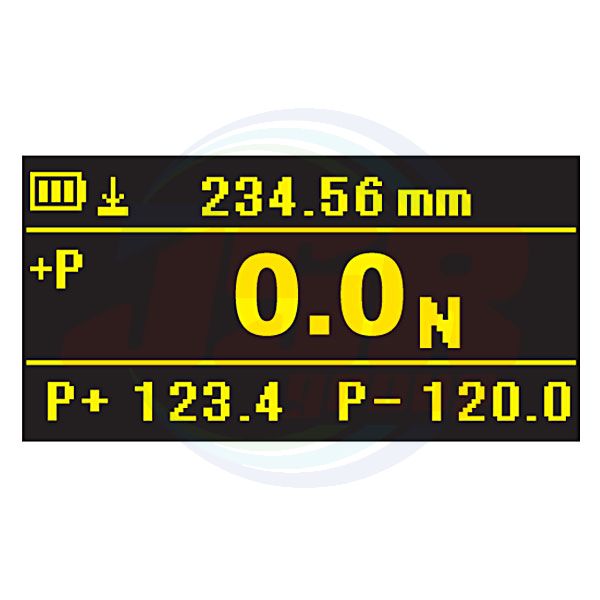

- Reduces risk of misreading values with easy-to-read high luminance organic EL display. Allows customers to customize the contents for the three sections of the display screen
- Improves testing versatility by various data output options such as USB, wireless, and serial communication, which allows data management on a PC and combination with external devices
- Allows easy data acquisition and management with the included USB cable and software. By using with optional software real-time force-time graphing also possible
- Next Series (Firmware Ver.5 or later) equips extended functions such as firmware updates and various software downloads from IMADA download site
Specifications
| Model | ZTA |
| Feature | Standard Model with high functionality and usability. |
| Accuracy | +/-0.2%F.S.+/-1digit |
| Measurement Unit | N, kgf, lbf (*1) |
| Display | 4-digit Organic EL |
| Display update | 16 / sec |
| Sampling Rate | 2000 data / sec at maximum (*2) |
| Battery | 6.5 hours (2 hours for re-charging) (*3) |
| Safe overload rating | Approx.200%F.S. |
| Operating environment | Temperature: 0 to +40 degree Celsius, Humidity: 20 to 80%RH |
| Function | Customized display (header and footer), Peak hold (tension
and compression), Internal 1000 points data memory, Comparator (judgment of OK or NG), Reversible display, Sign inversion, Zero clear timer, +NG alarm, Off timer (auto power off), Dumping, Time display, 1st/2nd peak, Displacement detection at force peak value, Displacement zero reset at selected force, Setting lock |
| Output | USB, RS232C / ±2VDC analog output (D/A), Comparator 3 steps (-NG/OK/+NG), Overload alarm |
| Overload warning | Approx.110%F.S. (Warning message and alarm) |
| External connecting switch | Power ON / OFF / Send and Hold / Zero reset / Peak and Real-time switching |
| Available linear scales (*4) |
- Online driver output (a line receiver according to RS422/485 must be built in.) - Open collector output (Voltage drop between contacts must be smaller than 0.5V.) |
| Weight |
From 2N to 1000N Model: Approx.490g (*5) 2500N, 5000N: Approx.1100g (*5) |
| Dimensions | Please refer to dimensions. |

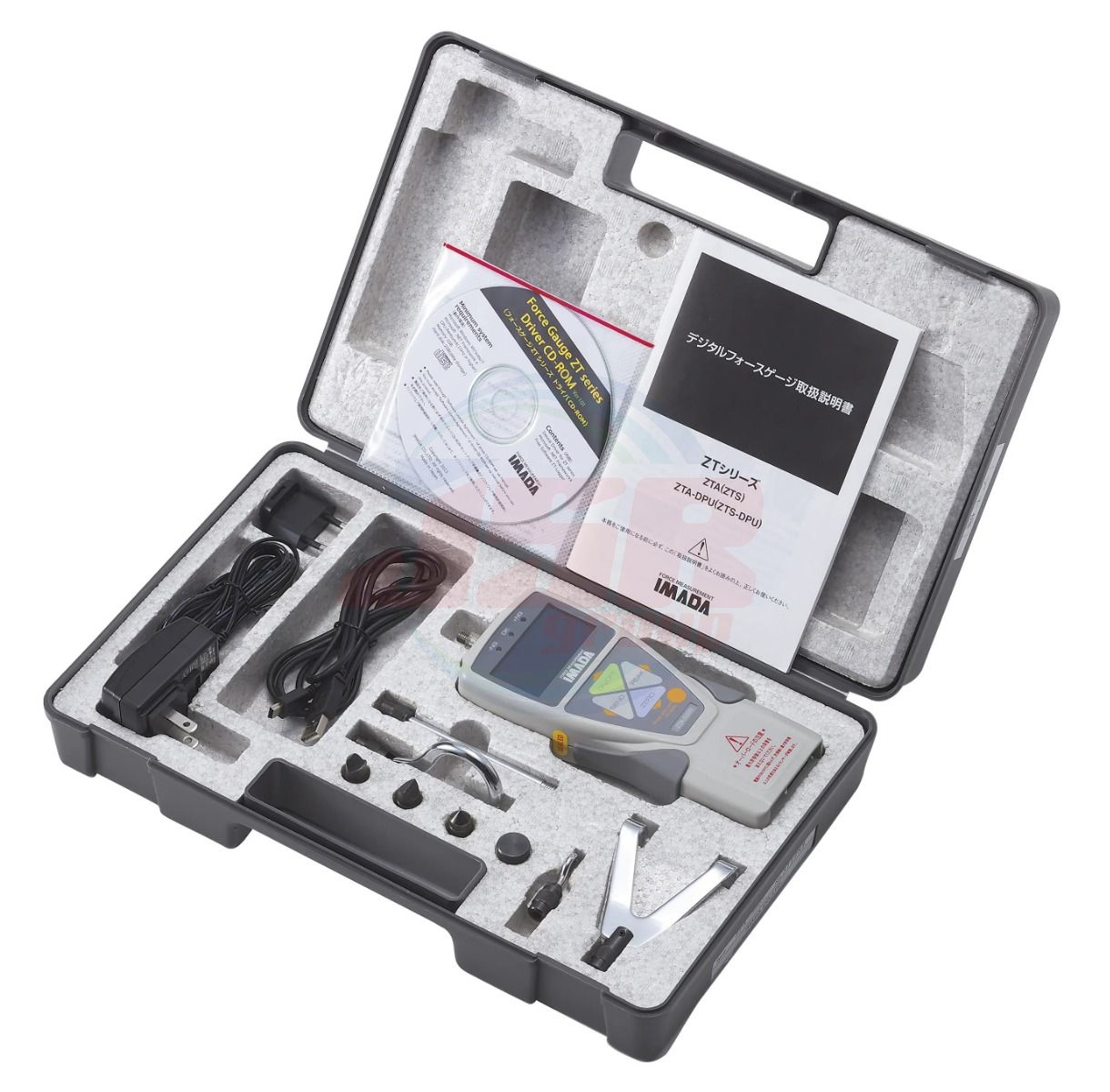

| Accessory | AC adapter, Inspection certificate, CD
driver (including data logging software), Attachments (The set of attachments varies according to range.), Handles (only for 2500N/5000N range), USB cable, Carrying case, Adaptor for USB flash drive (*6) |
*1 The measurement Unit: mN displayed for models of 5N or less, and kN displayed for models of 1000N or more.
In addition, possible to display the unit kg (g: 5N or less range) as a conversion
value.
*2 Up to 100 data/sec. is saved in USB memory (selectable among 1, 50, and 100 /sec).
*3
The battery is more consumed when connected to USB flash drive or a linear scale.
*4 Some linear scales
could not be available even if they meet the mentioned specifications.
*5 The Weight differs according to
the Model range.
*6 USB flash drive is not included.
ZTS series models
| Model | Capacity | Display | Resolution | Measuring shaft | Included nut |
| ZTS-2N | 2N | 2.000N | 0.001N (1mN) | M10
P1.5 (Coarse thread) Thread length: 15mm |
Hexagon nut Material: Steel Height: 6mm |
| ZTS-5N | 5N | 5.000N | 0.001N (1mN) | ||
| ZTS-20N | 20N | 20.00N | 0.01N | ||
| ZTS-50N | 50N | 50.00N | 0.01N | ||
| ZTS-100N | 100N | 100.0N | 0.1N | ||
| ZTS-200N | 200N | 200.0N | 0.1N | ||
| ZTS-500N | 500N | 500.0N | 0.1N | ||
| ZTS-1000N | 1000N | 1000N (1.000kN) | 1N (0.001kN) | ||

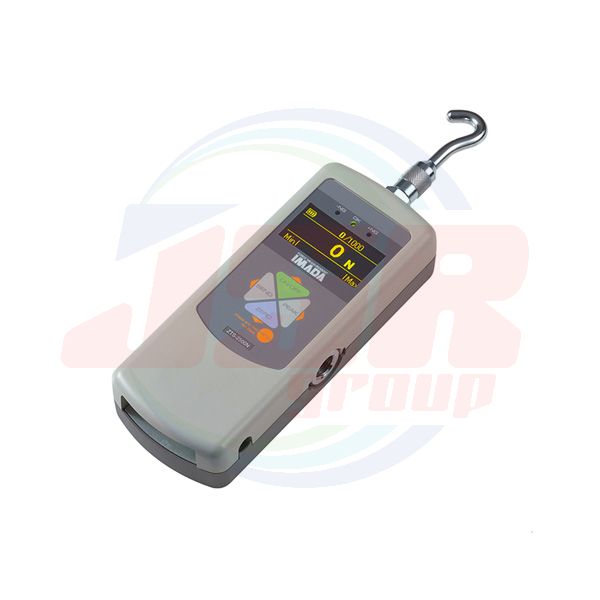

| ZTS-2500N | 2500N | 2500N (2.500kN) | 1N (0.001kN) |
M10 P1.5 (Coarse thread) Thread length: 15mm |
Hexagon nut Material: Steel Height: 6mm |
| ZTA-5000N | 5000N | 5000N (5.000kN) | 1N (0.001kN) |
| แบรนด์สินค้า | IMADA |
|---|---|
| Order No. | ZTS series |
