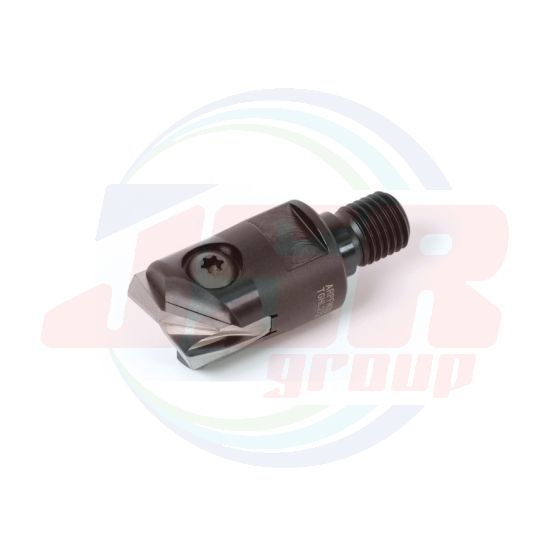

ARPF | Radius Precision ARPF | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
MOL-ARPF
● 刃先強度と切れ味を合わせ持つねじれ刃形インサートを追加ラインナップ！
● 2枚刃刃先交換式高精度仕上げ用ラジアスエンドミルです。
● 高精度なボデーと取付けねじからなる独特のクランプ機構により、インサートを高精度かつ強固に取付けすることが可能です。
・Additional lineup of helical cutting edge inserts which offer both cutting edge strength and cutting performance.
・2 flutes radius end Mill for high-precision finishing.
・Unique clamp mechanism comprised of high-accuracy bodyand mounting screw enables inserts to be attached firmly with high accuracy.

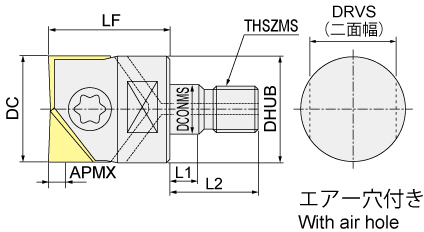

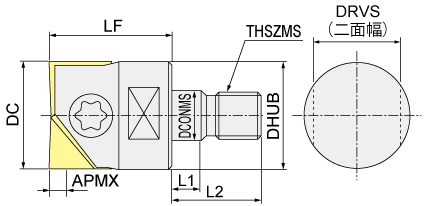

■ モジュラータイプ Modular type
| 商品コード Item code |
在庫 Stock |
インサート数 No.of inserts |
寸 法 Size (mm) | 適用インサート Inserts |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC | LF | APMX | DCONMS | THSZMS | DHUB | L1 | L2 | DRVS | ||||
| ARPFM10 | ● | 1 | 10 | 26(26.4) | 3 | 6.5 | M6 | 9.8 | 5.5 | 14.5 | 7 | ZCFG100S□(-R○.○) ZCFW100-R○.○ |
| ARPFM12 | ● | 1 | 12 13※ |
26(26.6) | 4 | 6.5 | M6 | 9.8 | 5.5 | 14.5 | 7 | ZCFG120S□(-R○.○) ZCFW120-R○.○ ZCFG130S□(-R○.○)※ |
| ARPFM16 | ● | 1 | 16 17※ |
32(32.6) | 5 | 8.5 | M8 | 12.8 | 5.5 | 17 | 10 | ZCFG160S□(-R○.○) ZCFW160-R○.○ ZCFG170S□(-R○.○)※ |
| ARPFM20 | ● | 1 | 20 21※ |
38(39) | 6 | 10.5 | M10 | 17.8 | 5.5 | 19 | 15 | ZCFG200S□(-R○.○) ZCFW200-R○.○ ZCFG210S□(-R○.○)※ |
| ARPFM25 | ● | 1 | 25 26※ |
38(39.8) | 8 | 12.5 | M12 | 20.8 | 5.5 | 22 | 17 | ZCFG250S□(-R○.○) ZCFW250-R○.○ ZCFG260S□(-R○.○)※ |
| ARPFM30 | ● | 1 | 30 | 43(45.2) | 10 | 17 | M16 | 28.8 | 6 | 23 | 22 | ZCFG300S□(-R○.○) ZCFW300-R○.○ |
| ARPFM32 | ● | 1 | 32 | 43(45.2) | 10 | 17 | M16 | 28.8 | 6 | 23 | 22 | ZCFG320S□(-R○.○) ZCFW320-R○.○ |
| 商品コード Item code |
在庫 Stock |
インサート数 No.of inserts |
寸 法 Size (mm) | 適用インサート Inserts |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC | LF | APMX | DCONMS | THSZMS | DHUB | L1 | L2 | DRVS | ||||
| ARPFM10-H | ● | 1 | 10 | 26(26.4) | 3 | 6.5 | M6 | 9.8 | 5.5 | 14.5 | 7 | ZCFG100S□(-R○.○) ZCFW100-R○.○ |
| ARPFM12-H | ● | 1 | 12 13※ |
26(26.6) | 4 | 6.5 | M6 | 9.8 | 5.5 | 14.5 | 7 | ZCFG120S□(-R○.○) ZCFW120-R○.○ ZCFG130S□(-R○.○)※ |
| ARPFM16-H | ● | 1 | 16 17※ |
32(32.6) | 5 | 8.5 | M8 | 12.8 | 5.5 | 17 | 10 | ZCFG160S□(-R○.○) ZCFW160-R○.○ ZCFG170S□(-R○.○)※ |
| ARPFM20-H | ● | 1 | 20 21※ |
38(39) | 6 | 10.5 | M10 | 17.8 | 5.5 | 19 | 15 | ZCFG200S□(-R○.○) ZCFW200-R○.○ ZCFG210S□(-R○.○)※ |
| ARPFM25-H | ● | 1 | 25 26※ |
38(39.8) | 8 | 12.5 | M12 | 20.8 | 5.5 | 22 | 17 | ZCFG250S□(-R○.○) ZCFW250-R○.○ ZCFG260S□(-R○.○)※ |
| ARPFM30-H | ● | 1 | 30 | 43(45.2) | 10 | 17 | M16 | 28.8 | 6 | 23 | 22 | ZCFG300S□(-R○.○) ZCFW300-R○.○ |
| ARPFM32-H | ● | 1 | 32 | 43(45.2) | 10 | 17 | M16 | 28.8 | 6 | 23 | 22 | ZCFG320S□(-R○.○) ZCFW320-R○.○ |
※ φ13インサートはφ12ボデー、φ17インサートはφ16ボデー、φ21インサートはφ20ボデー、φ26インサートはφ25ボデーに取付ける事ができます。
※ A φ13 mm insert can be mounted on a φ12 mm body, a φ17 mm insert can be mounted on a φ16 mm body, a φ21 mm insert can be mounted on a φ20 mm body, or a φ26 mm insert can be mounted on a φ25 mm body.
【注意】 モジュラーミル及び専用シャンク、専用アーバの「工具端面」「モジュラーねじ部」にグリースなどの潤滑剤は塗布しないでください。
（ ）寸法は、ZCFGタイプのインサート取り付け時の寸法を示します。
【Note】 Do not apply lubricants such as grease, etc. to the "contact faces" and "modular screws" of the "modular mill", "dedicated shanks" and "dedicated arbor".
Dimensions in parentheses ( ) are with ZCFG type inserts installed.

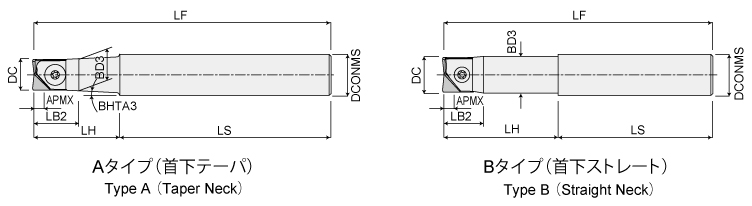

■ シャンクタイプ Shank type
| 商品コード Item code |
在庫 Stock |
インサート数 No.of inserts |
寸 法 Size (mm) | 形状 Shape |
適用インサート Inserts |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC | LF | DCONMS | APMX | LB2 | LH | BHTA3 | BD3 | LS | |||||||
| レギュラー Regular shank |
ARPF06S10 | ● | 1 | 6 | 80 | 10 | 2.0 | 15 | 30 | 8.25° | 5.4 | 50 | A | ZCFG06NS□(-R○.○) ZCFW060-R○.○ | |
| ARPF08S12 | ● | 1 | 8 | 100(100.2) | 12 | 2.5 | 10(10.2) | 22(22.2) | 9.5° | 7.5 | 78 | A | ZCFG080S□(-R○.○) ZCFW080-R○.○ | ||
| ARPF10S12 | ● | 1 | 10 | 100(100.4) | 12 | 3.0 | 13(13.4) | 25(25.4) | 3° | 9.5 | 75 | A | ZCFG100S□(-R○.○) ZCFW100-R○.○ | ||
| ARPF12S12 | ● | 1 | 12 13※ |
110(110.6) | 12 | 4.0 | 21(21.6) | 30(30.6) | — | 11.5 | 80 | B | ZCFG120S□(-R○.○) ZCFW120-R○.○ ZCFG130S□(-R○.○)※ |
||
| ARPF16S16 | ● | 1 | 16 17※ |
130(130.6) | 16 | 5.0 | 27(27.6) | 50(50.6) | — | 15 | 80 | B | ZCFG160S□(-R○.○) ZCFW160-R○.○ ZCFG170S□(-R○.○)※ |
||
| ARPF20S20 | ● | 1 | 20 21※ |
140(141) | 20 | 6.0 | 35(36) | 60(61) | — | 19 | 80 | B | ZCFG200S□(-R○.○) ZCFW200-R○.○ ZCFG210S□(-R○.○)※ |
||
| ARPF25S25 | ● | 1 | 25 26※ |
150(151.8) | 25 | 8.0 | 43(44.8) | 70(71.8) | — | 24 | 80 | B | ZCFG250S□(-R○.○) ZCFW250-R○.○ ZCFG260S□(-R○.○)※ |
||
| ARPF30S32 | ● | 1 | 30 | 160(162.2) | 32 | 10.0 | 55(57.2) | 80(82.2) | — | 29 | 80 | B | ZCFG300S□(-R○.○) ZCFW300-R○.○ | ||
| ARPF32S32 | ● | 1 | 32 | 160(162.2) | 32 | 10.0 | 58(60.2) | 80(82.2) | — | 31 | 80 | B | ZCFG320S□(-R○.○) ZCFW320-R○.○ | ||
| 首下ロング Under neck long |
ARPF08S12L | ● | 1 | 8 | 130(130.2) | 12 | 2.5 | 10(10.2) | 50(50.2) | 3° | 7.5 | 80 | A | ZCFG080S□(-R○.○) ZCFW080-R○.○ | |
| ARPF10S16L | ● | 1 | 10 | 150(150.4) | 16 | 3.0 | 13(13.4) | 50(50.4) | 4.5° | 9.5 | 100 | A | ZCFG100S□(-R○.○) ZCFW100-R○.○ | ||
| ARPF12S16L | ● | 1 | 12 13※ |
160(160.6) | 16 | 4.0 | 21(21.6) | 60(60.6) | 2° | 11.5 | 100 | A | ZCFG120S□(-R○.○) ZCFW120-R○.○ ZCFG130S□(-R○○○)※ |
||
| ARPF16S16L | ● | 1 | 16 17※ |
165(165.6) | 16 | 5.0 | 27(27.6) | 65(65.6) | — | 15 | 100 | B | ZCFG160S□(-R○.○) ZCFW160-R○.○ ZCFG170S□(-R○.○)※ |
||
| ARPF20S20L | ● | 1 | 20 21※ |
180(181) | 20 | 6.0 | 35(36) | 80(81) | — | 19 | 100 | B | ZCFG200S□(-R○.○) ZCFW200-R○.○ ZCFG210S□(-R○○○)※ |
||
| ARPF20S20L120 | ● | 1 | 20 21※ |
220(221) | 20 | 6.0 | 35(36) | 120(121) | — | 19 | 100 | B | ZCFG200S□(-R○.○) ZCFW200-R○.○ ZCFG210S□(-R○.○)※ |
||
| ARPF20S20L150 | ● | 1 | 20 21※ |
250(251) | 20 | 6.0 | 35(36) | 150(151) | — | 19 | 100 | B | ZCFG200S□(-R○.○) ZCFW200-R○.○ ZCFG210S□(-R○.○)※ |
||
| ARPF25S25L | ● | 1 | 25 26※ |
200(201.8) | 25 | 8.0 | 43(44.8) | 90(91.8) | — | 24 | 110 | B | ZCFG250S□(-R○.○) ZCFW250-R○.○ ZCFG260S□(-R○.○)※ |
||
| ARPF25S32L150 | ● | 1 | 250(251.8) | 32 | 8.0 | 43(44.8) | 150(151.8) | — | 24 | 100 | B | ZCFG260S□(-R○.○)※ | |||
| ARPF30S32L | ● | 1 | 30 | 220(222.2) | 32 | 10.0 | 55(57.2) | 100(102.2) | — | 29 | 120 | B | |||
| ARPF30S32L150 | ● | 1 | 30 | 250(252.2) | 32 | 10.0 | 55(57.2) | 150(152.2) | — | 29 | 100 | B | ZCFG300S□(-R○.○) ZCFW300-R○.○ | ||
| ARPF30S32L200 | ● | 1 | 30 | 300(302.2) | 32 | 10.0 | 55(57.2) | 200(202.2) | — | 29 | 100 | B | |||
| ARPF32S32L | ● | 1 | 32 | 220(222.2) | 32 | 10.0 | 58(60.2) | 100(102.2) | — | 31 | 120 | B | ZCFG320S□(-R○.○) ZCFW320-R○.○ | ||
| ロングシャンク Long shank |
ARPF16S16E | ● | 1 | 16 17※ |
200(200.6) | 16 | 5.0 | 27(27.6) | 65(65.6) | — | 15 | 135 | B | ZCFG160S□(-R○.○) ZCFW160-R○.○ ZCFG170S□(-R○.○)※ |
|
| ARPF20S20E | ● | 1 | 20 21※ |
250(251) | 20 | 6.0 | 35(36) | 80(81) | — | 19 | 170 | B | ZCFG200S□(-R○.○) ZCFW200-R○.○ ZCFG210S□(-R○.○)※ |
||
| ARPF25S25E | ● | 1 | 25 | 300(301.8) | 25 | 8.0 | 43(44.8) | 90(91.8) | — | 24 | 210 | B | ZCFG250S□(-R○.○) ZCFW250-R○.○ | ||
| ARPF25S32E | ● | 1 | 25 | 300(301.8) | 32 | 8.0 | 43(44.8) | 100(101.8) | 3.5° | 24 | 200 | A | ZCFG260S□(-R○.○)※ | ||
| ARPF30S32E | ● | 1 | 30 | 350(352.2) | 32 | 10.0 | 55(57.2) | 100(102.2) | — | 29 | 250 | B | ZCFG300S□(-R○.○) ZCFW300-R○.○ | ||
| ARPF30S42E | ● | 1 | 30 | 350(352.2) | 42 | 10.0 | 55(57.2) | 120(122.2) | 5.3° | 29 | 230 | A | ZCFG300S□(-R○.○) ZCFW300-R○.○ | ||
| ARPF32S32E | ● | 1 | 32 | 350(352.2) | 32 | 10.0 | 58(60.2) | 100(102.2) | — | 31 | 250 | B | ZCFG320S□(-R○.○) ZCFW320-R○.○ | ||
| 超硬シャンク Carbide shank |
レギュラー Regular shank |
ARPF06S06W | ● | 1 | 6 | 90 | 6 | 2.0 | 10.3 | 25 | — | 5.5 | 65 | B | ZCFG06NS□(-R○.○) ZCFW060-R○.○ |
| 首下ロング Under neck long |
ARPF06S06WL65 | ● | 1 | 6 | 120 | 6 | 2.0 | 10.3 | 65 | — | 5.5 | 55 | B | ZCFG06NS□(-R○.○) ZCFW060-R○.○ | |
| ARPF08S08WL | ● | 1 | 8 | 130(130.2) | 8 | 2.5 | 65(65.2) | 65(65.2) | — | 7.5 | 65 | B | ZCFG080S□(-R○.○) ZCFW080-R○.○ | ||
| ARPF10S10WL | ● | 1 | 10 | 140(140.4) | 10 | 3.0 | 18(18.4) | 75(75.4) | — | 9.5 | 65 | B | ZCFG100S□(-R○.○) ZCFW100-R○.○ | ||
| ARPF12S12WL | ● | 1 | 12 13※ |
150(150.6) | 12 | 4.0 | 21(21.6) | 85(85.6) | — | 11.5 | 65 | B | ZCFG120S□(-R○.○) ZCFW120-R○.○ ZCFG130S□(-R○.○)※ |
||
| ロングシャンク Long shank |
ARPF16S16WE | ● | 1 | 16 17※ |
200(200.6) | 16 | 5.0 | 27(27.6) | 120(120.6) | — | 15 | 80 | B | ZCFG160S□(-R○.○) ZCFW160-R○.○ ZCFG170S□(-R○.○)※ |
|
| ARPF20S20WE | ● | 1 | 20 21※ |
250(251) | 20 | 6.0 | 35(36) | 150(151) | — | 19 | 100 | B | ZCFG200S□(-R○○○) ZCFW200-R○○○ ZCFG210S□(-R○○○)※ |
||
| ARPF25S25WE | ● | 1 | 25 26※ |
300(301.8) | 25 | 8.0 | 43(44.8) | 190(191.8) | — | 24 | 110 | B | ZCFG250S□(-R○○○) ZCFW250-R○○○ ZCFG260S□(-R○○○)※ |
||
| ARPF30S32WE | ● | 1 | 30 | 350(352.2) | 32 | 10.0 | 55(57.2) | 230(232.2) | — | 29 | 120 | B | ZCFG300S□(-R○.○) ZCFW300-R○.○ | ||
| ARPF32S32WE | ● | 1 | 32 | 350(352.2) | 32 | 10.0 | 58(60.2) | 230(232.2) | — | 31 | 120 | B | ZCFG320S□(-R○.○) ZCFW320-R○.○ | ||
※ φ13インサートはφ12ボディ、φ17インサートはφ16ボディ、φ21インサートはφ20ボディ、φ26インサートはφ25ボディに取付ける事ができます。
※ A φ13 mm insert can be mounted on a φ12 mm body, a φ17 mm insert can be mounted on a φ16 mm body, a φ21 mm insert can be mounted on a φ20 mm body, or a φ26 mm insert can be mounted on a φ25 mm body.
【注意】（ ）寸法は、ZCFGタイプのインサート取り付け時を示します。
【Note】 Dimensions in parentheses ( ) are with ZCFG type inserts installed.
