INSERT For ARPF
■ インサート Inserts
■ SG・SW・SQ タイプ（ねじれ刃形インサート）SG・SW・SQ type (helical cutting edge inserts)
| P | 鋼 Carbon steels |  |
 |
：一般切削・第一推奨 General cutting, First recommended ：一般切削・第二推奨General cutting, Second recommended |
|||||||
| K | FC・FCD Cast irons | |
|
||||||||
| N | アルミニウム合金 Aluminum alloys | |
|||||||||
| H | 高硬度材 Hardened steels | |
|
||||||||
| 形状 Shape |
商品コード Item code |
精度 Tolerance class |
THコーティング TH Coating |
PNコーティング PN Coating |
寸法 Size(mm) | 形状 Shape |
|||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| TH308 | PN215 | DC | RE | LE | INSL | T | |||||
 |

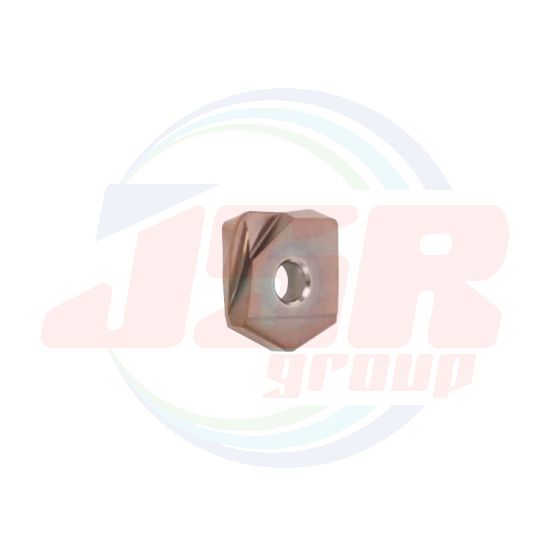

SGタイプ SG type |
ZCFG06NSG-R0.3 | F級 F |

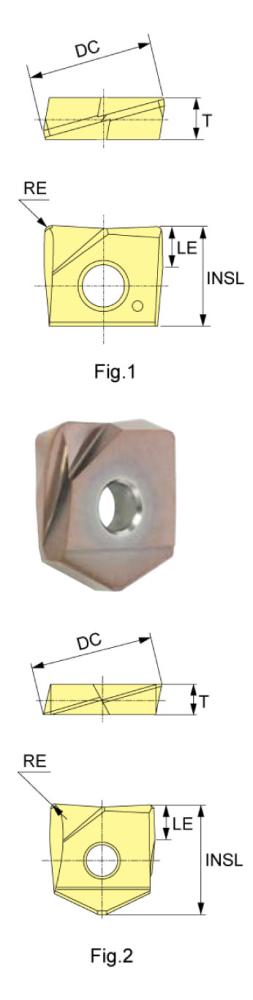

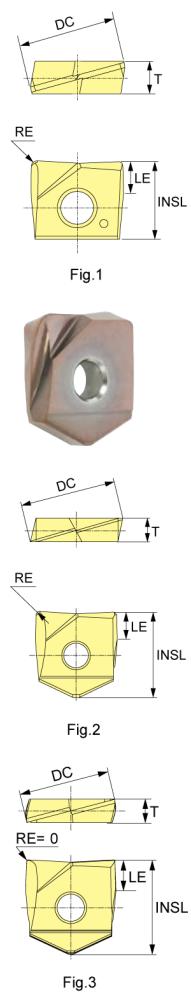

● | ● | 6 | 0.3 | 2 | 5 | 2 | Fig1 |
| ZCFG06NSG-R0.5 | ● | ● | 0.5 | ||||||||
| ZCFG06NSG-R1.0 | ● | ● | 1.0 | ||||||||
| ZCFG080SG-R0.3 | ● | ● | 8 | 0.3 | 2.5 | 9.9 | 2.1 | Fig2 | |||
| ZCFG080SG-R0.5 | ● | ● | 0.5 | ||||||||
| ZCFG080SG-R1.0 | ● | ● | 1.0 | ||||||||
| ZCFG080SG-R1.5 | ● | ● | 1.5 | ||||||||
| ZCFG080SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG100SG-R0.3 | ● | ● | 10 | 0.3 | 3 | 12.5 | 2.7 | ||||
| ※ ZCFG100SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG100SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG100SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG100SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG100SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG120SG-R0.3 | ● | ● | 12 | 0.3 | 4 | 15.1 | 3.2 | ||||
| ※ ZCFG120SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG120SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG120SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG120SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG120SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG130SG-R0.3 | ● | ● | 13 | 0.3 | 4 | 15.1 | 3.2 | ||||
| ※ ZCFG130SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG130SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG130SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG130SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG130SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG160SG-R0.3 | ● | ● | 16 | 0.3 | 5 | 17.2 | 4.2 | ||||
| ※ ZCFG160SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG160SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG160SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG160SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG160SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG170SG-R0.3 | ● | ● | 17 | 0.3 | 5 | 17.2 | 4.2 | ||||
| ※ ZCFG170SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG170SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG170SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG170SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG170SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG200SG-R0.3 | ● | ● | 20 | 0.3 | 7 | 20.9 | 5.2 | ||||
| ※ ZCFG200SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG200SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG200SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG200SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG200SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG210SG-R0.3 | ● | ● | 21 | 0.3 | 7 | 20.9 | 5.2 | ||||
| ※ ZCFG210SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG210SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG210SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG210SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG210SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG250SG-R0.3 | ● | ● | 25 | 0.3 | 8 | 24.4 | 6.2 | ||||
| ※ ZCFG250SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG250SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG250SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG250SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG250SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG260SG-R0.3 | ● | ● | 26 | 0.3 | 8 | 24.4 | 6.2 | ||||
| ※ ZCFG260SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG260SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG260SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG260SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG260SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG300SG-R0.3 | ● | ● | 30 | 0.3 | 10 | 29.4 | 7.2 | ||||
| ※ ZCFG300SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG300SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG300SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG300SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG300SG-R3.0 | ● | ● | 3.0 | ||||||||
| ※ ZCFG320SG-R0.3 | ● | ● | 32 | 0.3 | 10 | 30.4 | 7.2 | ||||
| ※ ZCFG320SG-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG320SG-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG320SG-R1.5 | ● | ● | 1.5 | ||||||||
| ※ ZCFG320SG-R2.0 | ● | ● | 2.0 | ||||||||
| ※ ZCFG320SG-R3.0 | ● | ● | 3.0 | ||||||||
| SWタイプ SW type |
ZCFG06NSW-R0.3 | F級 F |
● | ● | 6 | 0.3 | 2 | 5 | 2 | Fig1 | |
| ZCFG06NSW-R0.5 | ● | ● | 0.5 | ||||||||
| ZCFG080SW-R0.3 | ● | ● | 8 | 0.3 | 2.5 | 9.9 | 2.1 | Fig2 | |||
| ZCFG080SW-R0.5 | ● | ● | 0.5 | ||||||||
| ZCFG080SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG100SW-R0.3 | ● | ● | 10 | 0.3 | 3 | 12.5 | 2.7 | ||||
| ※ ZCFG100SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG100SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG120SW-R0.3 | ● | ● | 12 | 0.3 | 4 | 15.1 | 3.2 | ||||
| ※ ZCFG120SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG120SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG130SW-R0.3 | ● | ● | 13 | 0.3 | 4 | 15.1 | 3.2 | ||||
| ※ ZCFG130SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG130SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG160SW-R0.3 | ● | ● | 16 | 0.3 | 5 | 17.2 | 4.2 | ||||
| ※ ZCFG160SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG160SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG170SW-R0.3 | ● | ● | 17 | 0.3 | 5 | 17.2 | 4.2 | ||||
| ※ ZCFG170SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG170SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG200SW-R0.3 | ● | ● | 20 | 0.3 | 7 | 20.9 | 5.2 | ||||
| ※ ZCFG200SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG200SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG210SW-R0.3 | ● | ● | 21 | 0.3 | 7 | 20.9 | 5.2 | ||||
| ※ ZCFG210SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG210SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG250SW-R0.3 | ● | ● | 25 | 0.3 | 8 | 24.4 | 6.2 | ||||
| ※ ZCFG250SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG250SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG260SW-R0.3 | ● | ● | 26 | 0.3 | 8 | 24.4 | 6.2 | ||||
| ※ ZCFG260SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG260SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG300SW-R0.3 | ● | ● | 30 | 0.3 | 10 | 29.4 | 7.2 | ||||
| ※ ZCFG300SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG300SW-R1.0 | ● | ● | 1.0 | ||||||||
| ※ ZCFG320SW-R0.3 | ● | ● | 32 | 0.3 | 10 | 30.4 | 7.2 | ||||
| ※ ZCFG320SW-R0.5 | ● | ● | 0.5 | ||||||||
| ※ ZCFG320SW-R1.0 | ● | ● | 1.0 | ||||||||
● 印：標準在庫品です。 ●： Stocked items.
| P | 鋼 Carbon steels | |
：一般切削・第一推奨 General cutting, First recommended ：一般切削・第二推奨General cutting, Second recommended |
||||||
| K | FC・FCD Cast irons | |
|||||||
| N | アルミニウム合金 Aluminum alloys | |
|||||||
| H | 高硬度材 Hardened steels | |
|||||||
| 形状 Shape |
商品コード Item code |
精度 Tolerance class |
PNコーティング PN Coating |
寸法 Size(mm) | 形状 Shape |
||||
|---|---|---|---|---|---|---|---|---|---|
| PN215 | DC | LE | INSL | T | |||||
 |

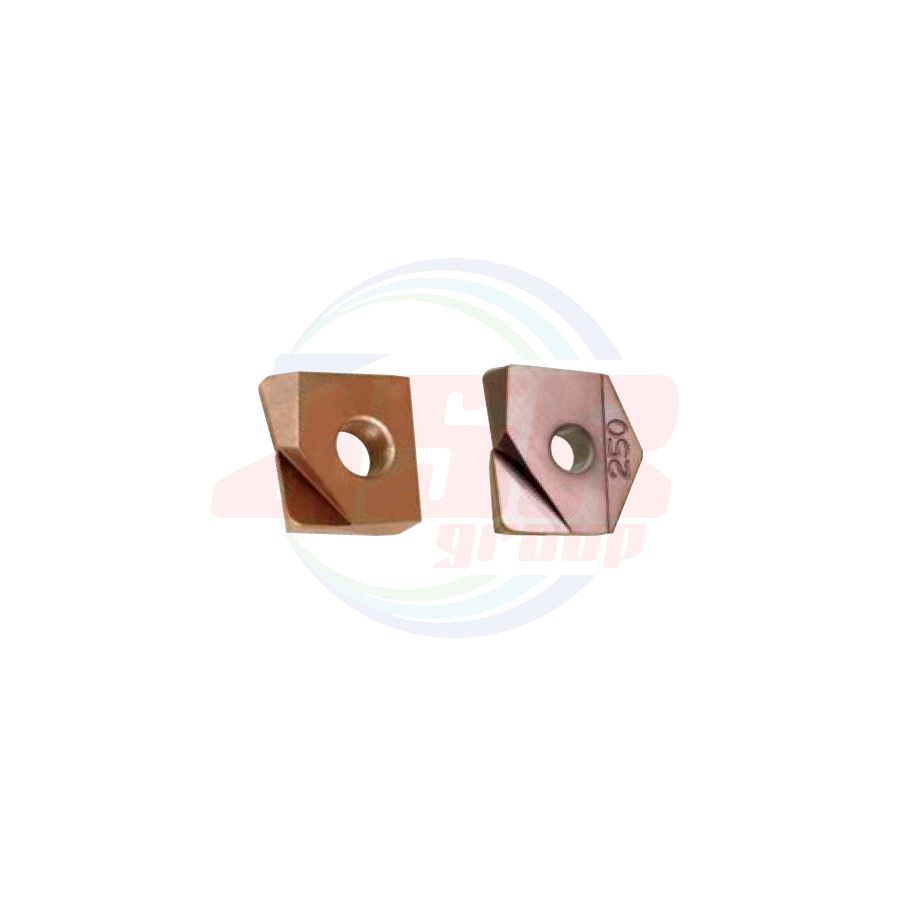

SQタイプ SQ type |
ZCFG080SQ | F級 F |

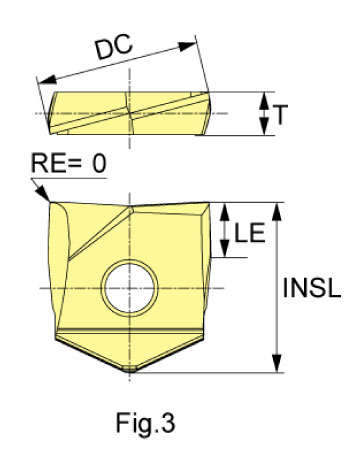

● | 8 | 2.5 | 9.9 | 2.1 | Fig3 |
| ※ ZCFG100SQ | ● | 10 | 3 | 12.5 | 2.7 | ||||
| ※ ZCFG120SQ | ● | 12 | 4 | 15.1 | 3.2 | ||||
| ※ ZCFG130SQ | ● | 13 | 4 | 15.1 | 3.2 | ||||
| ※ ZCFG160SQ | ● | 16 | 5 | 17.2 | 4.2 | ||||
| ※ ZCFG170SQ | ● | 17 | 5 | 17.2 | 4.2 | ||||
| ※ ZCFG200SQ | ● | 20 | 7 | 20.9 | 5.2 | ||||
| ※ ZCFG210SQ | ● | 21 | 7 | 20.9 | 5.2 | ||||
| ※ ZCFG250SQ | ● | 25 | 8 | 24.4 | 6.2 | ||||
| ※ ZCFG260SQ | ● | 26 | 8 | 24.4 | 6.2 | ||||
【注意】SG、SW、SQタイプのインサートは、アルファボールプレシジョンF「ABPF形」ボデーに取り付け可能です。
SG、SW、SQタイプのインサート（φ8〜φ32）は、A寸法が従来品に対して長い設計になっております。ボデーにセットした場合の寸法にご注意ください。
【Note】Inserts of SG, SW, SQ type can be installed on Ball Precision F "ABPF type" bodies.
Inserts(φ8〜φ32) of SG, SW, SQ type have a design with a longer A dimension than conventional products. Be careful of the dimension when installed on body.
※印 ：φ10以上のインサートは再研磨が可能です。φ16以上では最大2回まで再研磨が可能です。
※mark: Re-grinding is applicable with insertφ10 or above. Insertφ16 or above may be re-ground up to twice.
インサートの再研磨＆再コーティングも承っております。詳しくは弊社営業所までお問い合せください。
Please inquire insert re-grinding / re-coating to sales office.
