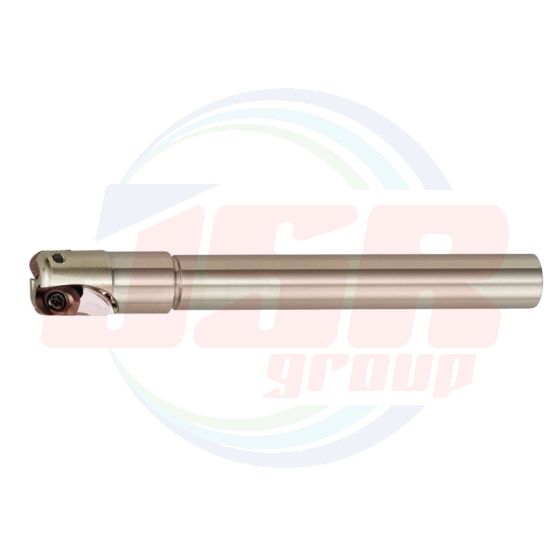

ASM | Super Excellent Mini ASM | MOLDINO
ราคาต่ำสุด
THB 0.00
พร้อมส่ง
SKU
ASM
●当社先進の小型インサートを使用した刃先交換式エンドミルです。
●3次元形状切刃のインサートとポケットデザインにより、小径サイズでも高能率な加工ができます。
・Indexable end mill using advanced small inserts.
・Pocket design and 3D-shaped cutting edge enables high-efficient machining of even small diameter sizes

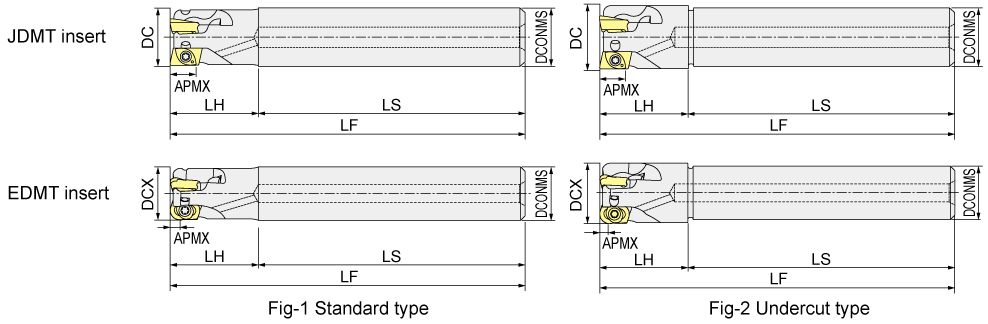

■ シャンクタイプ Shank type
With air hole Maximumtightening torque 0.5 Nm Spare screw included
| Item code | Stock | No. of flutes | Size (mm) | Shape | Inserts | |||||
|---|---|---|---|---|---|---|---|---|---|---|
| DC DCX | LF | APMX | LH | DCONMS | LS | |||||
| ASM0708S10R-1 | ● | 1 | 8 | 75 | 5 (0.3)※ |
18 | 10 | 57 | Standard type (Fig-1) | JDMT0702◌◌R EDMT070220R(-T) |
| ASM0710S10R-2 | ● | 2 | 10 | 80 | 20 | 10 | 60 | Standard type (Fig-1) | ||
| ASM0710S08R-2 | ● | 2 | 10 | 80 | 20 | 8 | 60 | Undercut type (Fig-2) | ||
| ASM0711S10R-2 | ● | 2 | 11 | 80 | 20 | 10 | 60 | Undercut type (Fig-2) | ||
| ASM0712S12R-3 | ● | 3 | 12 | 80 | 20 | 12 | 60 | Standard type (Fig-1) | ||
| ASM0712S10R-3 | ● | 3 | 12 | 80 | 20 | 10 | 60 | Undercut type (Fig-2) | ||
| ASM0714S12R-3 | ● | 3 | 14 | 80 | 20 | 12 | 60 | Undercut type (Fig-2) | ||
| ASM0716S16R-4 | ● | 4 | 16 | 90 | 25 | 16 | 65 | Standard type (Fig-1) | ||
| ASML0716S16R-4 | ● | 4 | 16 | 115 | 50 | 16 | 65 | Standard type (Fig-1) | ||
| ASM0717S16R-4 | ● | 4 | 17 | 115 | 20 | 16 | 95 | Undercut type (Fig-2) | ||
| ASM0720S20R-5 | ● | 5 | 20 | 105 | 25 | 20 | 80 | Standard type (Fig-1) | ||
| ASML0720S20R-5 | ● | 5 | 20 | 140 | 60 | 20 | 80 | Standard type (Fig-1) | ||
| ASM0721S20R-5 | ● | 5 | 21 | 140 | 20 | 20 | 120 | Undercut type (Fig-2) | ||
※EDMT070220R(-T)をご使用の場合はAPMXは（ ）寸法になります。※When using EDMT070220R (-T), APMX is in ( ) dimensions.
【注意】クランプねじは消耗品です。使用環境により交換寿命は変化しますので早めの交換をお願い致します。クランプねじは、3枚刃までは予備が1本、4枚刃以上は予備が2本付属します。.
【Note】・The clamp screw is a consumable part. Since replacement life depends on the use environment, it is recommended that it be replaced at an early stage. One spare clamp screw is provided for cutter bodies with 3 or less flutes, and two for 4 or more flutes.

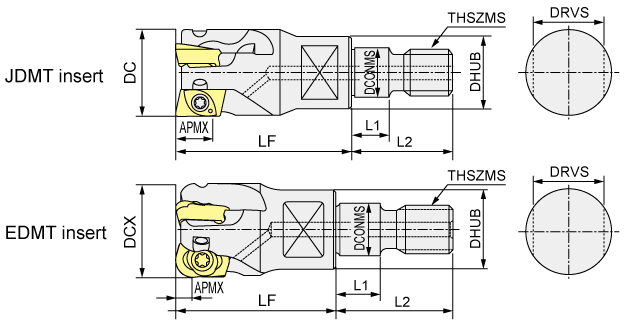

■ モジュラータイプ Modular type
With air hole Maximumtightening torque 0.5 Nm Spare screw included
| code | Stock | No. of flutes | Size (mm) | DRVS | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| DC DCX | LF | APMX | DCONMS | THSZMS | DHUB | L1 | L2 | Inserts | ||||
| ASMM0708R-1 | ● | 1 | 8 | 20 | 5 (0.3)※ |
6.5 | M6 | 9.8 | 5.5 | 14.5 | 7 | JDMT0702◌◌R EDMT070220R(-T) |
| ASMM0710R-2 | ● | 2 | 10 | 20 | 6.5 | M6 | 9.4 | 5.5 | 14.5 | 7 | ||
| ASMM0711R-2 | ● | 2 | 11 | 20 | 6.5 | M6 | 9.8 | 5.5 | 14.5 | 7 | ||
| ASMM0712R-3 | ● | 3 | 12 | 20 | 6.5 | M6 | 9.8 | 5.5 | 14.5 | 7 | ||
| ASMM0716R-4 | ● | 4 | 16 | 25 | 8.5 | M8 | 12.8 | 5.5 | 17 | 10 | ||
| ASMM0720R-5 | ● | 5 | 20 | 30 | 10.5 | M10 | 17.8 | 5.5 | 19 | 15 | ||
| ASMM0725R-6 | ● | 6 | 25 | 30 | 12.5 | M12 | 20.8 | 5.5 | 22 | 17 | ||
| ASMM0732R-8 | ● | 8 | 32 | 30 | 5 (0.3)※ |
17 | M16 | 28.8 | 6 | 23 | 22 | JDMT0702◌◌R EDMT070220R(-T) |
※EDMT070220R(-T)をご使用の場合はAPMXは（ ）寸法になります。※When using EDMT070220R (-T), APMX is in ( ) dimensions.
【注意】モジュラーミル及び専用シャンク、専用アーバの「工具端面」「モジュラーねじ部」にグリースなどの潤滑剤は塗布しないでください。
【Note】Do not apply lubricants such as grease, etc. to the "contact faces" and "modular screws" of the "modular mill", "dedicated shanks" and "dedicated arbor".
● 印：標準在庫品です。 ●：Stocked items.無印：弊社営業へお問合せください。No mark：Contact with our sales department.
