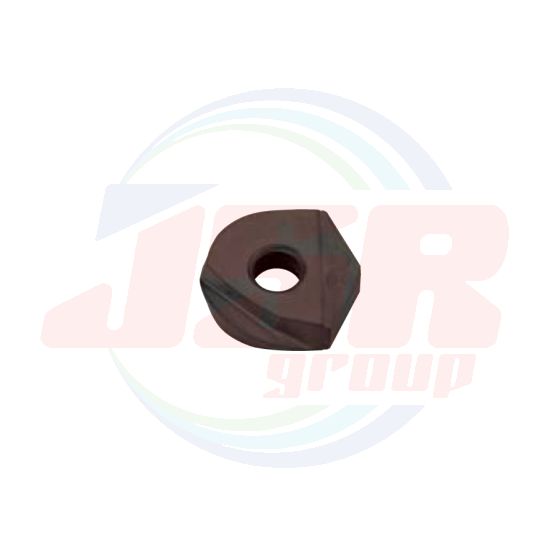

INSERT For ABPF
■ 強ねじれ刃形インサート High helix edge shape inserts
| P | 鋼 Carbon steels |  |
|
|
 |
|
：一般切削・第一推奨 General cutting, First recommended ：一般切削・第二推奨General cutting, Second recommended |
||||||||
| K | FC・FCD Cast irons | |
|
|
|
|
|||||||||
| グラファイト Graphite | |
||||||||||||||
| N | アルミニウム合金 Aluminum alloys | |
|||||||||||||
| H | 高硬度材 Hardened steels | |
|
|
|
||||||||||
| 形状 Shape |
商品コード Item code |
精度 Tolerance class |
THコーティング TH Coating |
PNコーティング PN Coating |
HDコーティング HD Coating |
寸法 Size(mm) | 形状 Shape |
||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| TH303 | ATH80D | ATH10E | PN08M | PN15M | HD7010 | RE | LE | INSL | DC | T | |||||
|
|
SHタイプ Type SH |
ZPFG06N-SH | F級 F |

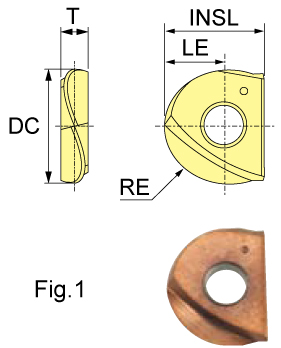

● | — | 3 | 3 | 5 | 6 | 2 | Fig.1 | ||||

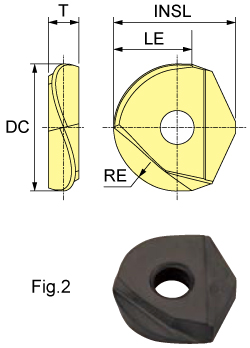

| ZPFG080-SH | ● | — | 4 | 4.4 | 9.7 | 8 | 2.1 | Fig.2 | |||||||
| ZPFG100-SH | ● | — | 5 | 5.6 | 12.1 | 10 | 2.7 | ||||||||
| ZPFG120-SH | ● | — | 6 | 6.6 | 14.6 | 12 | 3.2 | ||||||||
| ZPFG160-SH | ● | — | 8 | 9 | 16.6 | 16 | 4.2 | ||||||||
| ZPFG200-SH | ● | — | 10 | 11.5 | 20.3 | 20 | 5.2 | ||||||||
| ZPFG250-SH | ● | — | 12.5 | 14.5 | 24.1 | 25 | 6.2 | ||||||||
| ZPFG300-SH | ● | — | 15 | 18.5 | 29.2 | 30 | 7.2 | ||||||||
| STタイプ Type ST |
ZDFG06N-ST | F級 F |
● | ● | — | 3 | 3 | 5 | 6 | 2 | Fig.1 | ||||
| ZDFG080-ST | ● | ● | — | 4 | 4.4 | 9.7 | 8 | 2.1 | Fig.2 | ||||||
| ZDFG100-ST | ● | ● | — | 5 | 5.6 | 12.1 | 10 | 2.7 | |||||||
| ZDFG120-ST | ● | ● | — | 6 | 6.6 | 14.6 | 12 | 3.2 | |||||||
| ZDFG160-ST | ● | ● | — | 8 | 9 | 16.6 | 16 | 4.2 | |||||||
| ZDFG200-ST | ● | ● | — | 10 | 11.5 | 20.3 | 20 | 5.2 | |||||||
| ZDFG250-ST | ● | ● | — | 12.5 | 14.5 | 24.1 | 25 | 6.2 | |||||||
| ZDFG300-ST | ● | ● | — | 15 | 18.5 | 29.2 | 30 | 7.2 | |||||||
| SCタイプ Type SC |
ZDFG06N-SC | F級 F |
● | — | 3 | 3 | 5 | 6 | 2 | Fig.1 | |||||
| ZDFG080-SC | ● | — | 4 | 4.4 | 9.7 | 8 | 2.1 | Fig.2 | |||||||
| ZDFG100-SC | ● | — | 5 | 5.6 | 12.1 | 10 | 2.7 | ||||||||
| ZDFG120-SC | ● | — | 6 | 6.6 | 14.6 | 12 | 3.2 | ||||||||
| ZDFG160-SC | ● | — | 8 | 9 | 16.6 | 16 | 4.2 | ||||||||
| ZDFG200-SC | ● | — | 10 | 11.5 | 20.3 | 20 | 5.2 | ||||||||
| ZDFG250-SC | ● | — | 12.5 | 14.5 | 24.1 | 25 | 6.2 | ||||||||
| ZDFG300-SC | ● | — | 15 | 18.5 | 29.2 | 30 | 7.2 | ||||||||
| SFタイプ Type SF |
ZDFG06N-SF | F級 F |
●※ | 3 | 3 | 5 | 6 | 2 | Fig.1 | ||||||
| ZDFG080-SF | ●※ | 4 | 4.4 | 9.7 | 8 | 2.1 | Fig.2 | ||||||||
| ZDFG100-SF | ●※ | 5 | 5.6 | 12.1 | 10 | 2.7 | |||||||||
| ZDFG120-SF | ●※ | 6 | 6.6 | 14.6 | 12 | 3.2 | |||||||||
| ZDFG160-SF | ● | ●※ | 8 | 9 | 16.6 | 16 | 4.2 | ||||||||
| ZDFG200-SF | ● | ●※ | 10 | 11.5 | 20.3 | 20 | 5.2 | ||||||||
| ZDFG250-SF | ● | — | 12.5 | 14.5 | 24.1 | 25 | 6.2 | ||||||||
| ZDFG300-SF | ● | — | 15 | 18.5 | 29.2 | 30 | 7.2 | ||||||||
※印：HD7010は再研磨不可です。HD7010以外のØ10以上のインサートは再研磨が可能です。Ø16以上では最大2回まで再研磨が可能です。
※mark：Regrinding of HD7010 tools cannot be performed. Inserts other than HD7010 with diameters of Ø10 or more can be regrinded. For diameters of Ø16 or more, regrinding can be performed up to a maximum of 2 times.
※mark：Regrinding of HD7010 tools cannot be performed. Inserts other than HD7010 with diameters of Ø10 or more can be regrinded. For diameters of Ø16 or more, regrinding can be performed up to a maximum of 2 times.
インサートの再研磨＆再コーティングも承っております。詳しくは弊社営業所までお問い合せください。
Please inquire insert re-grinding / re-coating to sales office.
Please inquire insert re-grinding / re-coating to sales office.
■ 一般刃形インサート Inserts
| P | 鋼 Carbon steels | |
|
|
：一般切削・第一推奨 General cutting, First recommended ：一般切削・第二推奨General cutting, Second recommended |
|||||||||||
| K | FC・FCD Cast irons | |
|
|
|
|
||||||||||
| グラファイト Graphite | |
|
||||||||||||||
| N | アルミニウム合金 Aluminum alloys | |
||||||||||||||
| H | 高硬度材 Hardened steels | |
|
|
|
|||||||||||
| 形状 Shape |
商品コード Item code |
精度 Tolerance class |
Cコーティング C Coating |
THコーティング TH Coating |
ACSコーティング ACS Coating |
HDコーティング HD Coating |
CBN | 寸法 Size(mm) | 形状 Shape |
|||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| PCA12M | PCA08M | PTH08M | ATH80D | ACS05E | HD7010 | BH200 | RE | LE | INSL | DC | T | |||||
|
|
ZPFG080 | F級 F |
— | — | — | 4 | 4.4 | 9.7 | 8 | 2.1 | Fig.1 | |||||
| ※ ZPFG100 | — | — | — | 5 | 5.5 | 12.1 | 10 | 2.7 | ||||||||
| ※ ZPFG120 | — | — | — | 6 | 6.6 | 14.6 | 12 | 3.2 | ||||||||
| ※ ZPFG160 | — | — | ● | 8 | 8.8 | 16.6 | 16 | 4.2 | ||||||||
| ZPFG200 | — | — | ● | 10 | 11 | 20.3 | 20 | 5.2 | ||||||||
| ※ ZPFG250 | — | — | ● | 12.5 | 13.7 | 24.1 | 25 | 6.2 | ||||||||
| ※ ZPFG300 | — | — | ● | 15 | 16.5 | 29.2 | 30 | 7.2 | ||||||||
| ※ ZPFG320 | ● | ● | ● | — | — | — | 16 | 17.6 | 30.2 | 32 | 7.2 | |||||
|
Gタイプ：GF/GH |
ZPFG060-GF | F級 F |

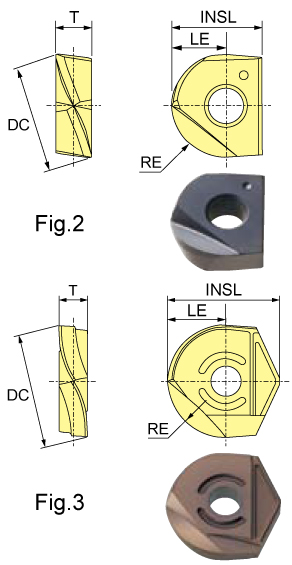

— | — | — | — | — | — | 3 | 3.3 | 5 | 6 | 2 | Fig.2 | ||
| ZPFG080-GF | — | — | — | — | — | 4 | 4.4 | 9.7 | 8 | 2.1 | Fig.3 | |||||
| ZPFG080-GH | — | — | — | — | — | 4 | 4.4 | 9.7 | 8 | 2.1 | ||||||
| ※ ZPFG100-GF | — | — | — | — | — | 5 | 5.5 | 12.1 | 10 | 2.7 | ||||||
| ※ ZPFG100-GH | — | — | — | — | — | 5 | 5.5 | 12.1 | 10 | 2.7 | ||||||
| ZPFG120-GF | — | — | — | — | — | 6 | 6.5 | 14.6 | 12 | 3.2 | ||||||
| ※ ZPFG120-GH | — | — | — | — | — | 6 | 6.5 | 14.6 | 12 | 3.2 | ||||||
| ※ ZPFG160-GF | — | — | — | — | — | 8 | 8.5 | 16.6 | 16 | 4.2 | ||||||
| ※ ZPFG160-GH | — | — | — | — | — | 8 | 8.5 | 16.6 | 16 | 4.2 | ||||||
| ※ ZPFG200-GF | — | — | — | — | — | 10 | 10.5 | 20.3 | 20 | 5.2 | ||||||
| ※ ZPFG200-GH | — | — | — | — | — | 10 | 10.5 | 20.3 | 20 | 5.2 | ||||||
| ※ ZPFG250-GF | — | — | — | — | — | 12.5 | 13.1 | 24.1 | 25 | 6.2 | ||||||
| ※ ZPFG250-GH | — | — | — | — | — | 12.5 | 13.1 | 24.1 | 25 | 6.2 | ||||||
| ※ ZPFG300-GF | — | — | — | — | — | 15 | 15.8 | 29.2 | 30 | 7.2 | ||||||
| ※ ZPFG300-GH | — | — | — | — | — | 15 | 15.8 | 29.2 | 30 | 7.2 | ||||||
| ※ ZPFG320-GF | — | — | — | — | ● | — | 16 | 16.8 | 30.2 | 32 | 7.2 | |||||
| ※ ZPFG320-GH | — | — | — | ● | — | — | 16 | 16.8 | 30.2 | 32 | 7.2 | |||||
|
Wタイプ：WF/WH |
ZDFG060-WF | F級 F |

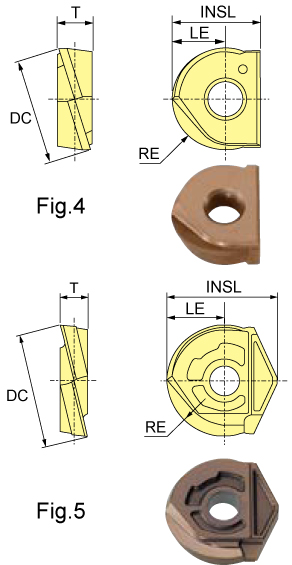

— | — | — | — | — | 3 | 3 | 5 | 6 | 2 | Fig.4 | |||
| ZDFG060-WH | — | — | — | — | — | — | 3 | 3 | 5 | 6 | 2 | |||||
| ZDFG080-WF | — | — | — | — | — | 4 | 4 | 9.7 | 8 | 2.1 | Fig.5 | |||||
| ZDFG080-WH | — | — | — | — | — | 4 | 4 | 9.7 | 8 | 2.1 | ||||||
| ZDFG100-WF | — | — | — | — | — | 5 | 5 | 12.1 | 10 | 2.7 | ||||||
| ZDFG100-WH | — | — | — | — | — | 5 | 5 | 12.1 | 10 | 2.7 | ||||||
| ZDFG120-WF | — | — | — | — | — | 6 | 6 | 14.6 | 12 | 3.2 | ||||||
| ZDFG120-WH | — | — | — | — | — | 6 | 6 | 14.6 | 12 | 3.2 | ||||||
| ZDFG160-WF | — | — | — | — | — | 8 | 8 | 16.6 | 16 | 4.2 | ||||||
| ZDFG160-WH | — | — | — | — | — | 8 | 8 | 16.6 | 16 | 4.2 | ||||||
| ZDFG200-WF | — | — | — | — | — | 10 | 10 | 20.3 | 20 | 5.2 | ||||||
| ZDFG200-WH | — | — | — | — | — | 10 | 10 | 20.3 | 20 | 5.2 | ||||||
| ZDFG250-WF | — | — | — | — | — | 12.5 | 12.5 | 24.1 | 25 | 6.2 | ||||||
| ZDFG250-WH | — | — | — | — | — | 12.5 | 12.5 | 24.1 | 25 | 6.2 | ||||||
| ZDFG300-WF | — | — | — | — | — | 15 | 15 | 29.2 | 30 | 7.2 | ||||||
| ZDFG300-WH | — | — | — | — | — | 15 | 15 | 29.2 | 30 | 7.2 | ||||||
| ※ ZDFG320-WF | — | — | — | — | ● | — | 16 | 16 | 30.2 | 32 | 7.2 | |||||
| ※ ZDFG320-WH | — | — | — | ● | — | — | 16 | 16 | 30.2 | 32 | 7.2 | |||||
※印：Ø10以上のインサートは再研磨が可能です。Ø16以上では最大2回まで再研磨が可能です。
※mark：Re-grinding is applicable with insert Ø10 or above. Insert Ø16 or above may be re-ground up to twice.
※mark：Re-grinding is applicable with insert Ø10 or above. Insert Ø16 or above may be re-ground up to twice.
インサートの再研磨＆再コーティングも承っております。詳しくは弊社営業所までお問い合せください。
Please inquire insert re-grinding / re-coating to sales office.
Please inquire insert re-grinding / re-coating to sales office.
●印：標準在庫品です。● : Stocked items. 無印：弊社営業所へお問い合せください。No mark : Contact with our sales department. 一印：製作いたしません。— : No Manufactured.
