SU-HT (Unified Threads)
Product Features
- The SU-HT is a hand tap suitable for machining of stainless steel, chromium steel, molybdenum steel.
These materials have a tendency to work harden easily. - To prevent welding, the taps surface is oxidized.
Tapping Data
Tapping Conditions［Ｍ8×１.25］
|
Workpiece Material |
SUS304 10mm thick |
|
|
Tapping Speed |
5m/min |
|
|
Bored Hole Size |
φ6.8 through hole |
|
|
Cutting Fluid |
JIS 2, No. 13 |
|
|
Machinery Type |
Tapping machine |
The figure on the right shows test data comparing the tool life in tapping SUS 304 with an oxidized standard M8 × 1.25, a standard bright hand tap and the oxidized SU - HT tap.

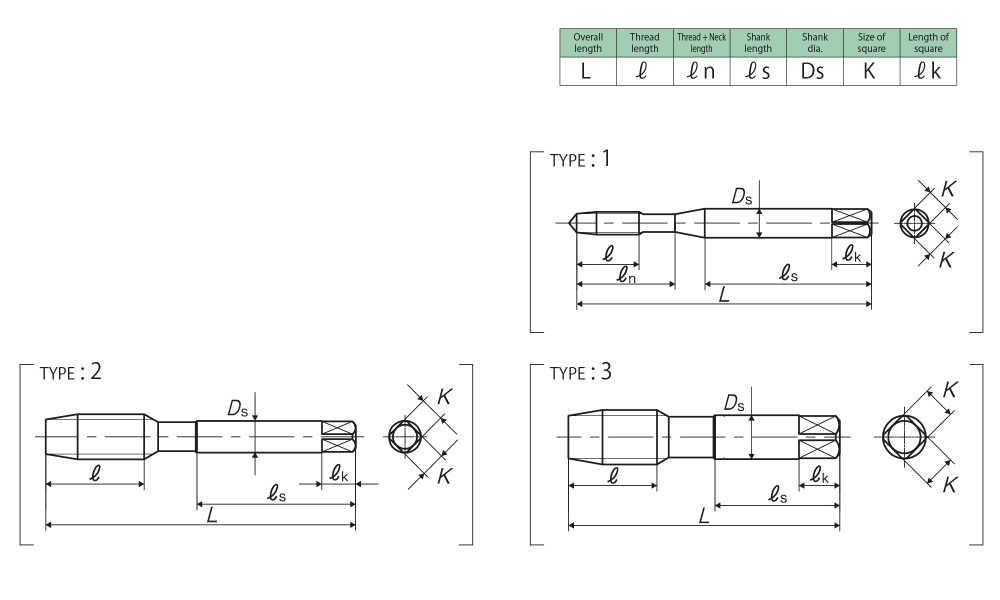

Specification
Tapping Speeds depending on Materials
Segment：1A
|
Size |
Class |
Code |
Chamfer |
L (mm) |
ℓ (mm) |
ℓn (mm) |
ℓs (mm) |
Ds (mm) |
K (mm) |
ℓk (mm) |
No. of flutes |
TYPE |
|
For Unified Threads |
||||||||||||
|
1/4-20UNC |
P2 |
TUMQU04N4 |
4P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
1/4-20UNC |
P2 |
TUMQU04N1 |
1.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
1/4-28UNF |
P2 |
TUMQU04K4 |
4P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
1/4-28UNF |
P2 |
TUMQU04K1 |
1.5P |
62 |
15 |
26 |
33 |
6 |
4.5 |
7 |
3 |
1 |
|
5/16-18UNC |
P3 |
TUMRU05O4 |
4P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
5/16-18UNC |
P3 |
TUMRU05O1 |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
|
5/16-24UNF |
P2 |
TUMQU05M4 |
4P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
3 |
2 |
|
5/16-24UNF |
P2 |
TUMQU05M1 |
1.5P |
70 |
19 |
- |
36 |
6.2 |
5 |
8 |
4 |
2 |
|
3/8-16UNC |
P3 |
TUMRU06P4 |
4P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
3/8-16UNC |
P3 |
TUMRU06P1 |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
|
3/8-24UNF |
P2 |
TUMQU06M4 |
4P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
3 |
2 |
|
3/8-24UNF |
P2 |
TUMQU06M1 |
1.5P |
75 |
23 |
- |
38 |
7 |
5.5 |
8 |
4 |
2 |
|
7/16-14UNC |
P3 |
TUMRU07Q4 |
4P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
7/16-14UNC |
P3 |
TUMRU07Q1 |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
7/16-20UNF |
P3 |
TUMRU07N4 |
4P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
3 |
2 |
|
7/16-20UNF |
P3 |
TUMRU07N1 |
1.5P |
82 |
26 |
- |
42 |
8.5 |
6.5 |
9 |
4 |
2 |
|
1/2-13UNC |
P3 |
TUMRU08R4 |
4P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
1/2-13UNC |
P3 |
TUMRU08R1 |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
2 |
|
1/2-20UNF |
P3 |
TUMRU08N4 |
4P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
3 |
2 |
|
1/2-20UNF |
P3 |
TUMRU08N1 |
1.5P |
88 |
26 |
- |
45 |
10.5 |
8 |
11 |
4 |
2 |
|
5/8-11UNC |
P3 |
TUMRU10U4 |
4P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
5/8-11UNC |
P3 |
TUMRU10U1 |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
5/8-18UNF |
P3 |
TUMRU10O4 |
4P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
5/8-18UNF |
P3 |
TUMRU10O1 |
1.5P |
95 |
26 |
- |
48 |
12.5 |
10 |
13 |
4 |
2 |
|
3/4-10UNC |
P4 |
TUMSU12V4 |
4P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
3/4-10UNC |
P4 |
TUMSU12V1 |
1.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
3/4-16UNF |
P3 |
TUMRU12P4 |
4P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
|
3/4-16UNF |
P3 |
TUMRU12P1 |
1.5P |
105 |
33 |
- |
50 |
15 |
12 |
15 |
4 |
3 |
