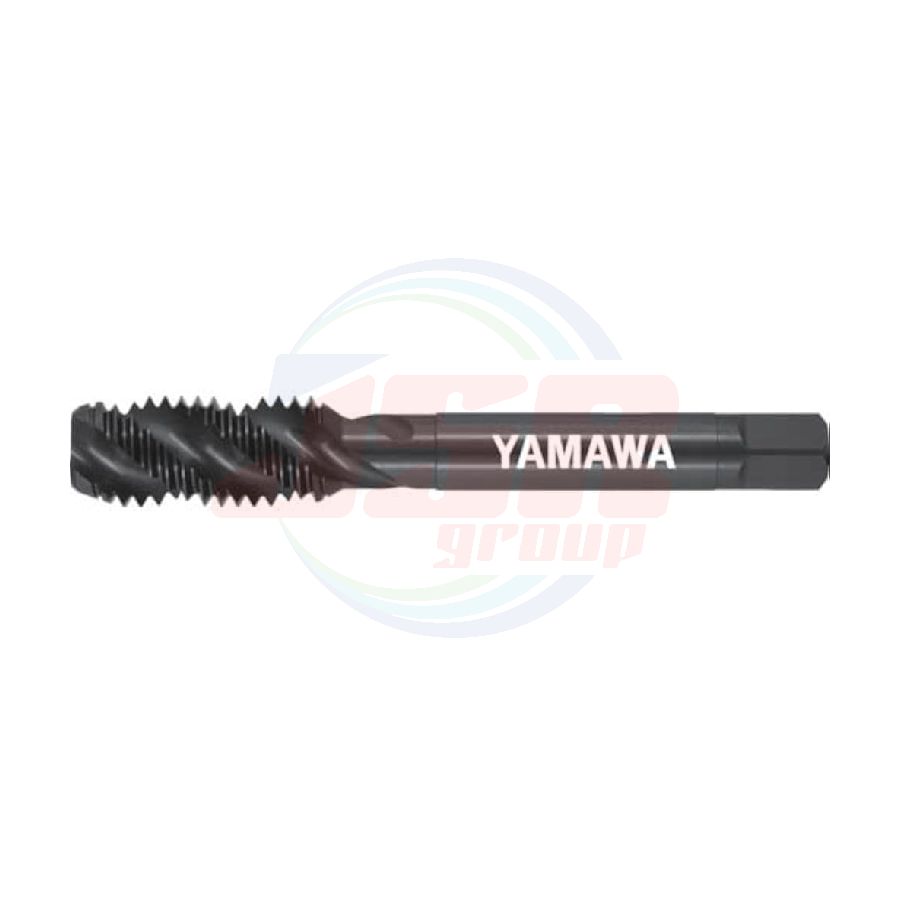

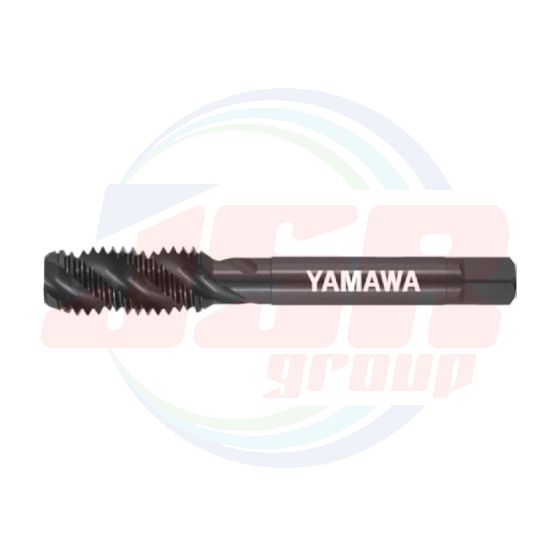

SU-SP / SU+SP | Spiral Fluted Taps for Stainless Steels | YAMAWA

YAMAWA
เป็นคนแรกที่รีวิวสินค้านี้
ราคาต่ำสุด THB 0.00 ราคาปรกติ THB 417.76
*ราคายังไม่รวม VAT
พร้อมส่ง
SKU
YAM-SU-SP / SU+SP
QTY:
0
เพิ่มไปยังรายการโปรด เพิ่มไปเปรียบเทียบ

Product Features

● Ideal for blind hole machining in stainless steel, chromium steel, molybdenum steel. These
materials have remarkably high work hardening properties.
● The optimum design of the thread section reduces the processing burden on each flutes cutting
chamfer.
● Reduces cutting resistance and increases tool life.
● Chip discharge is stable and achieves a good surface finished.
● Improved strength and life expectancy is achieved.
● Use with either synchronous or asynchronous thread processing.

SU-SP / SU+SP | Spiral Fluted Taps for Stainless Steels | YAMAWA
SU-SP / SU+SP | Spiral Fluted Taps for Stainless Steels | YAMAWA
Specification
Product Name and Size.
SU＋SP M2〜M6（coarse thread）
SU−SP 〜M1.7, M2〜M6(fine thread), M8〜, all U, all W
Tapping Speeds depending on Materials

SU+SP　Spiral Fluted Taps for Stainless Steels

          Oversize
Segment：1C

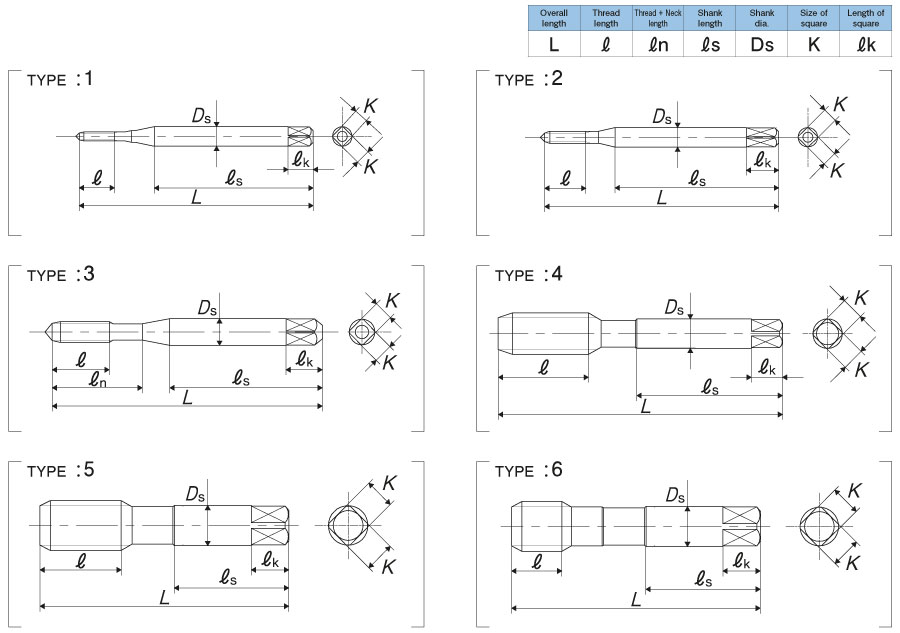

Size Class Code Chamfer L
(mm) 		ℓ
(mm) 		ℓn
(mm) 		ℓs
(mm) 		Ds
(mm) 		K
(mm) 		ℓk
(mm) 		No. of
flutes 		TYPE
For Metric Threads
M2×0.4 P1 SUPP2.0E 2.5P 42 7.2 12 27 3 2.5 5 2 3
M2×0.4 P2 SUPQ2.0E 2.5P 42 7.2 12 27 3 2.5 5 2 3
M2×0.4 P3 SUPR2.0E 2.5P 42 7.2 12 27 3 2.5 5 2 3
M2.3×0.4 P1 SUPP2.3E 2.5P 42 7.2 12 27 3 2.5 5 2 3
M2.3×0.4 P2 SUPQ2.3E 2.5P 42 7.2 12 27 3 2.5 5 2 3
M2.3×0.4 P3 SUPR2.3E 2.5P 42 7.2 12 27 3 2.5 5 2 3
M2.5×0.45 P1 SUPP2.5F 2.5P 46 8.1 14 29 3 2.5 5 2 3
M2.5×0.45 P2 SUPQ2.5F 2.5P 46 8.1 14 29 3 2.5 5 2 3
M2.5×0.45 P3 SUPR2.5F 2.5P 46 8.1 14 29 3 2.5 5 2 3
M2.6×0.45 P1 SUPP2.6F 2.5P 46 8.1 14 29 3 2.5 5 2 3
M2.6×0.45 P2 SUPQ2.6F 2.5P 46 8.1 14 29 3 2.5 5 2 3
M2.6×0.45 P3 SUPR2.6F 2.5P 46 8.1 14 29 3 2.5 5 2 3
M3×0.5 P1 SUPP3.0G 2.5P 46 9 14 26 4 3.2 6 3 3
M3×0.5 P2 SUPQ3.0G 2.5P 46 9 14 26 4 3.2 6 3 3
M3×0.5 P3 SUPR3.0G 2.5P 46 9 14 26 4 3.2 6 3 3
3M0.6 P1 SUPP3.0H 2.5P 46 9 14 26 4 3.2 6 3 3
M3.5×0.6 P1 SUPP3.5H 2.5P 52 11 16 29 5 4 7 3 3
M3.5×0.6 P3 SUPR3.5H 2.5P 52 11 16 29 5 4 7 3 3
M4×0.7 P2 SUPQ4.0I 2.5P 52 11 17 29 5 4 7 3 3
M4×0.7 P3 SUPR4.0I 2.5P 52 11 17 29 5 4 7 3 3
M4×0.7 P4 SUPS4.0I 2.5P 52 11 17 29 5 4 7 3 3
4M0.75 P2 SUPQ4.0J 2.5P 52 11 17 29 5 4 7 3 3
M5×0.8 P2 SUPQ5.0K 2.5P 60 13 22 33 5.5 4.5 7 3 3
M5×0.8 P3 SUPR5.0K 2.5P 60 13 22 33 5.5 4.5 7 3 3
M5×0.8 P4 SUPS5.0K 2.5P 60 13 22 33 5.5 4.5 7 3 3
5M0.9 P2 SUPQ5.0L 2.5P 60 13 22 33 5.5 4.5 7 3 3
M6×1 P2 SUPQ6.0M 2.5P 62 15 26 33 6 4.5 7 3 3
M6×1 P3 SUPR6.0M 2.5P 62 15 26 33 6 4.5 7 3 3
M6×1 P4 SUPS6.0M 2.5P 62 15 26 33 6 4.5 7 3 3



SU-SP　Spiral Fluted Taps for Stainless Steels

          Oversize
Segment：1C
Size Class Code Chamfer L (mm) ℓ (mm) ℓn (mm) ℓs (mm) Ds (mm) K (mm) ℓk (mm) No. of flutes TYPE
M1.4×0.3 P1 SUMP1.4C 2.5P 36 5.4 - 24 3 2.5 5 2 1
M1.6×0.35 P1 SUMP1.6D 2.5P 36 6.3 - 24 3 2.5 5 2 2
M1.7×0.35 P1 SUMP1.7D 2.5P 36 6.3 - 24 3 2.5 5 2 2
M1.7×0.35 P2 SUMQ1.7D 2.5P 36 6.3 - 24 3 2.5 5 2 2
M6×0.75 P2 SUMQ6.0J 2.5P 62 15 26 33 6 4.5 7 3 3
M7×1 P2 SUMQ7.0M 2.5P 70 19 - 36 6.2 5 8 3 4
M8×1.25 P2 SUMQ8.0N 2.5P 70 19 - 36 6.2 5 8 3 4
M8×1.25 P3 SUMR8.0N 2.5P 70 19 - 36 6.2 5 8 3 4
M8×1.25 P4 SUMS8.0N 2.5P 70 19 - 36 6.2 5 8 3 4
M8×1 P2 SUMQ8.0M 2.5P 70 19 - 36 6.2 5 8 3 4
M8×0.75 P2 SUMQ8.0J 2.5P 70 19 - 36 6.2 5 8 3 4
M10×1.5 P2 SUMQ010O 2.5P 75 23 - 38 7 5.5 8 3 4
M10×1.5 P3 SUMR010O 2.5P 75 23 - 38 7 5.5 8 3 4
M10×1.5 P4 SUMS010O 2.5P 75 23 - 38 7 5.5 8 3 4
M10×1.25 P2 SUMQ010N 2.5P 75 23 - 38 7 5.5 8 3 4
M10×1.25 P3 SUMR010N 2.5P 75 23 - 38 7 5.5 8 3 4
M10×1.25 P4 SUMS010N 2.5P 75 23 - 38 7 5.5 8 3 4
M10×1 P2 SUMQ010M 2.5P 75 23 - 38 7 5.5 8 3 4
M10×1 P4 SUMS010M 2.5P 75 23 - 38 7 5.5 8 3 4
M12×1.75 P2 SUMQ012P 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.75 P3 SUMR012P 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.75 P4 SUMS012P 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.5 P2 SUMQ012O 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.5 P3 SUMR012O 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.5 P4 SUMS012O 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.25 P2 SUMQ012N 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.25 P3 SUMR012N 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1.25 P4 SUMS012N 2.5P 82 26 - 42 8.5 6.5 9 3 4
M12×1 P2 SUMQ012M 2.5P 82 26 - 42 8.5 6.5 9 3 4
M14×2 P2 SUMQ014Q 2.5P 88 26 - 45 10.5 8 11 3 4
M14×2 P3 SUMR014Q 2.5P 88 26 - 45 10.5 8 11 3 4
M14×2 P4 SUMS014Q 2.5P 88 26 - 45 10.5 8 11 3 4
M14×1.5 P2 SUMQ014O 2.5P 88 26 - 45 10.5 8 11 3 4
M14×1.5 P4 SUMS014O 2.5P 88 26 - 45 10.5 8 11 3 4
M14×1 P2 SUMQ014M 2.5P 88 26 - 45 10.5 8 11 3 4
M16×2 P2 SUMQ016Q 2.5P 95 26 - 48 12.5 10 13 3 4
M16×2 P3 SUMR016Q 2.5P 95 26 - 48 12.5 10 13 3 4
M16×2 P4 SUMS016Q 2.5P 95 26 - 48 12.5 10 13 3 4
M16×1.5 P2 SUMQ016O 2.5P 95 26 - 48 12.5 10 13 3 4
M16×1.5 P4 SUMS016O 2.5P 95 26 - 48 12.5 10 13 3 4
M18×2.5 P3 SUMR018R 2.5P 100 33 - 51 14 11 14 4 4
M18×2.5 P4 SUMS018R 2.5P 100 33 - 51 14 11 14 4 4
M18×1.5 P2 SUMQ018O 2.5P 100 33 - 51 14 11 14 4 4
M18×1.5 P4 SUMS018O 2.5P 100 33 - 51 14 11 14 4 4
M20×2.5 P3 SUMR020R 2.5P 105 33 - 50 15 12 15 4 5
M20×2.5 P4 SUMS020R 2.5P 105 33 - 50 15 12 15 4 5
M20×1.5 P3 SUMR020O 2.5P 105 33 - 50 15 12 15 4 5
M20×1.5 P4 SUMS020O 2.5P 105 33 - 50 15 12 15 4 5
M22×2.5 P3 SUMR022R 2.5P 115 33 - 55 17 13 16 4 5
M22×2.5 P4 SUMS022R 2.5P 115 33 - 55 17 13 16 4 5
M22×2.5 P5 SUMT022R 2.5P 115 33 - 55 17 13 16 4 5
M22×1.5 P3 SUMR022O 2.5P 115 33 - 55 17 13 16 4 5
M22×1.5 P4 SUMS022O 2.5P 115 33 - 55 17 13 16 4 5
M24×3 P3 SUMR024S 2.5P 120 39 - 55 19 15 18 4 5
M24×3 P4 SUMS024S 2.5P 120 39 - 55 19 15 18 4 5
M24×3 P5 SUMT024S 2.5P 120 39 - 55 19 15 18 4 5
M24×2 P3 SUMR024Q 2.5P 120 39 - 55 19 15 18 4 5
M24×1.5 P3 SUMR024O 2.5P 120 39 - 55 19 15 18 4 5
M24×1.5 P4 SUMS024O 2.5P 120 39 - 55 19 15 18 4 5
M27×3 P3 SUMR027S 2.5P 130 39 - 60 20 15 18 4 5
M27×1.5 P3 SUMR027O 2.5P 130 39 - 60 20 15 18 4 5
M30×3.5 P4 SUMS030T 2.5P 135 46 - 62 23 17 20 4 5
M30×1.5 P3 SUMR030O 2.5P 135 46 - 62 23 17 20 4 5
M33×3.5 P4 SUMS033T 2.5P 145 46 - 67 25 19 22 4 5
M36×4 P4 SUMS036U 2.5P 155 52 - 71 28 21 24 4 5
M39×4 P4 SUMS039U 2.5P 165 52 - 76 30 23 26 4 5
M42×4.5 P4 SUMS042V 2.5P 175 59 - 81 32 26 30 4 5
M42×1.5 P3 SUMR042O 2.5P 175 27 - 81 32 26 30 4 6
M45×4.5 P4 SUMS045V 2.5P 180 59 - 83 35 26 30 4 5
M48×5 P4 SUMS048W 2.5P 185 65 - 85 38 29 32 4 5
For Unified Threads
No.2-56UNC P1 SUMPUN2E 2.5P 42 8.1 12 27 3 2.5 5 2 3
No.3-48UNC P1 SUMPUN3F 2.5P 46 8.1 14 29 3 2.5 5 2 3
No.4-40UNC P1 SUMPUN4H 2.5P 46 9 14 25 4 3.2 6 2 3
No.4-48UNF P1 SUMPUN4F 2.5P 46 9 14 25 4 3.2 6 2 3
No.5-40UNC P1 SUMPUN5H 2.5P 52 11 16 28 5 4 7 3 3
No.5-44UNF P1 SUMPUN5G 2.5P 52 11 16 28 5 4 7 3 3
5/16-18UNC P2 SUMQU05O 2.5P 70 19 - 36 6.2 5 8 3 4
5/16-24UNF P2 SUMQU05M 2.5P 70 19 - 36 6.2 5 8 3 4
3/8-16UNC P2 SUMQU06P 2.5P 75 23 - 38 7 5.5 8 3 4
3/8-24UNF P2 SUMQU06M 2.5P 75 23 - 38 7 5.5 8 3 4
7/16-14UNC P3 SUMRU07Q 2.5P 82 26 - 42 8.5 6.5 9 3 4
7/16-20UNF P2 SUMQU07N 2.5P 82 26 - 42 8.5 6.5 9 3 4
1/2-13UNC P3 SUMRU08R 2.5P 88 26 - 45 10.5 8 11 3 4
1/2-20UNF P2 SUMQU08N 2.5P 88 26 - 45 10.5 8 11 3 4
5/8-11UNC P3 SUMRU10U 2.5P 95 26 - 48 12.5 10 13 3 4
5/8-18UNF P2 SUMQU10O 2.5P 95 26 - 48 12.5 10 13 3 4
3/4-10UNC P3 SUMRU12V 2.5P 105 33 - 50 15 12 15 4 5
3/4-16UNF P3 SUMRU12P 2.5P 105 33 - 50 15 12 15 4 5
7/8-9UNC P3 SUMRU14W 2.5P 115 33 - 55 17 13 16 4 5
7/8-14UNF P3 SUMRU14Q 2.5P 115 33 - 55 17 13 16 4 5
1 -8UNC P3 SUMRU16X 2.5P 125 39 - 58 19 15 18 4 5
1 -12UNF P3 SUMRU16S 2.5P 125 39 - 58 19 15 18 4 5
For Unified Threads
3/16W24 P2 SUMQW03M 2.5P 60 13 21 32 5.5 4.5 7 3 3
1/4W20 P2 SUMQW04N 2.5P 62 15 26 33 6 4.5 7 3 3
5/16W18 P2 SUMQW05O 2.5P 70 19 - 36 6.2 5 8 3 4
3/8W16 P2 SUMQW06P 2.5P 75 23 - 38 7 5.5 8 3 4
7/16W14 P3 SUMRW07Q 2.5P 82 26 - 42 8.5 6.5 9 3 4
1/2W12 P3 SUMRW08S 2.5P 88 26 - 45 10.5 8 11 3 4
9/16W12 P3 SUMRW09S 2.5P 95 26 - 48 12.5 10 13 3 4
5/8W11 P3 SUMRW10U 2.5P 95 26 - 48 12.5 10 13 3 4
3/4W10 P3 SUMRW12V 2.5P 105 33 - 50 15 12 15 4 5
7/8W9 P3 SUMRW14W 2.5P 115 33 - 55 17 13 16 4 5
1W8 P3 SUMRW16X 2.5P 125 39 - 58 19 15 18 4 5
