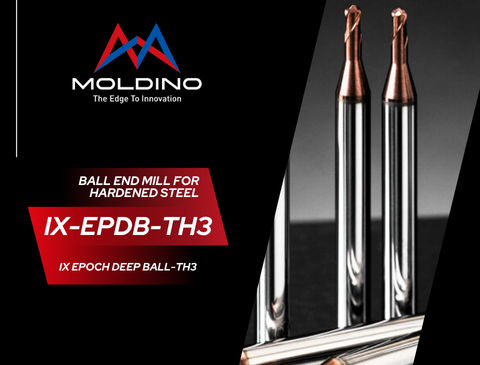

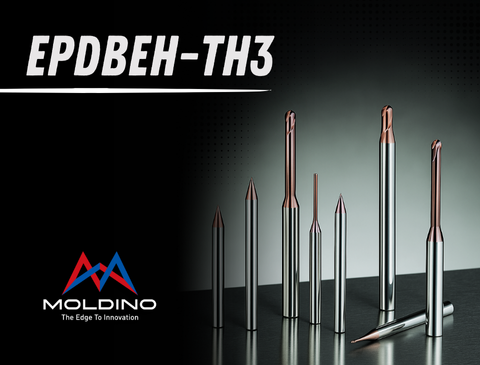

ดอกเอ็นมิลสำหรับกัดเหล็กแข็ง 60 HRC รุ่น EPDBEH-TH3

เปลี่ยนทุกความท้าทายในการกัดเหล็กชุบแข็ง... ให้กลายเป็นเรื่องง่าย ด้วยดอกเอ็นมิล EPDBEH-TH3 จาก MOLDINO

จุดเด่นที่คุณไม่ควรพลาด:

- พิชิตเหล็กแข็งได้อย่างมั่นใจ รองรับวัสดุเหล็กแข็งระดับ 60 HRC+ เช่น:
  • เหล็กกล้าชุบแข็ง (Hardened Steel)
  • เหล็กกล้าเครื่องมือ (Tool Steel)
  • เหล็กกล้าดาย (Die Steel)
  • เหล็กกล้าแม่พิมพ์ (Mold Steel)

- ความเร็วสูง | ความแม่นยำสูง:
  • ใช้รอบตัดได้เร็วโดยไม่เสียคุณภาพผิว

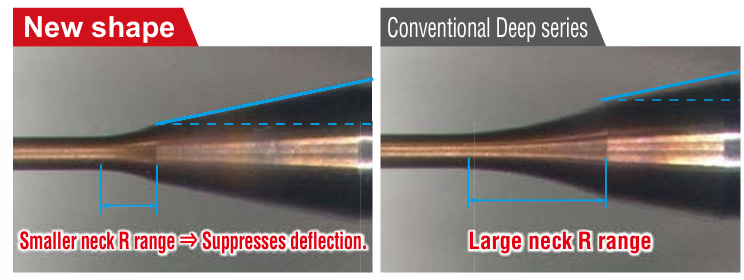

  • ลดการสั่นสะเทือน ด้วยโครงสร้างคอสั้น แข็งแรงแบบ Strong Neck
  • เหมาะกับงานละเอียดที่ต้องการความเที่ยงตรงสูง

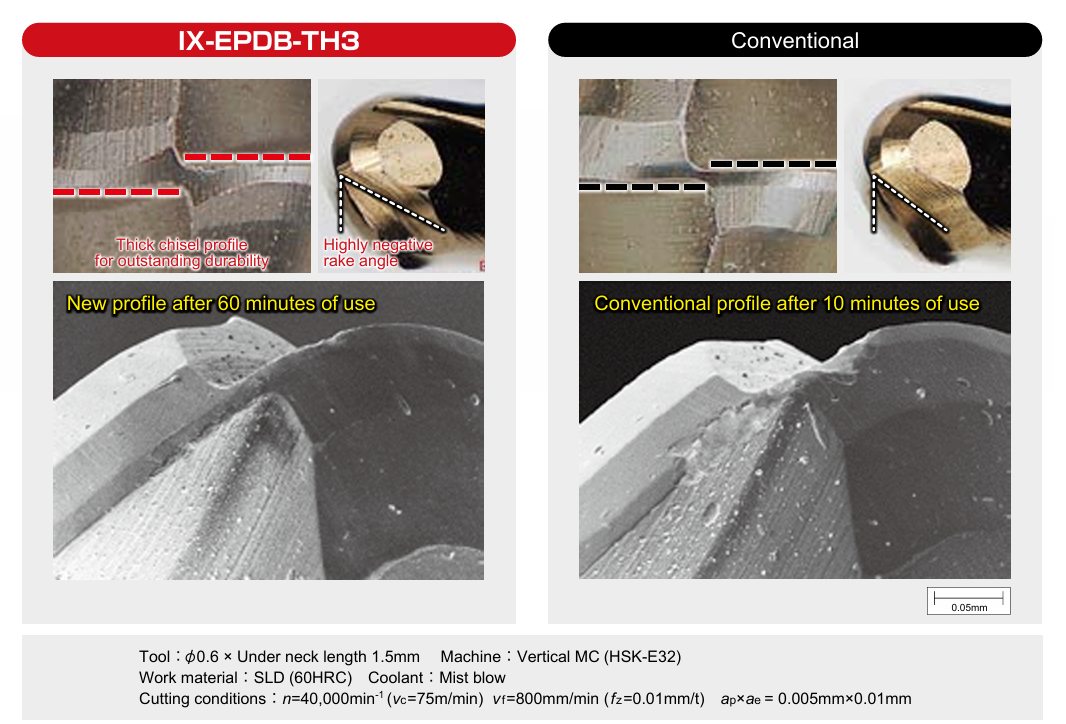

พลังแห่งนวัตกรรม: TH3 Coating

การเคลือบผิวระดับพรีเมียมเพื่อ "งานกัดเหล็กแข็ง" โดยเฉพาะ

Features and performance
・High hardness coating with excellent wear resistance and heat resistance ・Has excellent thermal shock resistance enables to suppress sudden chipping ・Long tool life when cutting high-hardness materials (50HRC or higher) such     as hardened steel
Target steel grad
・Hardened steel (especially

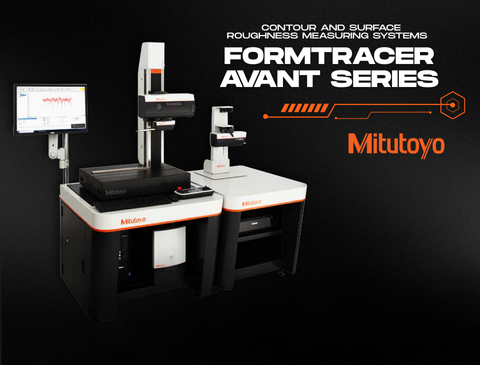

Contour and Surface Roughness Measuring Systems FORMTRACER Avant Series

FORMTRACER Avant SERIES
Contour and Surface Roughness Measur ing Systems

Speed and operability like never before
A revolutionary measuring system that defies conventional thinking.

The hybrid measuring system “FORMTRACER Avant Series" allows for measurements of both contour and surface roughness features. Equipped with “speed” enabling higher measurement efficiency, “operability” with automation and a wide variety of features, and expandability which offers upgrading to a complex system by incorporating optional detectors, this revolutionary measuring system defies conventional thinking.

CONTRACER  Contour Continuous upper/lower direction measurement combined with a measurement adjustable feature*, enables the continuous measurement of upper and lower face contours, including the effective diameter of screw-threads.The selectable measuring force feature* eliminates the need to set the measuring force by

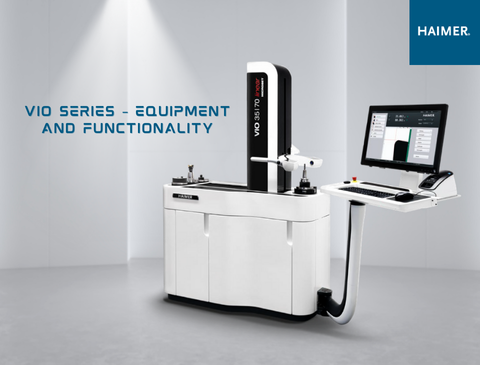

VIO SERIES – EQUIPMENT AND FUNCTIONALITY

VIO linear – maximum ease of use and functionality

Optimize process reliability in your production with fully automatic measurement capabilities. The open device platform allows for the integration of both new and existing production processes.

Maximum stability and precision
The FEM-optimized, thermally stable cast iron construction of the VIO linear series ensures accurate measuring results and equipment longevity. Additionally, highly dynamic, wear-free linear drives ensure accurate long-term quality. The parallel drive and guidance system ensures optimal distribution of forces and guarantees ±2 µm measurement repeatability.

Highlights
– High rigidity ensures low distortion even at the maximum permissible load
– FEM-optimized and thermally stable cast iron construction
– Maximum tool weight 352 lbs (160 kg)
– Fast, silent and highly accurate cutting edge approach via unique linear drive

Leader in innovation:  – Fully automatic measuring

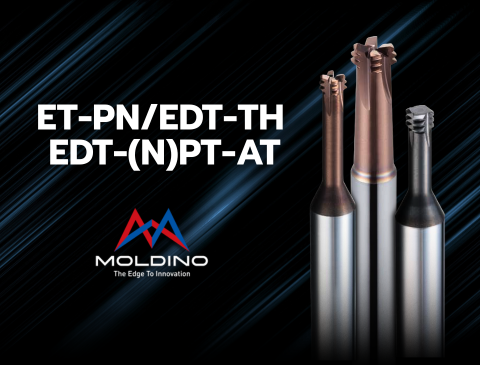

ET-PN/EDT-TH EDT-(N)PT-ATH

Carbide Thread Mill series

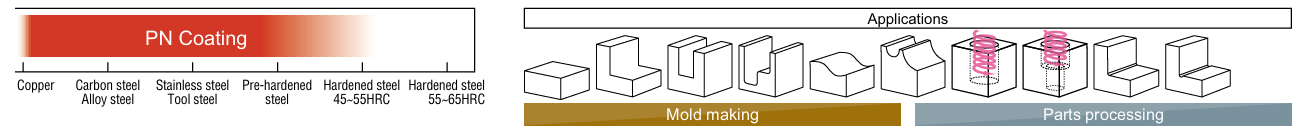

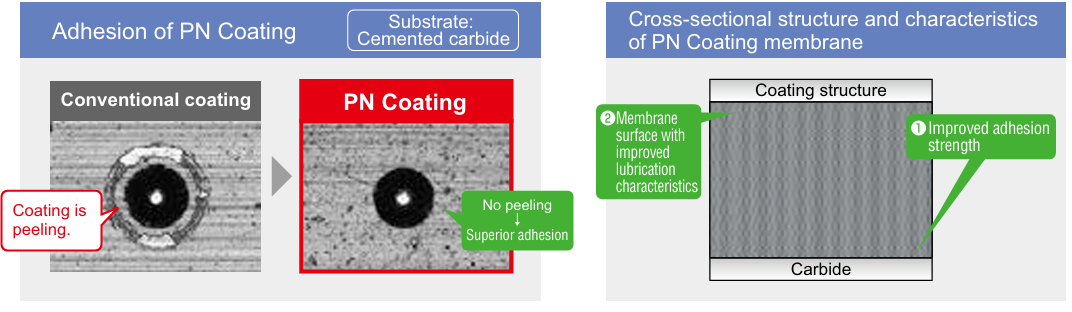

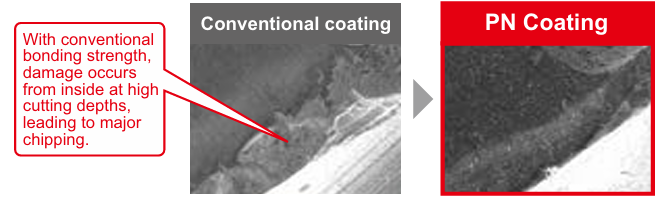

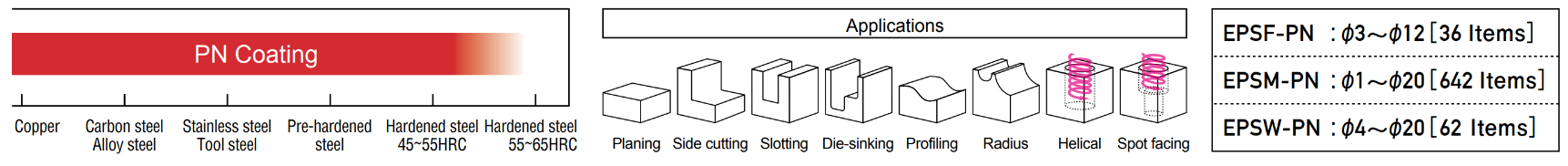

PN Coating

Epoch Thread Mill

		Drilling
		Worries about taps Large numbers of tools Difficulties of tapping Effective thread Tap causes tearing and
	Ensures a high-quality finished surface!
	Finer chips minimize tearing and gouging. This is especially effective in preventing leaks from pipe screws.
	One tool - various types of thread milling
	Right hand, left-hand and fine thread milling can be performed by just changing the NC program.

ATH Coating

Epoch Thread Mil

Tapping
breaking off inside... and processes required... hardened steel... is too short... gouging on machined surface...
Threads can be cut close to end!
Ideal for machining when pilot hole depth allows no margins
Cutting conditions can be freely set (Helical milling)
Unlike when using taps, synchronizing the rotation and feed rates is not necessary. Since the load is small, these tools can be used even on machines having

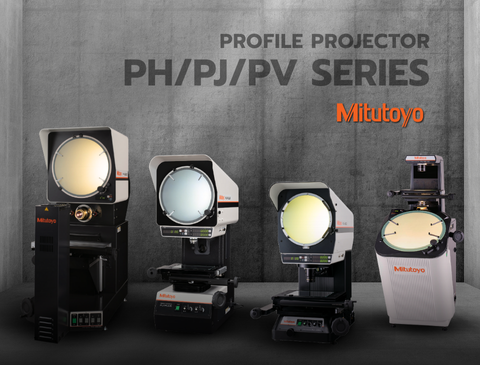

Projector PH/PJ/PV Series

Each Mitutoyo profile projector is a measuring machine that performs measurements, inspections, and observations efficiently by projecting an image of a test workpiece on the stage onto a viewing screen under accurate magnification.The inherently non-contact measurement method of profile projectors makes this type of instrument highly suitable for measuring small parts that are unmeasurable with general-purpose contact instruments along with easily deformed plastic parts. Profile projectors can also be used to observe the surface profiles of workpieces or inspect minute assemblies with surface illumination. Additionally, a wide selection of accessories allows for measurement and inspection of various workpieces.These machines can be installed and used in a wide range of environments from inspection rooms to manufacturing and processing sites.

Provides reliable measurements in manufacturing site environments.
