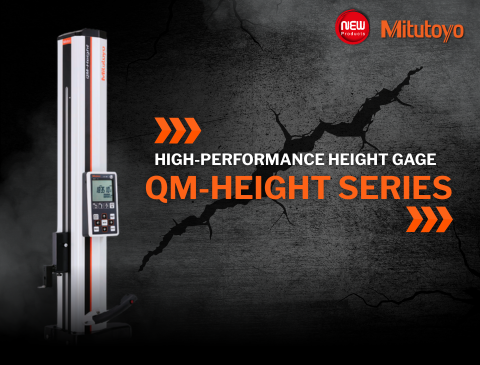

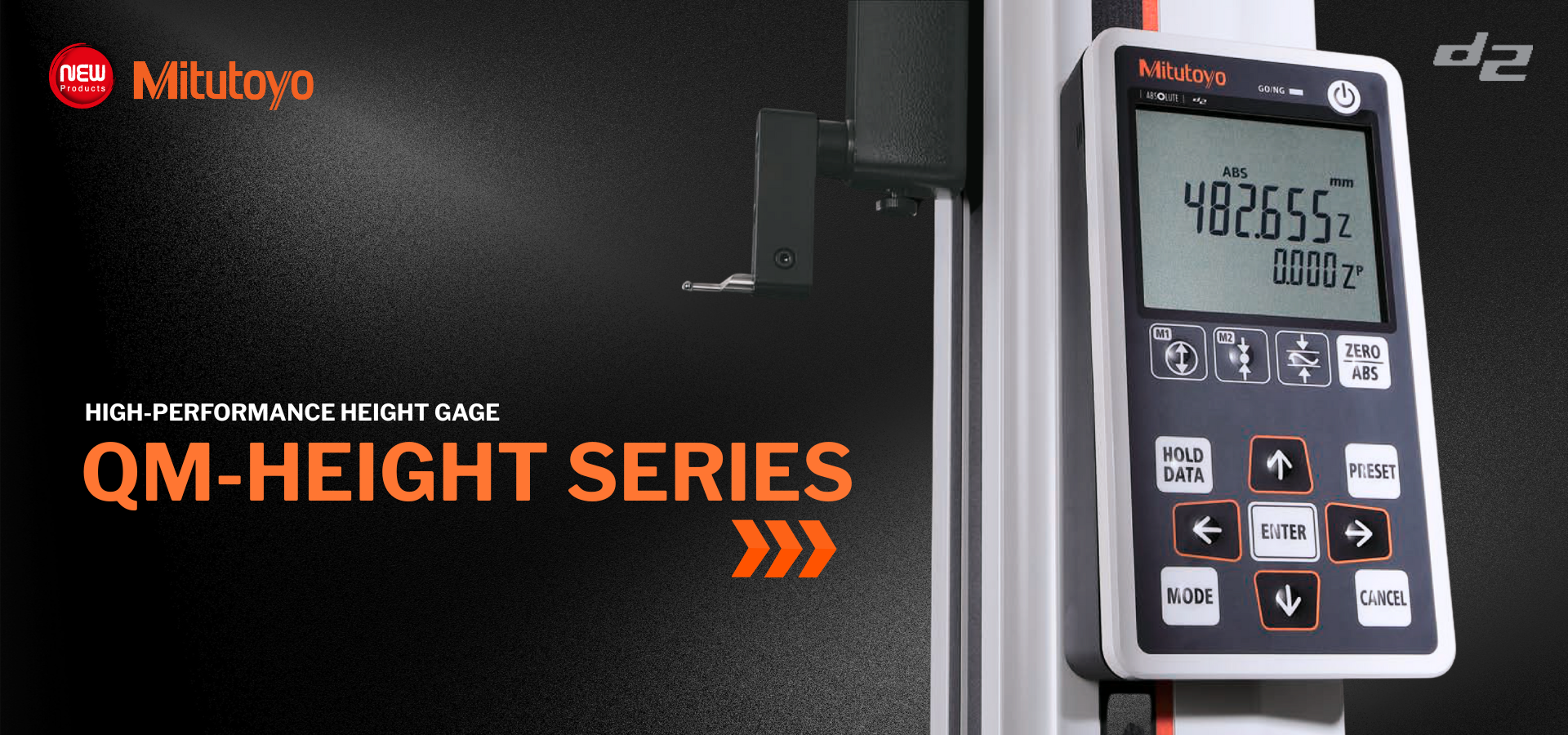

QM-Height Series - High-Performance Height Gage

This is a High-accuracy digital height gauge and multifunction measurement.

Features

• Best-in-class accuracy ±(2.4+2.1L/600) μm
• Built-in pneumatic flotation system enables smooth movement over a surface plate. Models without the air suspension feature are also available.
• Simple-to-use control panel enables most measurements to be made with a single keystroke.
• Battery life of 1200 hours in continuous use with four AA batteries, an improvement from 300 hours.
• Install the optional U-WAVE-T measurement data communication system to output measurement data directly to Excel or SPC software on your PC.

GO/±NG judgment by LED and display symbols

LEDs indicate tolerance judgment status – green for GO, red for +NG, and orange for -NG. Status is also indicated by corresponding symbols appearing on the display.

Intuitive buttons and layout

The symbols are for frequently used keys.

Cross-keys provide better operability.

Inside/outside

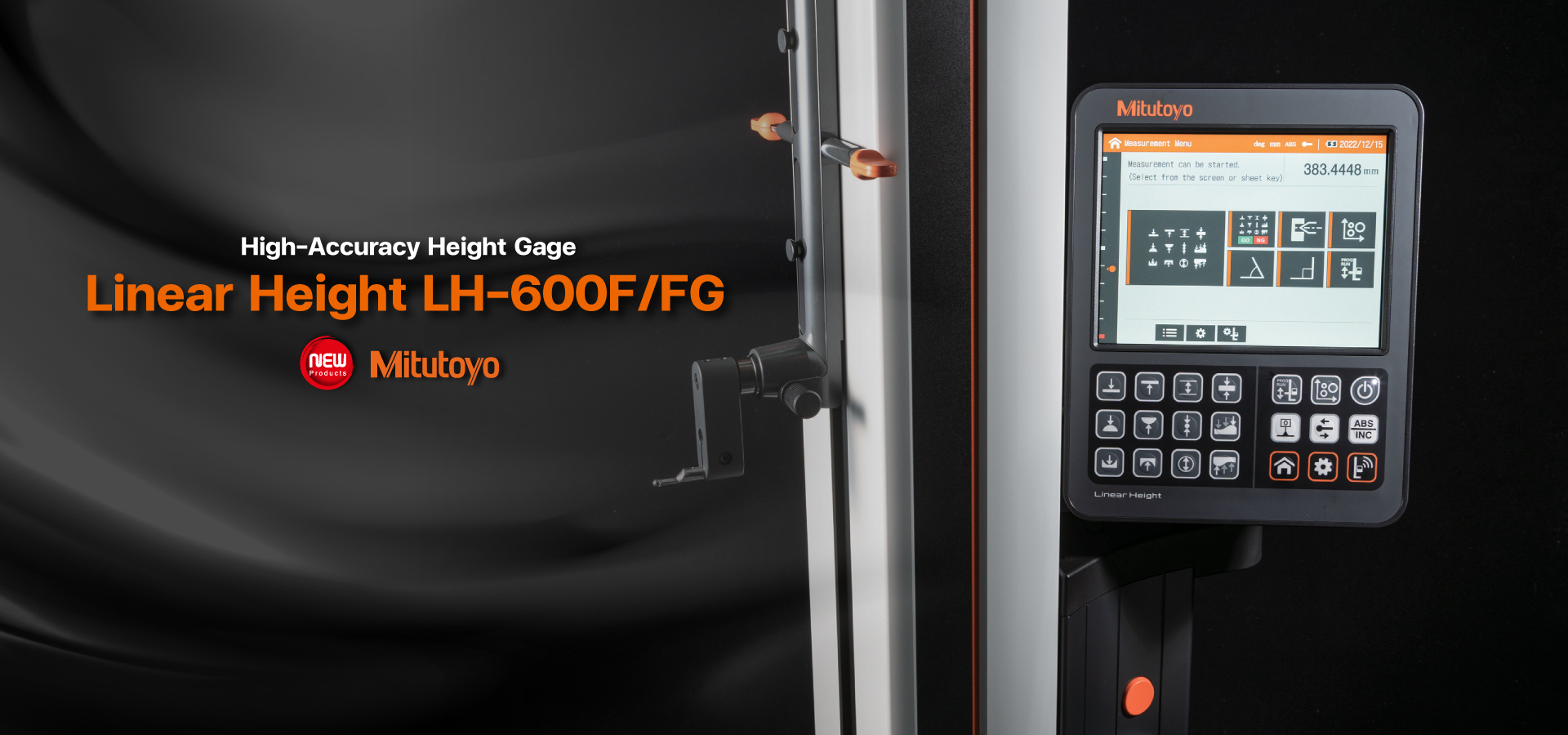

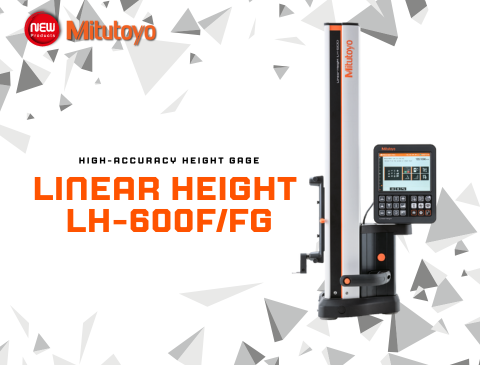

High-Accuracy Height Gage Linear Height LH-600F/FG

high-precision 2D linear height gauge for complex work provides high precision up to ± (1.1+0.6L/600) μm

Easy operation using keypad and touch screen navigation, even suitable for beginners

Conduct various measurements such as 2D measurement and perpendicularity measurement with just one tool

Versatile measurements through optional probes

Enhanced data output functions make it easier to manage your measurement data

Easy operation using keypad and touch screen navigation

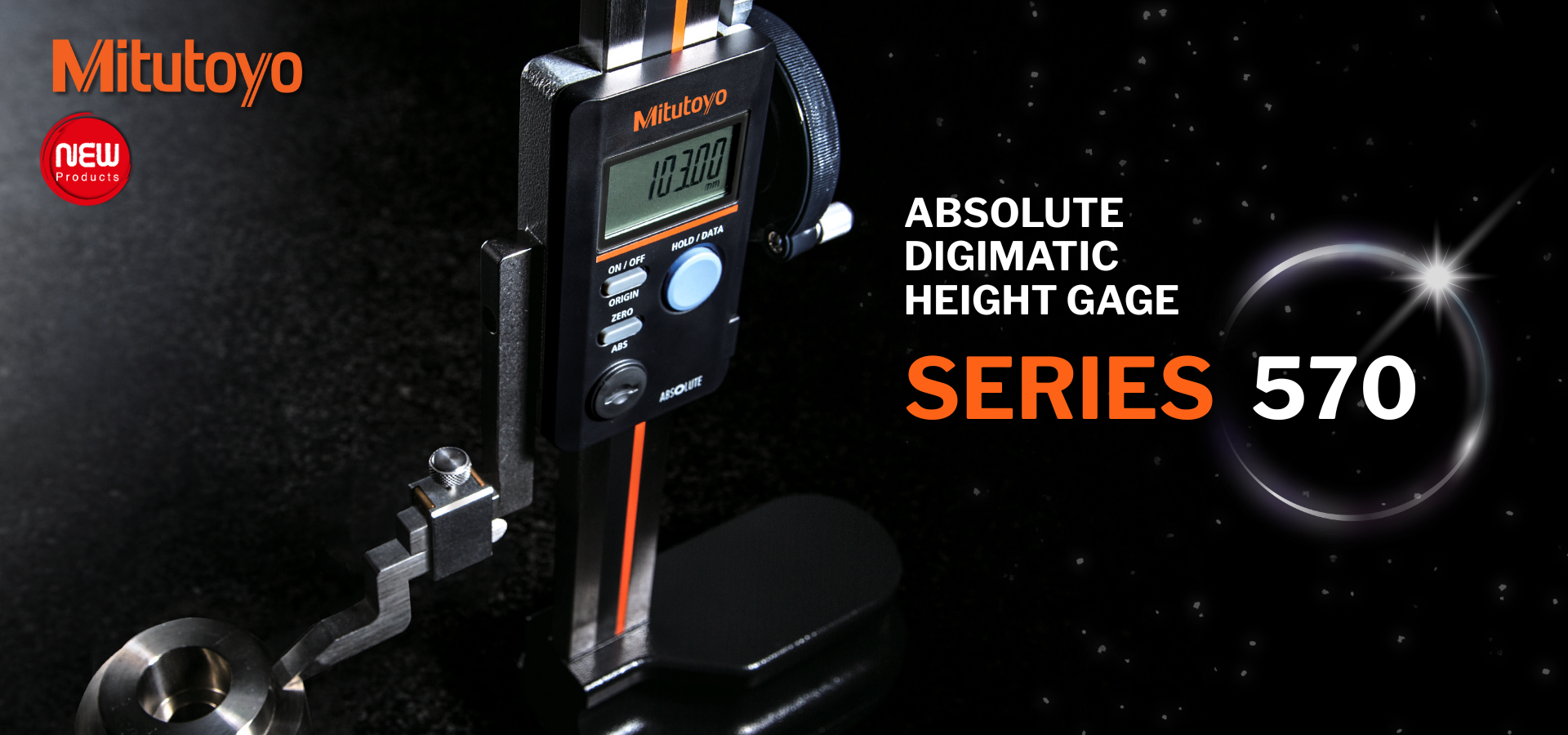

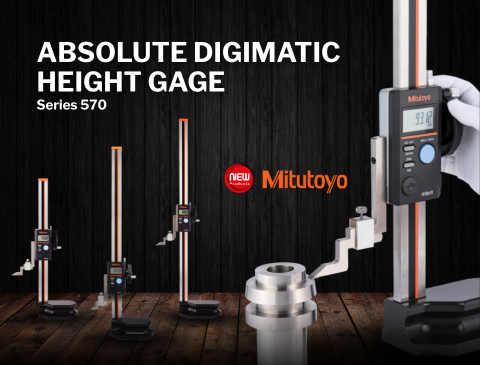

ABS Digimatic Height Gage Series 570

The New Standard in Smart and Reliable Height Measurement

Feature

Maximum permissible error EMPE :  ±0.03 mm, ±0.05 mm, ±0.0015 in/±0.03 mm,±0.0020 in/±0.05 mm

Measuring range :  0 to 300 mm,0 to 600 mm,0 to 12 in/0 to 300 mm, 0 to 18 in/0 to 450 mm, 0 to 24 in/0 to 600 mm

Resolution :  0.01 mm,0.0005 in/0.01 mm

Functions :  ON/OFF, ORIGIN, ZERO/ABS, HOLD/DATA, inch/mm conversion*

Drive method :  Slider-feed wheel (manual)

Data output :  DIGIMATIC d1

Max. response speed : Unlimited

LCD character height :  12 mm

Helps transform manufacturing sites into smart factories

The design of the case allows for easy installation of U-WAVE (optional), which enables wireless transmission of measurement data, promoting smarter use of data in manufacturing sites.

Supports smooth and reliable measurement operations

The handle for moving the slider enables smooth vertical movement. In addition, the highly rigid pillars and large clamp levers

Evolutionary Advancement

 MEDICAL

-Three unique industries benefiting from Mitutoyo’s high reliability. «Medical»

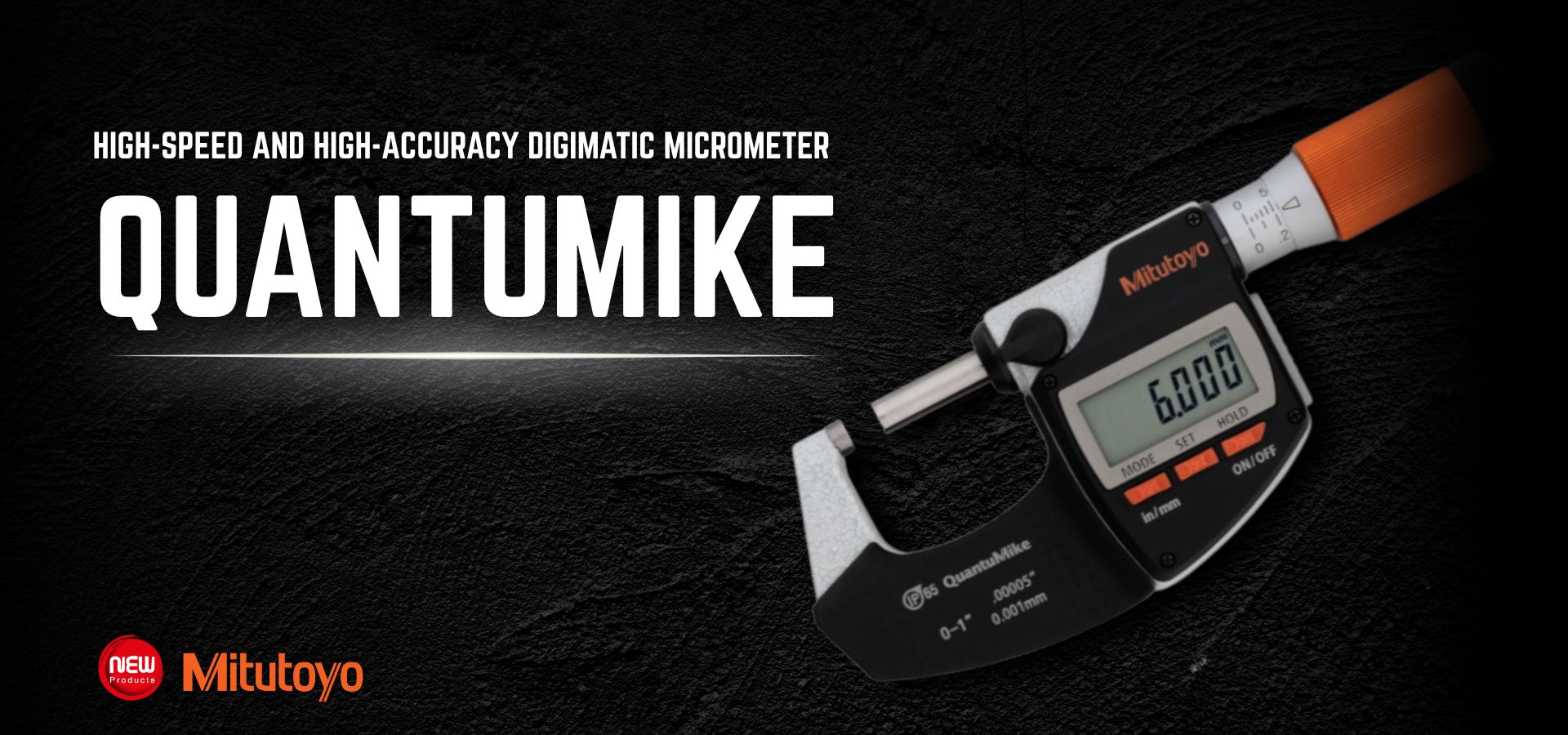

Digital Micrometer QuantuMike IP65

This is an IP65 micrometer  Achieves spindle movement 4 times faster than standard micrometers. Enables more efficient measurement work through speedy movement and excellent accuracy The micrometer achieves protection level IP65 Excellent resistance against water and  water-resistant and dustresistant features a ratchet thimble mechanism that allows stable measurement to be performed design ensures easy single-handed

Model: 293-180-40

Measurement Range: 0-1 inch (0-25.4 mm)

Digital step: 0.00005 " / 0.001 mm

Display: Digital LCD, character height 7.5 mm

Data output: Digimatic S1

Max.Permissible Error J MPE: ±0.00005 "

High speed & High accuracy  High-speed movement for faster measurement and High accuracy measurement of ±1 μm

Reliable  Equipped with functions including tolerance judgment and calculation capabilities.

Easy to use Large display with excellent visibility and  Large buttons and  Large buttons and key customization
