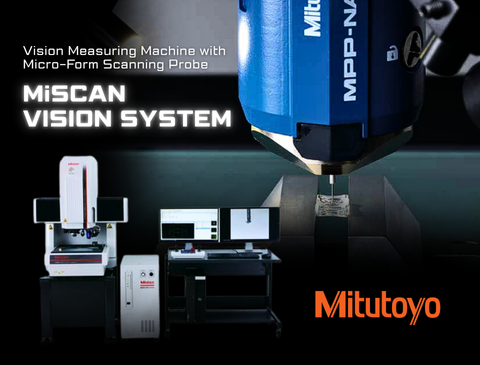

MiSCAN Vision System

A thoroughbred microscopic-form measurement system, developed from coordinate measuring machine and vision measurement system technology

Highly accurate autonomous scanning covering from micro-form to large workpieces

Newly developed MPP-NANO probe on which styli as small as 125 µm diameter can be mounted achieves autonomous scanning of fine detail.Using the observation camera, the approach to the workpiece can be easily performed while also checking for dirt and scratches on the workpiece. The highly proven SP25M scanning probe is also supported so the system can also be used for large workpieces as well as small.

Vision measurement functions provide high level performance

Uses the same image head as the Quick Vision series, the best-selling vision measuring system. Also equipped with the same optical system as the Quick Vision, multiple lighting functions and excellent evaluation software to provide high performance.

Measuring machine well suited to micro-form

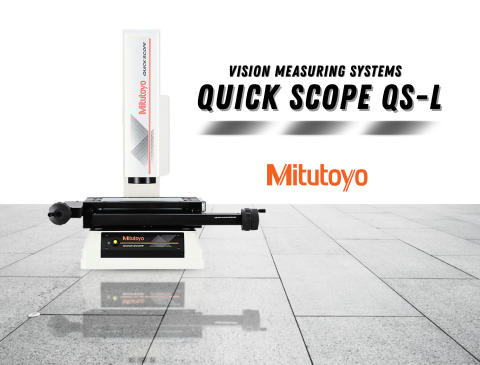

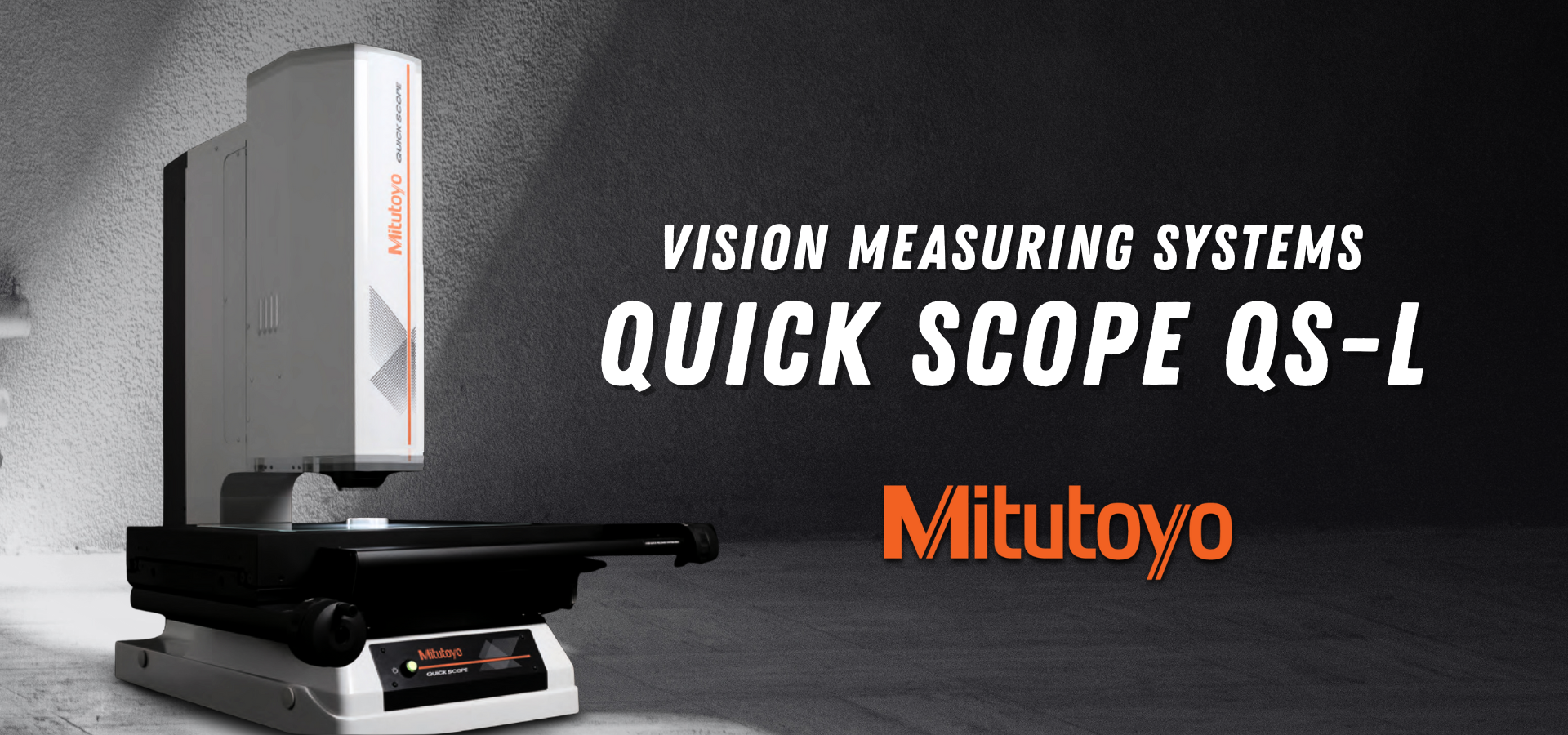

QUICK SCOPE QS-L

Height measurement now available from one machine

High-speed image auto focus achieving height measurement now standard equipment. Measurements thus far performed separately using an optical measuring instrument and an indicator are now integrated into one machine.

Reliable small-parts measurement

High-speed 7X optical zoom with an interchangeable objective lens unit provides sharp and bright images. Measures details that cannot even be recognized when using digital zoom.

Highlights hard-to-see edges

High-intensity 4-quadrant LED ring light generates shadows to highlight edges that otherwise would be practically invisible.

Problems with simple dimensional measuring devices

CNC Coordinate Measuring Machine MiSTAR 555

MiSTAR 555

Highly Environment-resistant Coordinate Measuring Machine,Allowing near-line or in-line inspection.

MiSTAR 555 is a CNC coordinate measuring machine conceived to be a “measuring machine for any environment”. Wide accuracy-guaranteed temperature range, environment-resistant absolute scale, and all-in-one space-saving design. With performance that sets it apart from conventional coordinate measuring machines, MiSTAR 555 will boost your productivity.

Environment

Making measurements in harsh shop floor environments possible.

With an environment-resistant absolute scale*1 and revamped body structure, MiSTAR 555 is a contamination-resistant coordinate measuring machine. Highly reliable as a result of real-time temperature compensation technology that guarantees accuracy over a wide temperature range, it delivers a length measurement error of just E0, MPE of 2.2 + 3L/1000 μm*2. MiSTAR 555 can be installed and operated next to machine

CNC Vision Measuring System QUICK VISION Active Series

Easy-to-operate, space-saving model with advanced functionality to meet various needs

High Efficiency

Flexible Utility

Simple but Advanced Platform

High Efficiency

Constant attendance is not required. The operator can engage in other tasks.

Bee-1

Automatic Tapped Hole Inspection Device

Automatic 100% inspection without any omission Dramatic reduction in the inspection time
