Digimatic Height Gage SERIES 192

Height gauges feature improved ease of operation and enhanced functionality




Resolution switchable to 0.01 or 0.005 mm

Simple switching operation

Output function for all models

Connectable to the Digimatic Mini-processor DP-1VR, or to a PC via the input tool



Highly efficient operation plus preset-function convenience

Preset functions enable two reference planes to be set relative to surface plate datum

• Example of preset 1
To measure a height of 70 mm, with a reference plane height of 50 mm
• Example of preset 2
 To measure a height of 130 mm, with a reference plane height of 150 mm

Large LCD characters

Character height of 11 mm makes display easy to read and avoids eyestrain.

Slider handle

Inclined handle improves slider ergonomics.

HD-30AX display

• Design registration pending• Large function buttons. Frequently used buttons are positioned on the right-hand side of the panel for easy operation.
• Uses the proven alarm system as used on previous models.

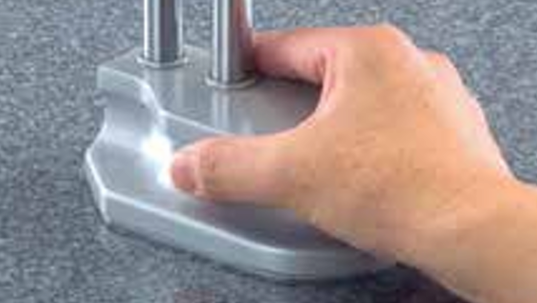

Base

Base is shaped to offer a secure grip



Options

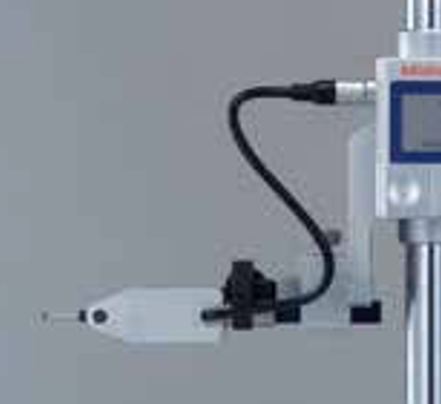

•Bidirectional touch signal probe for Multi-function type

Code No. metric  inch
192-007 192-008
Measuring direction Two-directional
Contact method Normally open
Prove overtravel 1.5 mm
Probe tip type ø3 mm carbide ball
Repeatability (σ) 2μm
Cable length Approx. 150 mm
Measuring force 0.4 N
Standard accessories Holder arm, clamp

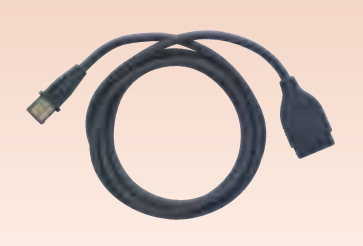

*The Multi-function type has a probe-ball diameter correction function. Part No.905338: 1 m
Part No.905409: 2 m



Standard type with Digimatic output

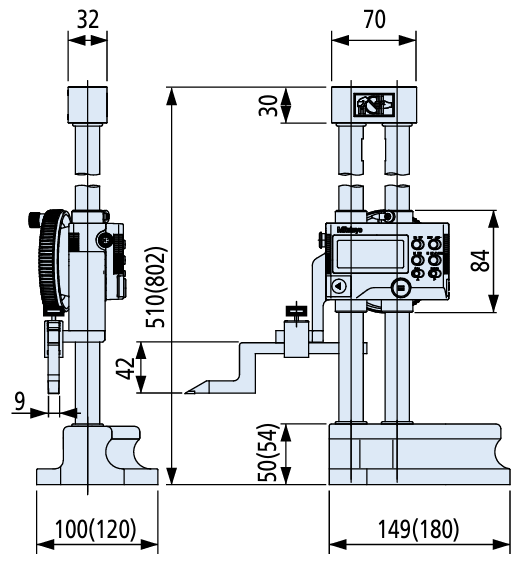

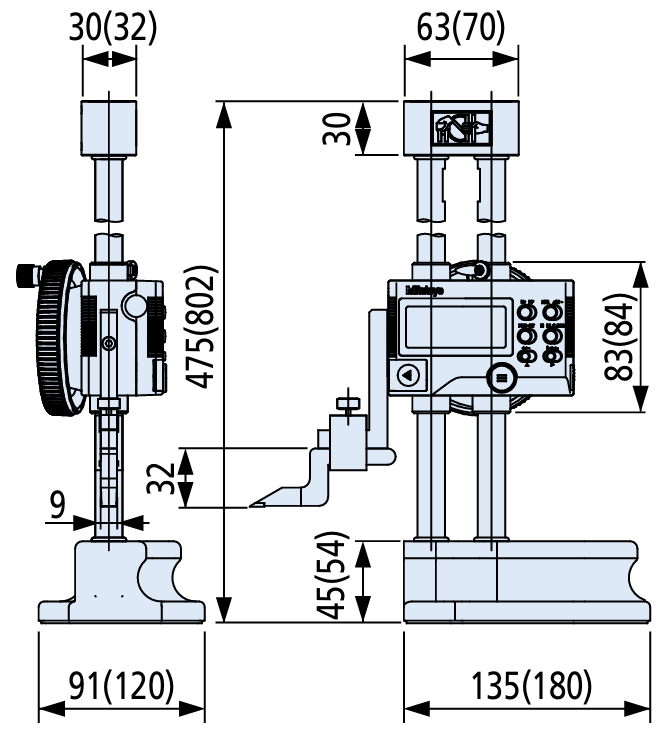

External dimensions (unit: mm)

Multi-function type with Digimatic output, a bidirectional touch signal probe can be used

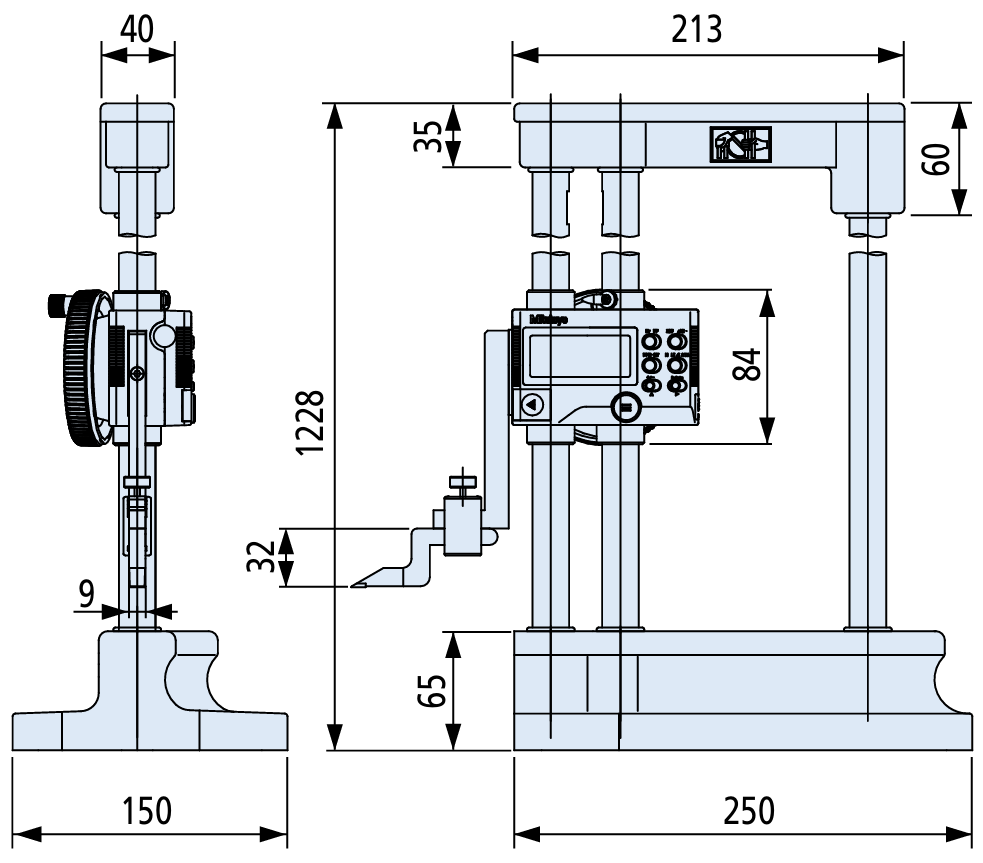

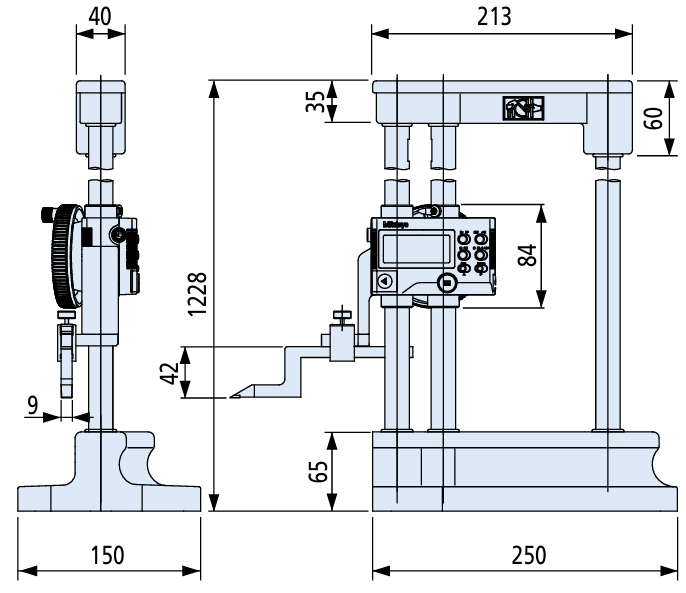

External dimensions (unit: mm)
