CREAFORM - HandySCAN3D : Black Series เครื่องมืออุตสาหกรรม เครื่องมือช่าง เครื่องมือวัดละเอียด

The HandySCAN 3DTM line-up is the industry standard in portable metrology-grade 3D scanners and a proven and trusted patented technology.
Optimized to meet the needs of design, manufacturing and metrology professionals, the BLACK Series provides the most effective and reliable way to acquire accurate 3D measurements of physical objects anywhere.

Portable, accurate and simple to use, the HandySCAN 3D|BLACK Series features unmatched speed that captures high-quality measurements. Since it performs regardless of environment changes or part movement, it represents the ideal tool for quality assurance and product development applications.

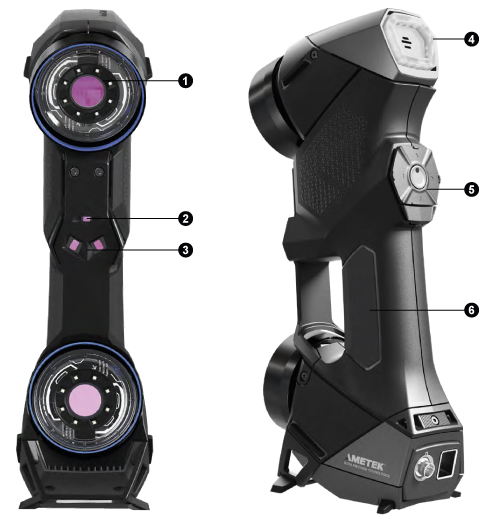

High-performance optics
Optimal scan quality
Extra single line
Easy capture of hard-to-reach areas
Blue laser technology
High resolution capability
Stand-off distance color indicator
Maximizes scanning performance
Multifunction buttons
Quick access to frequently used software functionalities
Highly ergonomic and sleek design
Provides outstanding user experience

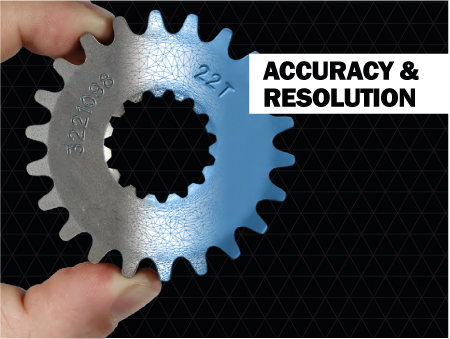

	The HandySCAN 3D\|BLACK Series delivers accurate, high-resolution and repeatable results, regardless of the measurement setup quality and no matter the user experience. Featuring dynamic referencing, both the scanner and part can move during measurement and still provide an accurate and high-quality scan. Accuracy 0.025 mm (0.0009 in) 0.012 mm (0.0005 in) with Limited Edition Volumetric accuracy 0.020 + 0.040 mm/m (0.0008 in + 0.0005 in/ft) 0.012 + 0.020 mm/m (0.0005 in +0.0002 in/ft) with Limited Edition Reliable acceptance test Based on VDI/VDE 2634 part 3 standard ISO 17025 accredited laboratory High resolution for fine details High accuracy on large measurements Integrated photogrammetry process and bundle adjustment optimisation Integrated photogrammetry High accuracy on large measurements with volumetric accuracy optimization
This handheld 3D scanner is a stand-alone device that does not require a tripod nor any external tracking device to operate. Fitting in a small suitcase, it can be brought anywhere and used in any environmental conditions without affecting its performance. Lightweight 0.94 kg (2.1 lb) Dynamic referencing Both the object and scanner can be moved freely while scanning Fits into a suitcase Take it anywhere you need

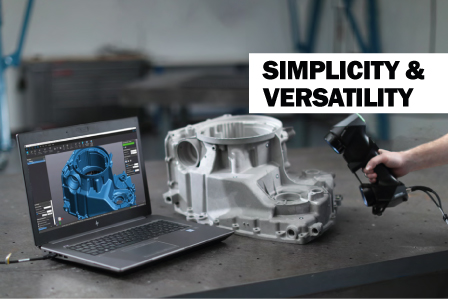

	With its user-friendly interface and ergonomic design, this 3D measurement solution has a short learning curve. Highly versatile, it can be used to scan various object sizes and surface types in real time—all with the same device. Plug and play Simple user interface and real-time mesh visualization Single device fits all needs Masters complex and difficult surfaces
The HandySCAN 3D\|BLACK Series scanner features multiple laser crosses and an automatic mesh generation, enabling a faster workflow from the set-up to the scan and then to the file! Instant mesh Ready-to-use files High measurement rate Up to 1,300,000 measurements/s 11 laser crosses scanning area Quick set-up Up and running in less than 2 minutes
