HandySCAN 3D  EVO Series

   Part of the HandySCAN 3D™ line-up, the industry standard in portable metrology-grade 3D scanners, the HandySCAN 3D|EVO Series™ features a powerful embedded graphical user interface (GUl) that enhances user experience and efficiency while delivering Creaform’s flagship metrology-grade qualities: proven reliability, renowned portability, and unmatched accredited accuracy.

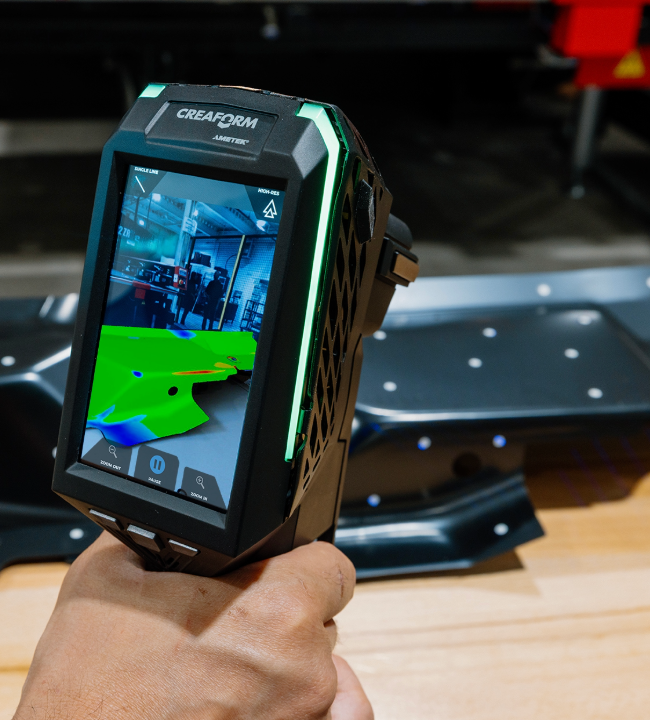

   By integrating augmented reality (AR) capability and a photo camera, the EVO Series further streamlines and enhances the inspection process—enabling QA and QC professionals to document part assessments better and faster, and execute workflows with greater efficiency.

   The HandySCAN3D|EVO Series also offers wireless
capability and a robust 3D metrology software platform—providing a fully integrated solution, redefining ease of use, and empowering new users to quickly master the technology, all while also meeting the needs of the most advanced users

  Wireless capability & live 3D visualization

       Optimized use in hard-to-reach environments

  Future-ready technology

       Ongoing evolution via Creaform.OS updates

  Made in North America

       Worldwide customer support

Powerful, Intuitive Software for Optimal User Experience

Creaform.OS™  is a powerful, integrated operating software that provides the best 3D measurement experience across all Creaform systems.Featuring an intuitive interface, user-friendly tools, embedded content, and learning tutorials, the platform is designed to streamline onboarding for new users and overcome a lack of experience, ensuring they can fully leverage the capabilities of their 3D scanners and optical CMMs

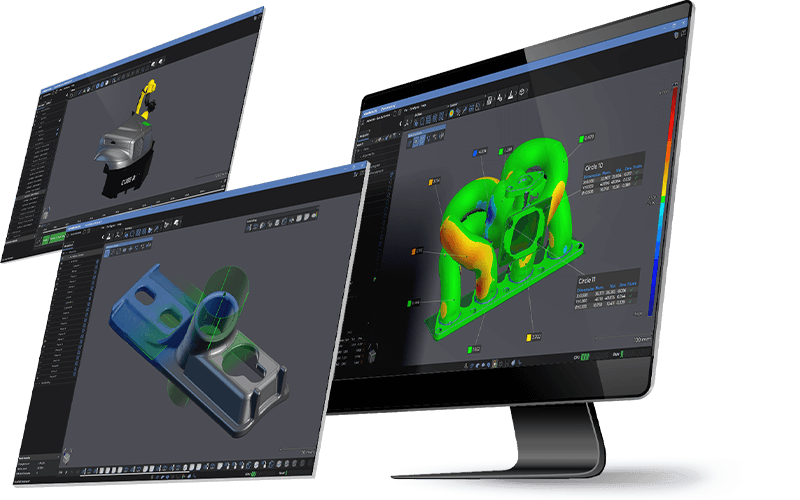

Creaform Metrology Suite™ provides a comprehensive portfolio of application software modules designed for any
metrology task.

  • Scan-to-CAD
    The most intuitive reverse engineering toolkit for transferring data extracted from 3D scans to any CAD platform.
  • Inspection
    Comprehensive and powerful software designed for efficient
    and accurate dimensional inspections.
  • Automation
    The most user-friendly and integrated programming platform
    for deploying automated quality control solutions.
  • Dynamic Tracking
    Enables simultaneous position and orientation of
    multiple objects in space and time



Technical Specifications HandySCAN EVO|Elite™
Accuracy 0.020 mm (0.0008 in)0.015 mm (0.0006 in)(1)
Volumetric Accuracy (based on part size) 0.020 mm + 0.020 mm/m (0.0008 in + 0.00024 in/ft)0.020 mm + 0.015 mm/m (0.0008 in + 0.00018 in/ft)(2)0.015 mm + 0.015 mm/m (0.0006 in + 0.00018 in/ft)(1)(2)
Acceptance Test (3) Based on ISO 10360

Measurement Capabilities

(at a working distance of 0.3 m / 1 ft)

Pin: 0.750 mm (0.0295 in)

Hole: 1.250 mm (0.0492 in)

Step: 0.025 mm (0.0010 in)Wall: 0.500 mm (0.0197 in)
Light Source (4) 46 blue laser lines (+1 extra line) + laser pointer
Scanner Controls 4.3” touchscreen display and physical buttons
Photo Camera 12 MP, AR-enabled
Real-Time Calibration Included
Automatic Alignment & Clean-Up Included
Working Distance 200 to 750 mm (7.9 to 29.5 in)
Weight 1.04 kg (2.3 lb)
