NEW LEVELNIC SERIES - DIGITAL PROTRACTORS
High-spec and compact. Rugged enough for on-site use.
Digital protractors designed with customer needs in mindare finally complete!
7 key features
| Highest precision ±0.003° | Exceptional durability | |
| Lineup of precision ranging from ±0.05°to ±0.003° to meet various customer needs |
・Ingress Protection rating ※DP-45XYS, DP-80XYH DP-90XYM |
|
| Proprietary advanced control technology | Humidity Vibration Shock | |
| A fusion of multiple measurement control techniques from various engineering perspectives. Incorporates a completely original control theory never seen before. |
・IEC/JIS compliant vibration and shock resistance ※DP-45XYS, DP-80XYH DP-90XYM |
|
| Static electricity | ||
| ・High electrostatic resistance |
| Excellent Visibility LCD | Multiple communication interfaces supported | |
|
・2.8-inch color LCD display（Resistive touch panel） ・IPS structure for 360°high visibility ※Excluding DP-60XYB |
RS-232C, ※Custom options available for |
|
| Fast charging Function USB-C | Long continuous use | |
| Charge time : 1.5 hours ※DP-45XYS，DP-80XYH，DP-90XYM Charge time : 2 hours ※DP-60XYB |
・12 hours : DP-45XYS DP-80XYH ・10 hours : DP-90XYM ・ 8 hours : DP-60XYB |
Fully customizable to your needs.
Feel free to consult us for specific requirements.
Specifications
|

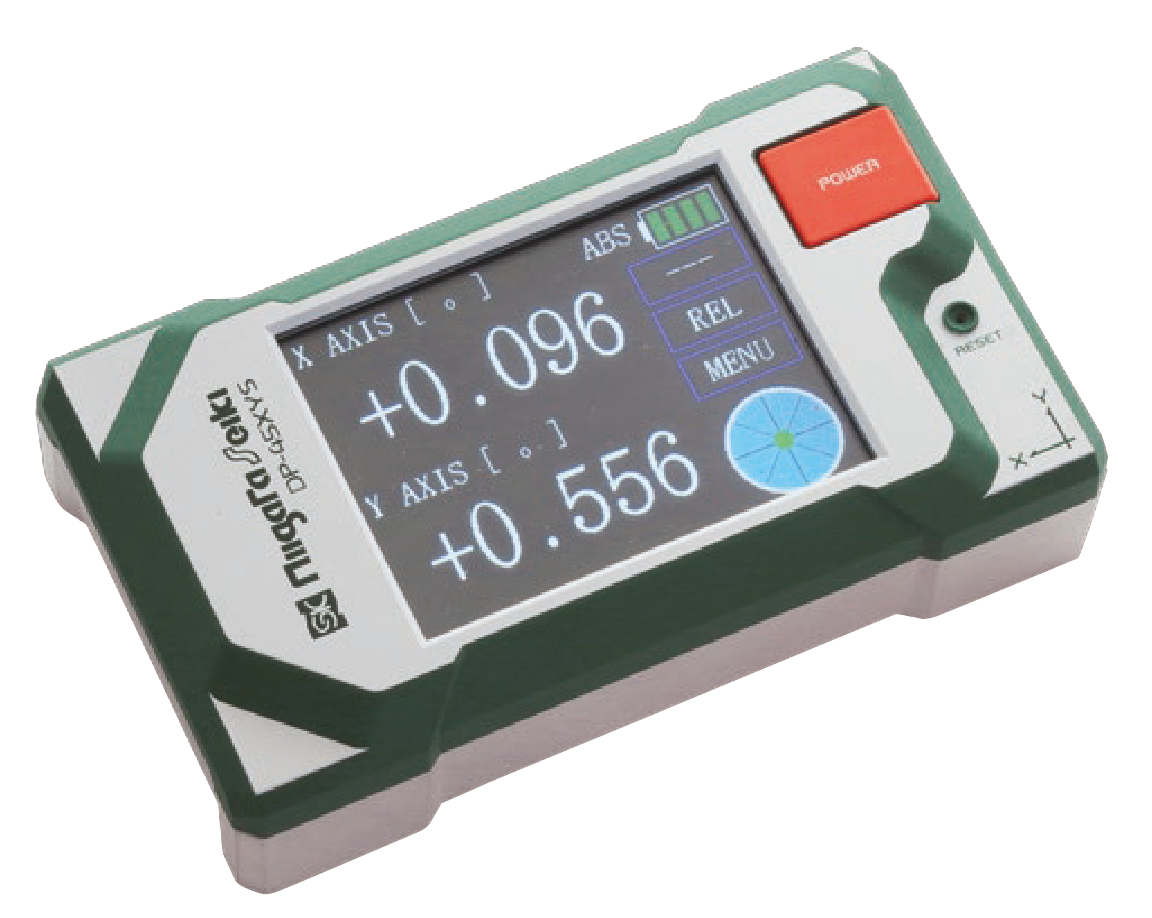

DP-45XYS |
Measuring range ：±45° Min. reading ：0.001°（0.01mm/m） Reeding accuracy ：±0.003°（Angle range： 0.000°～20.000°） ±0.006°（Angle range：20.001°～45.000°） Communication interface ：RS-232C（RS-485,UART,CAN） Wireless interface ：Bluetooth（Wi-Fi） Display ：2.8-inch color LCD（Resistive touch Panel）360°high visibility with IPS structure |
lngress Protection rating ：I P 5 4 Vibration resistance ：IEC/JIS C60068-2-6 Compliant Shock resistance ：IEC/JIS C60068-2-27 Compliant Power supply ：Lithium polymer battery（built-in） Continuous use time ：12 hours Charging time ：1.5 hours ※Equipped with fast charging function Dimensions ：L115×W66×H40mm Order No. ：010109 |
|

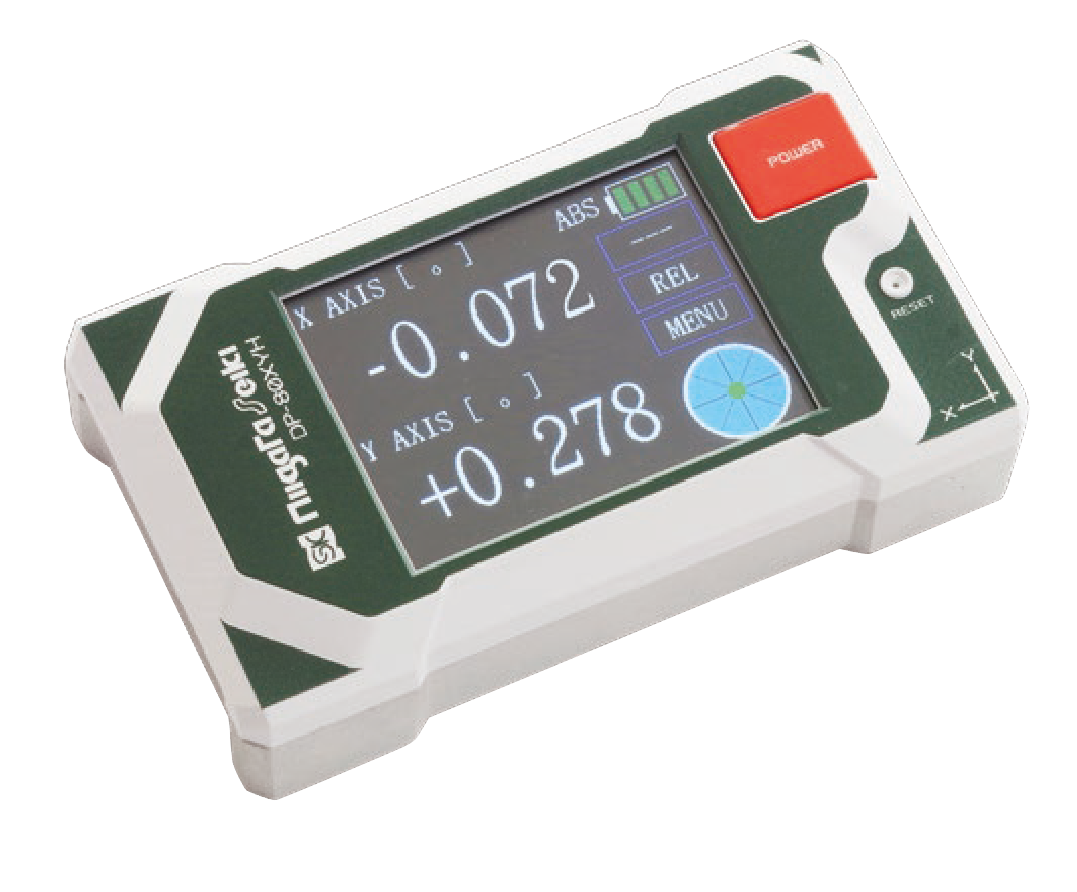

DP-80XYH |
Measuring range ：±80° Min. reading ：0.001°（0.01mm/m） Reeding accuracy：±0.005°（Angle range： 0.000°～20.000°） ±0.008°（Angle range：20.001°～40.000°） ± 0.01°（Angle range：40.001°～80.000°） Communication interface ：RS-232C（RS-485,UART,CAN） Wireless interface ：Bluetooth,Wi-Fi Display ：2.8-inch color LCD（Resistive touch Panel）360°high visibility with IPS structure |
lngress Protection rating ：IP54 Vibration resistance ：IEC/JIS C60068-2-6 Compliant Shock resistance ：IEC/JIS C60068-2-27 Compliant Power supply ：Lithium polymer battery（built-in） Continuous use time ：12 hours Charging time ：1.5 hours ※Equipped with fast charging function Dimensions ：L115×W66×H40mm Order No. ：010108 |
|

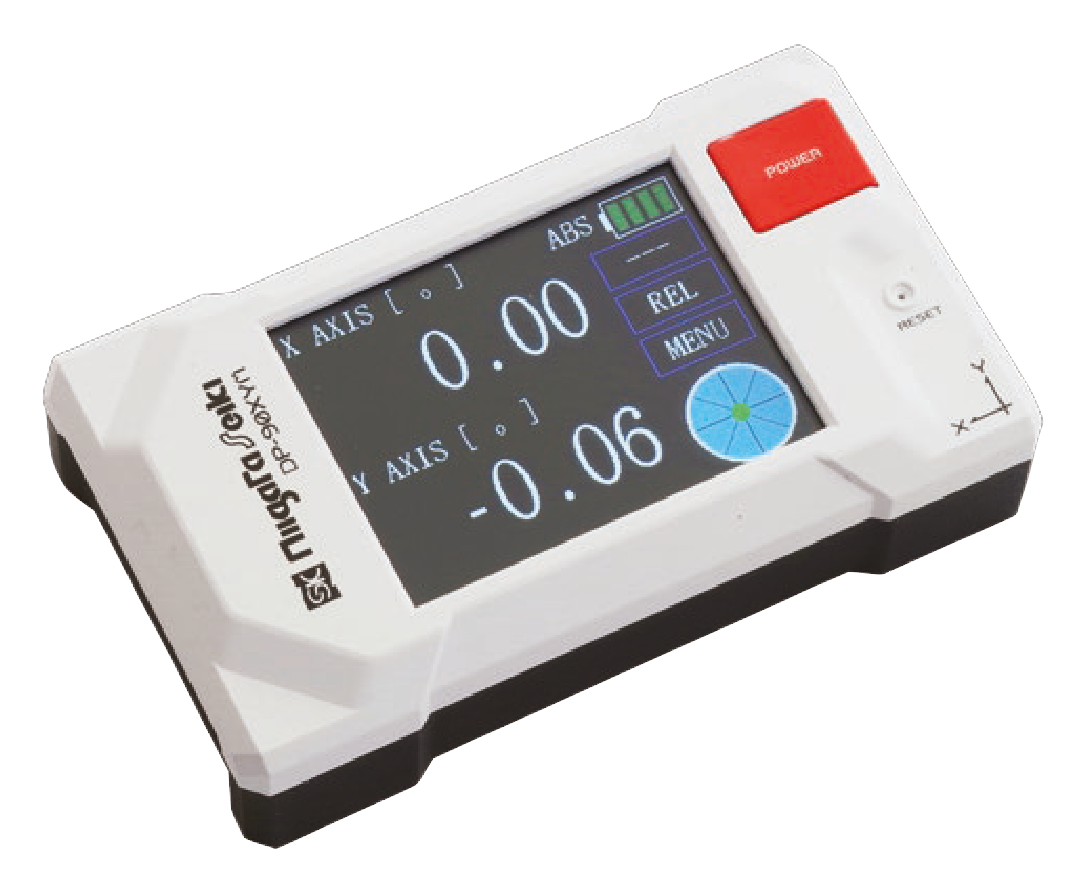

DP-90XYM |
Measuring range ：±90° Min. reading ：0.01°（0.1mm/m） Reeding accuracy：±0.03°（Angle range： 0.00°～ 2 0 . 0 0 °） ±0.06°（Angle range：20.01°～ 4 0 . 0 0 °） ±0.09°（Angle range：40.01°～90.00°） Communication interface ：RS-232C（RS-485,UART） Wireless interface ：Bluetooth,Wi-Fi Display ：2.8-inch color LCD（Resistive touch Panel）360°high visibility with IPS structure |
Ingress Protection rating ：IP54 Vibration resistance ：IEC/JIS C60068-2-6 Compliant Shock resistance ：IEC/JIS C60068-2-27 Compliant Power supply ：Lithium polymer battery（built-in） Continuous use time ：10 hours Charging time ：1.5 hours ※Equipped with fast charging function Dimensions ：L115×W66×H32mm Order No. ：010107 |
|

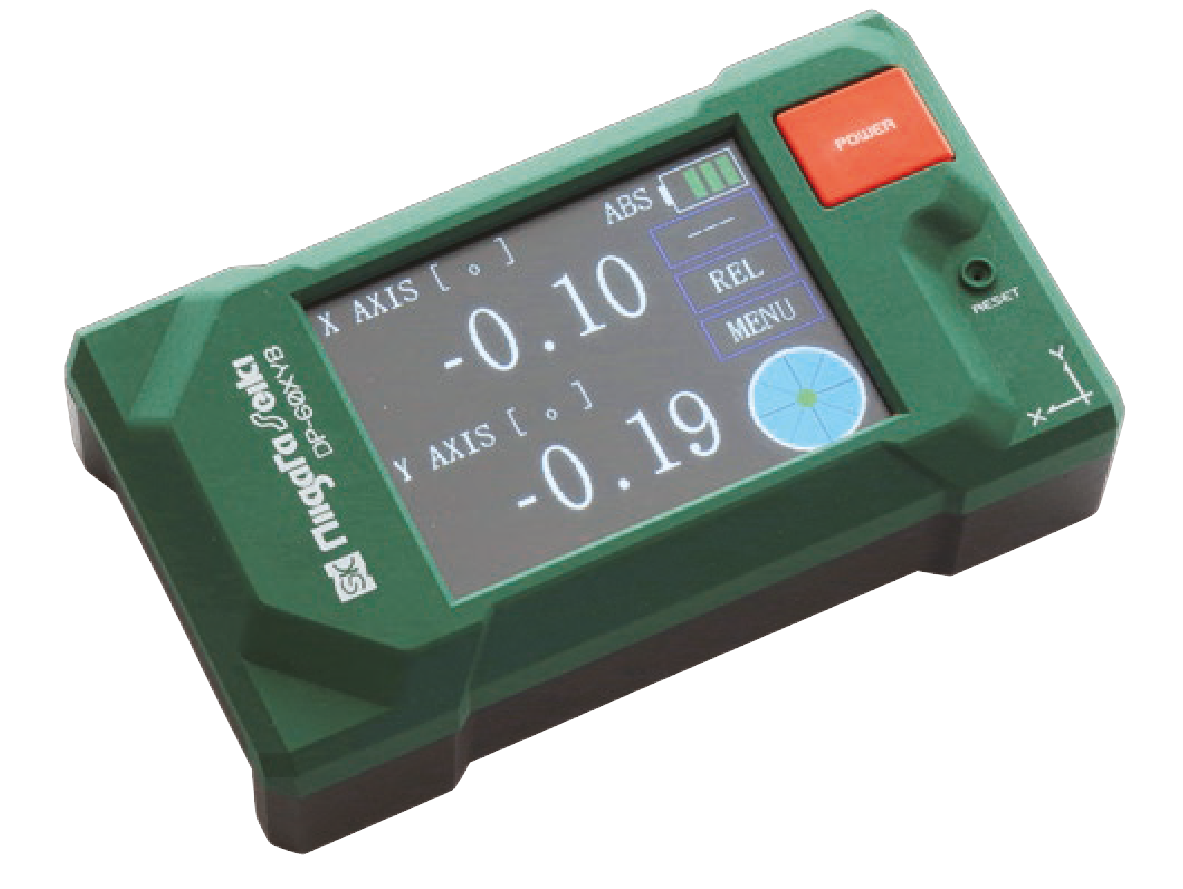

DP-60XYB |
Measuring range ：±60° Min. reading ：0.01°（0.1mm/m） Reeding accuracy ：±0.05°（Full measurement range） Communication interface ：RS-232C（RS-485,UART） Wireless interface ：Bluetooth,Wi-Fi Display ：2.8-inch color LCD（Resistive touch Panel） Power supply ：Lithium polymer battery（built-in） Continuous use time ：8 hours Charging time ：2 hours Dimensions ：L115×W66×H32mm Order No. ：010106 |
Common features Simultaneous measurement of X and Y axes（XY orthogonal accuracy：±1%） |
