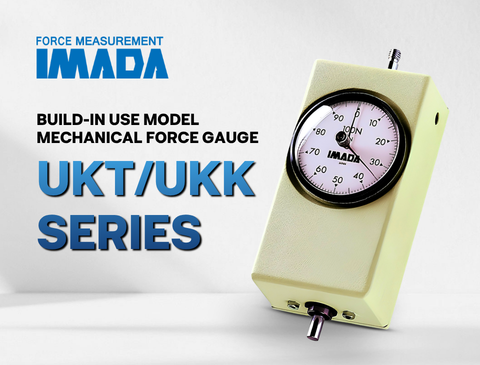

Build-in Use Model Mechanical Force Gauge UKT/UKK series

Ideal for build-in equipment due to the compact design.
UKT for tension test and UKK for compression test.
Shows real time value and peak value simultaneously with memory pointer.
Capable to delete the attachment’s weight by rotating the tare ring.
Rugged design and no need for electricity.

Testing images
Fix the force gauge and start measurement.	The red pointer holds at the peak value.	Turn the center screw to adjust the red pointer back to zero.

Main Functions

UKT series for tension only	・Tension measuring shaft (UKT) Measure tension forces with the supplied attachments such as small hook, large hook and Y hook.	UKK series for compression only
	・Memory pointer The red pointer stops at the peak value.
	・Tare ring Rotate the tare ring to delete the attachment weight or error cause by position.
	・Compression measuring shaft (UKK) Measure compress force with the supplied attachments such as flat tip, conical tip, chisel tip and notched tip.

Specifications
Model	UKT	UKK
Stroke	10mm
Measuring units	See [Model lists]
See [Model lists]	Real time/Peak hold (Memory pointer type)
Scales *1	100 lines
100 lines	Accuracy
Accuracy	±0.3%F. S or less
Operating environment	0~+40℃

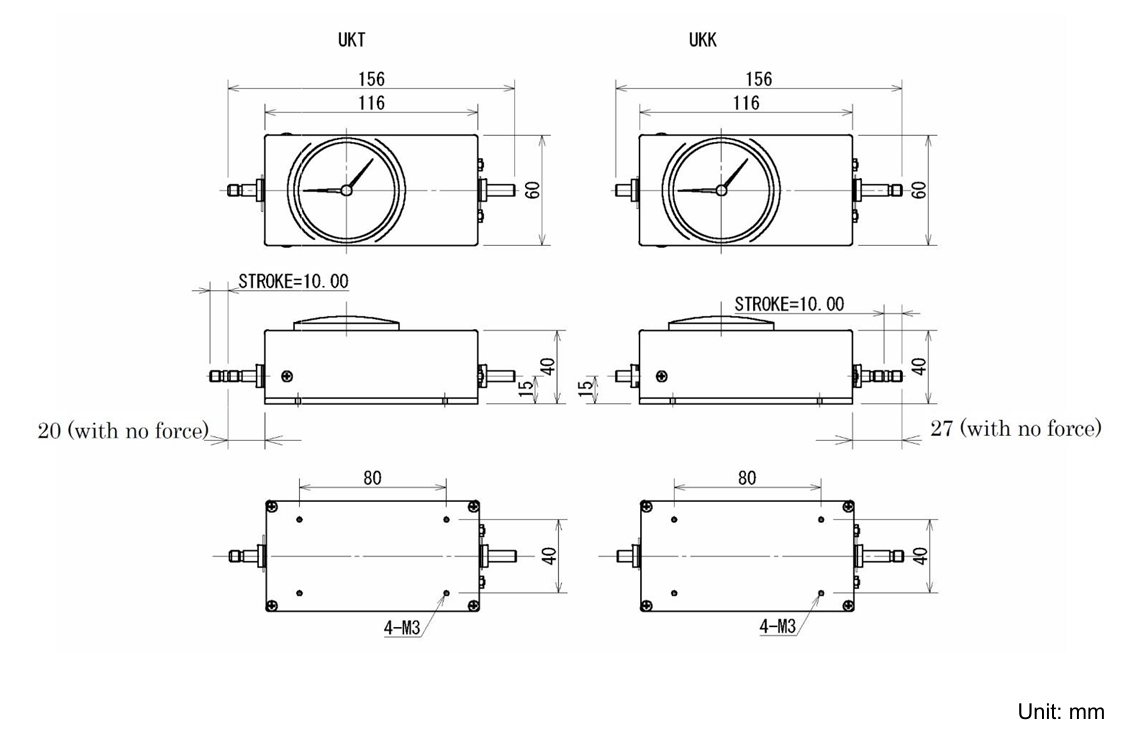

Dimension	See [Dimension]
Weight *2	Approx. 300g
Standard accessories	4 pcs of tension attachments, tnstruction manual, Carry case,lnspection certificate etc.	5 pcs of compression attachments, lnstruction manual, Carry case,lnspection certificate etc.

* It is not suitable for breaking test with large impact or test with continues vibration due to its spring structures.
*1 120 lines for 30N, 300N, 3K, 30K, 30lb.
*2 The weight is depending on the range.
